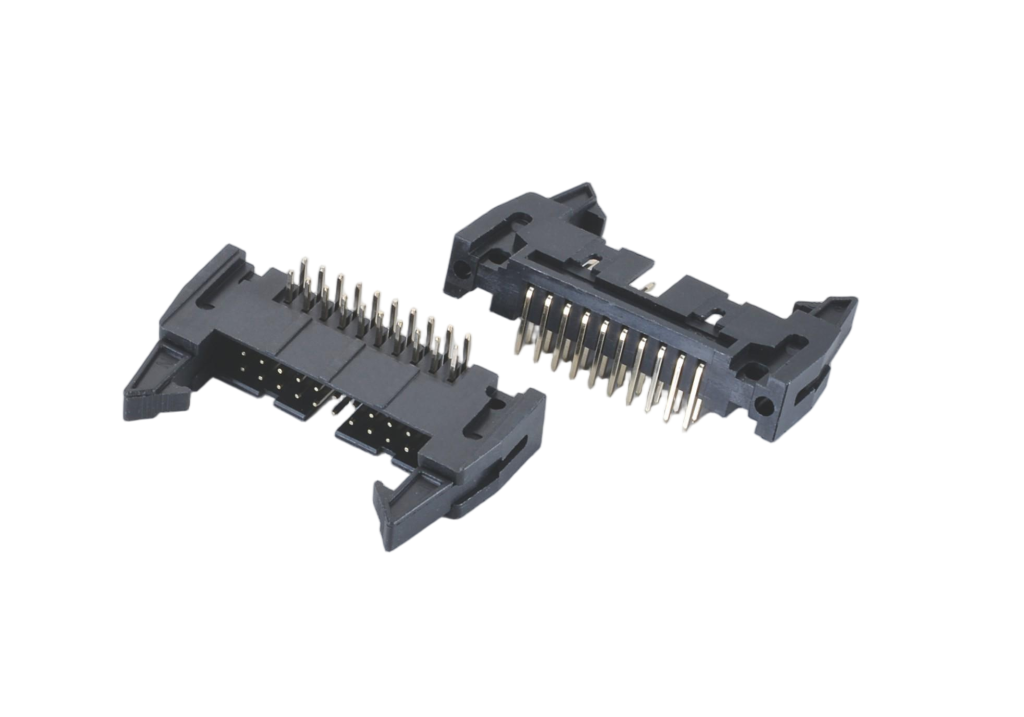

Polarized right angle box header 2.54mm 0.100inch ptich for automotive electronics

The 2.54mm Dual Row Right Angle Box Header, with an 8.9mm housing height, is designed for high-reliability, space-constrained PCB applications. Its 90-degree horizontal orientation facilitates side-entry cable connections, effectively minimizing the vertical footprint of the electronic assembly.

Encased in a protective shroud with a central polarization slot, this header ensures precise alignment and prevents mismating with IDC ribbon cable connectors. As the industry-standard choice, it is ideal for applications in Industrial Controls, Computing Peripherals, and Telecommunications Systems, where horizontal wire-to-board interconnects are essential.

Key Features

• 0.100" (2.54mm) pitch for standard PCB layouts
• Customize pins, pitch,height,length
• Compliance with REACH, ISO, RoHS
• High Signal Integrity: Precision-engineered contacts provide reliable electrical performance for high-speed signal and data transmission.
• Fully automated production for consistent quality
• 100% CCD visual inspection to ensure defect-free products
