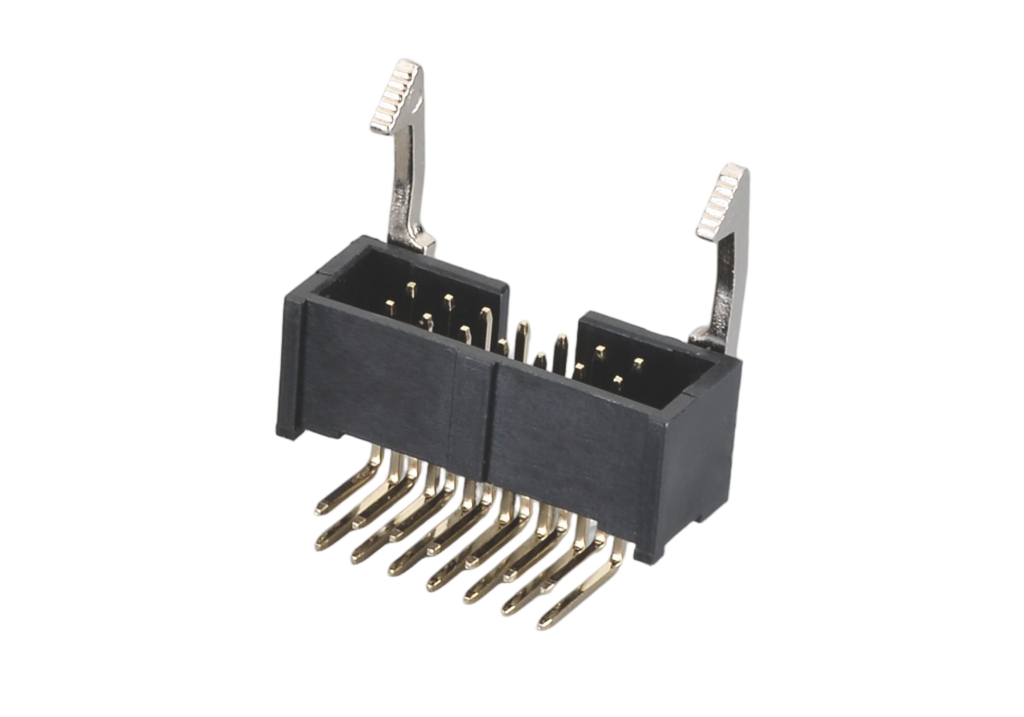

2.54mm 0.100inch pitch horizontal shrouded male header for industrial PLC
2.54mm 0.100inch pitch horizontal shrouded male header for industrial PLC
Product Specifications
Rated Current3.0A AC/DC
Insulator Resist ance5000 Megohms Min
Dielectric Withs tandingAC 1000 V
No. of Positions4-100PIN
OrientationVertical
Contact MaterialCopper Alloy
Insulator MaterialOptional:PA6T;PA9T
Flame RatingUL 94V-0
Plating OptionTin；Gold
Insulator High8.9mm
Product Description
The 2.54mm Dual Row Right Angle Box Header, with an 8.9mm housing height, is specifically designed for high-reliability, space-constrained PCB applications. Its horizontal 90-degree DIP orientation enables side-entry cable connections, effectively minimizing the overall height of the electronic module.
This header features a robust four-walled shrouded design and an integrated polarization slot, ensuring secure, error-proof mating with IDC ribbon cable sockets. Ideal for applications where horizontal cable routing is crucial, it is the preferred interconnect solution in Industrial Automation, Telecommunications, and Embedded Computing.
Key Features
- 0.100" (2.54mm) pitch for standard PCB layouts
- Customize pins, pitch,height,length
- Compliance with REACH, ISO, RoHS
- High Signal Integrity: Precision-engineered contacts provide reliable electrical performance for high-speed signal and data transmission.
- Fully automated production for consistent quality
- 100% CCD visual inspection to ensure defect-free products
