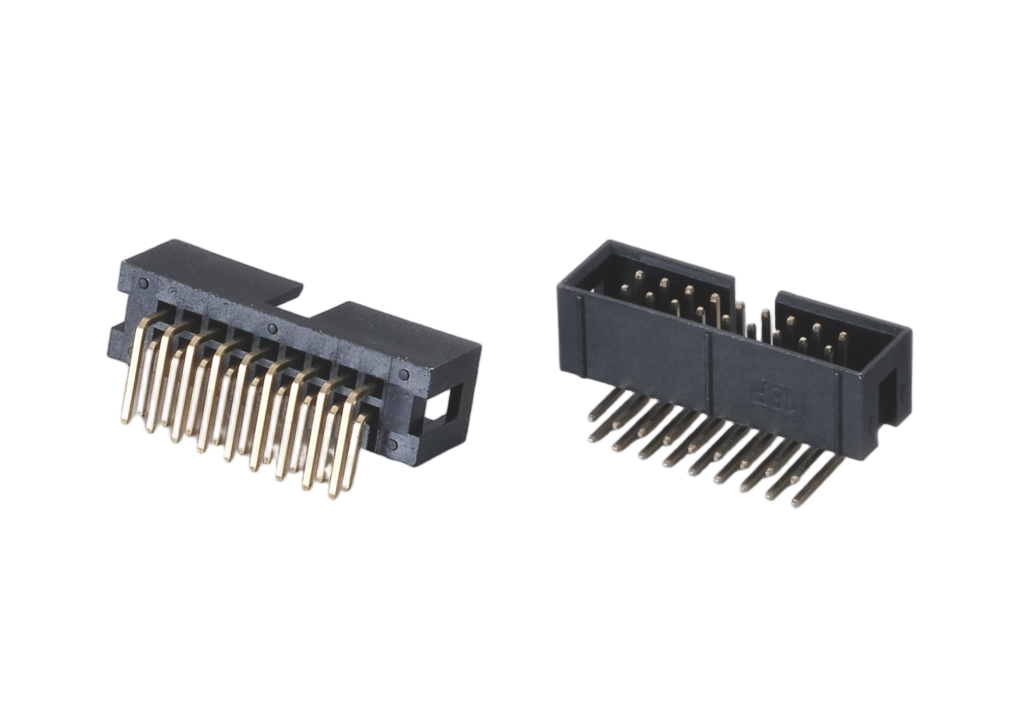

2.54 mm 0.100inch pitch Box Header Dual Row Right Angle Vertical DIP Height 8.9mm for Network Switches

The 2.54mm Pitch Box Header is a versatile and reliable connector designed to ensure secure board-level interconnections, particularly in demanding applications. This dual-row male header is equipped with a durable plastic "box" shroud that not only shields the contact pins from physical damage but also guarantees proper polarization when mated with IDC (Insulation Displacement Contact) socket connectors.

Available in both straight and right-angle configurations, this connector supports a wide range of pin counts, from 4 pins to 80 pins, making it adaptable to various system designs. The robust construction and shrouded design ensure that the header maintains excellent contact integrity, even in environments subject to vibration, shock, and mechanical stress.

The 2.54mm Pitch Box Header is widely used in Industrial Automation, Telecommunications, and Embedded Systems, where signal integrity and reliable connections are paramount. Whether in control panels, networking devices, or embedded electronics, this connector provides a stable and secure interface for critical signal transmission.

Key Features

• 0.100" (2.54mm) pitch for standard PCB layouts
• Customize pins, pitch,height,length
• Compliance with REACH, ISO, RoHS
• High Signal Integrity: Precision-engineered contacts provide reliable electrical performance for high-speed signal and data transmission.
• Fully automated production for consistent quality
• 100% CCD visual inspection to ensure defect-free products
