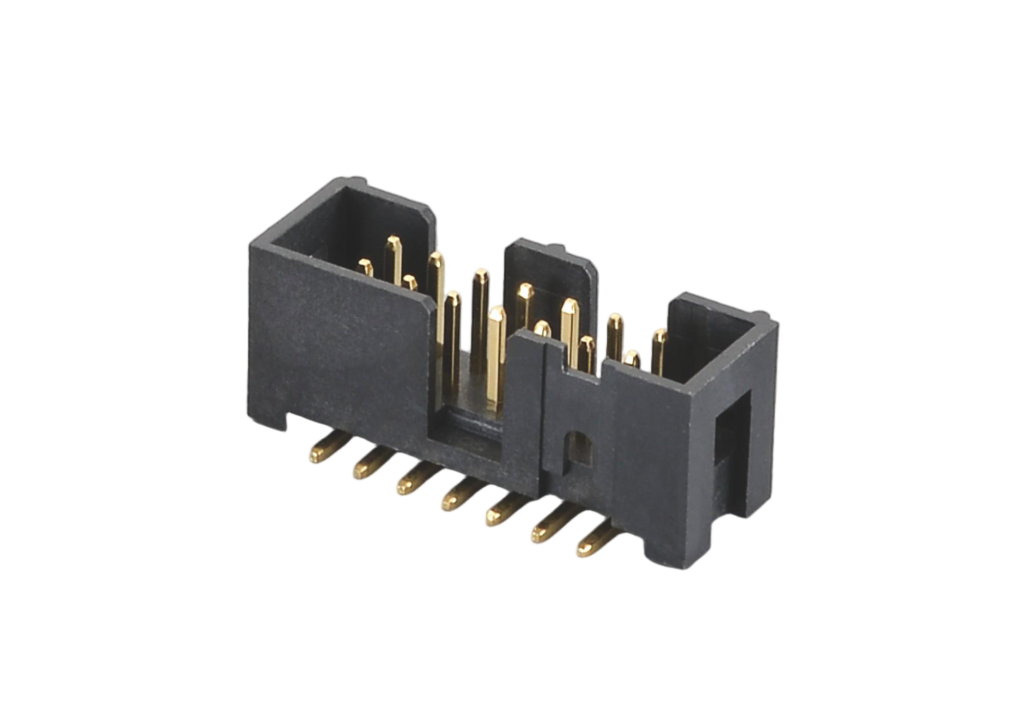

9.8mm height shrouded header 2.54mm 0.100inch pitch box header for server motherboard
9.8mm height shrouded header 2.54mm 0.100inch pitch box header for server motherboard
Product Specifications
Rated Current3.0A AC/DC
Insulator Resist ance5000 Megohms Min
Dielectric Withs tandingAC 1000 V
No. of Positions4-100PIN
OrientationVertical
Contact MaterialCopper Alloy
Insulator MaterialOptional:PA6T;PA9T
Flame RatingUL 94V-0
Plating OptionTin；Gold
Insulator High9.8mm
Product Description
The 2.54mm Dual Row SMD Box Header, featuring a 9.8mm housing height, is specifically designed for high-density, automated PCB assembly. This surface-mount (SMT) shrouded connector is built with a robust four-walled structure and incorporates a central polarization notch, ensuring precise alignment and preventing mismating with IDC cable sockets.
Optimized for high-reliability applications, it excels in environments such as server hardware, industrial automation, and telecommunication systems. The 9.8mm profile provides essential clearance and mechanical stability, making it ideal for critical board-to-wire interconnections.
Key Features
- 0.100" (2.54mm) pitch for standard PCB layouts
- Customize pins, pitch,height,length
- Compliance with REACH, ISO, RoHS
- High Signal Integrity: Precision-engineered contacts provide reliable electrical performance for high-speed signal and data transmission.
- Fully automated production for consistent quality
- 100% CCD visual inspection to ensure defect-free products
