Extract Pin Box Header Add Plastic 2.54 mm 0.100inch pitch DIP Vertical for Home security panels
Extract Pin Box Header Add Plastic 2.54 mm 0.100inch pitch DIP Vertical for Home security panels
Product Specifications
Rated Current3.0A AC/DC
Insulator Resist ance5000 Megohms Min
Dielectric Withs tandingAC 1000 V
No. of Positions4-80PIN
OrientationVertical
Contact MaterialCopper Alloy
Insulator MaterialOptional:PA6T;PA9T
Flame RatingUL 94V-0
Plating OptionTin；Gold
Insulator High6.4mm
Product Description

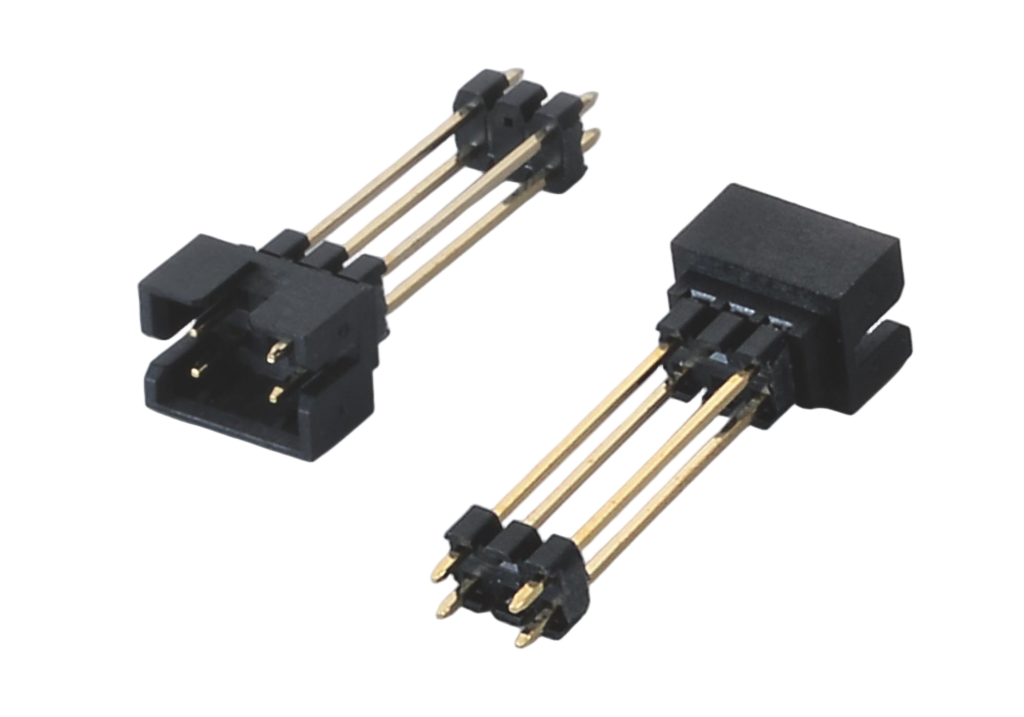

The 2.54mm Pitch Box Header with a 6.4mm plastic housing and extended extract pins is specifically engineered for board-to-board stacking and high-reliability signal distribution in specialized applications. The unique "Extract Pin" design offers additional pin length either below or above the insulator, making it an ideal solution for multi-layer PCB stack-ups, where standard headers fall short.
Encased in a protective shrouded "box" featuring a central polarization slot, this connector ensures secure, damage-free mating with IDC ribbon cable connectors. It also provides outstanding mechanical stability, making it particularly suited for demanding industrial and server environments.
Key Features
- 0.100" (2.54mm) pitch for standard PCB layouts
- Customize pins, pitch,height,length
- Compliance with REACH, ISO, RoHS
- High Signal Integrity: Precision-engineered contacts provide reliable electrical performance for high-speed signal and data transmission.
- Fully automated production for consistent quality
- 100% CCD visual inspection to ensure defect-free products
