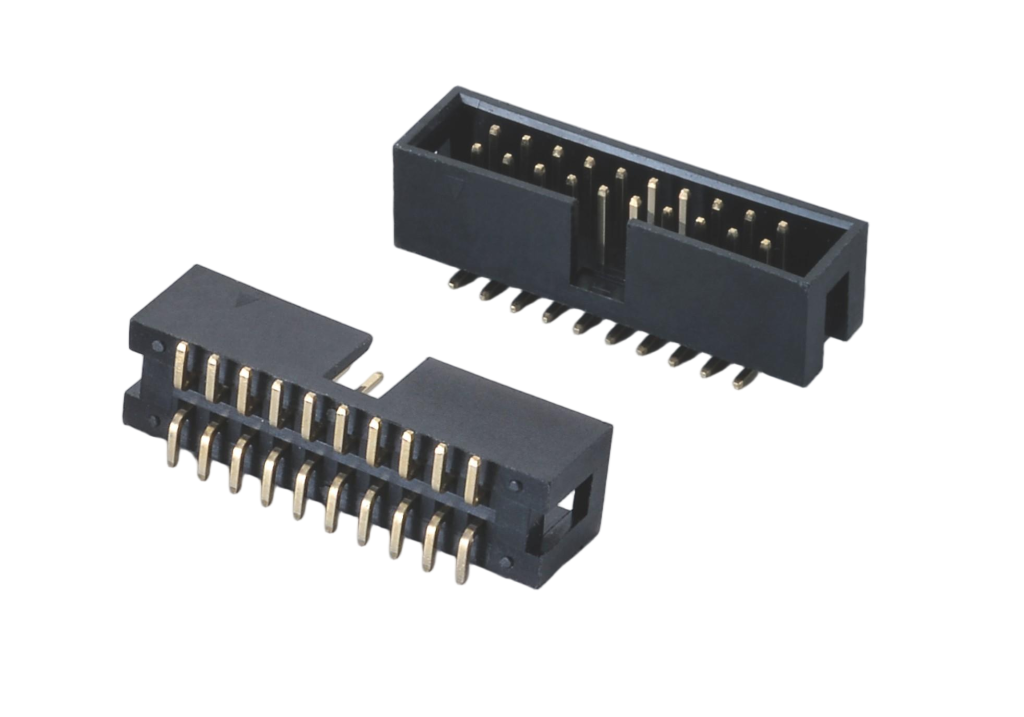

2.54 mm 0.100inch pitch Box Header Dual Row SMD Vertical Height 8.9mm for Inverter Control Boards
2.54 mm 0.100inch pitch Box Header Dual Row SMD Vertical Height 8.9mm for Inverter Control Boards
Product Specifications
Rated Current3.0A AC/DC
Insulator Resist ance5000 Megohms Min
Dielectric Withs tandingAC 1000 V
No. of Positions4-80PIN
OrientationVertical
Contact MaterialCopper Alloy
Insulator MaterialOptional:PA6T;PA9T
Flame RatingUL 94V-0
Plating OptionTin；Gold
Insulator High8.9mm
Product Description
YYE 2.54mm Pitch Box Header (also referred to as a Shrouded Header) offers a high-performance interconnection solution designed to ensure secure and reliable signal transmission. Its robust four-walled shroud, along with a central polarization notch, guarantees precise alignment and prevents mismated connections when used with IDC ribbon cable sockets.
With options for both Straight (Vertical) and Right Angle (Horizontal) configurations, this connector provides the flexibility needed for high-density PCB layouts. It is particularly suited for demanding environments in industrial automation, telecommunications, and power supply modules, where stable and efficient performance is critical.
Key Features
- 0.100" (2.54mm) pitch for standard PCB layouts
- Customize pins, pitch,height,length
- Compliance with REACH, ISO, RoHS
- High Signal Integrity: Precision-engineered contacts provide reliable electrical performance for high-speed signal and data transmission.
- Fully automated production for consistent quality
- 100% CCD visual inspection to ensure defect-free products
