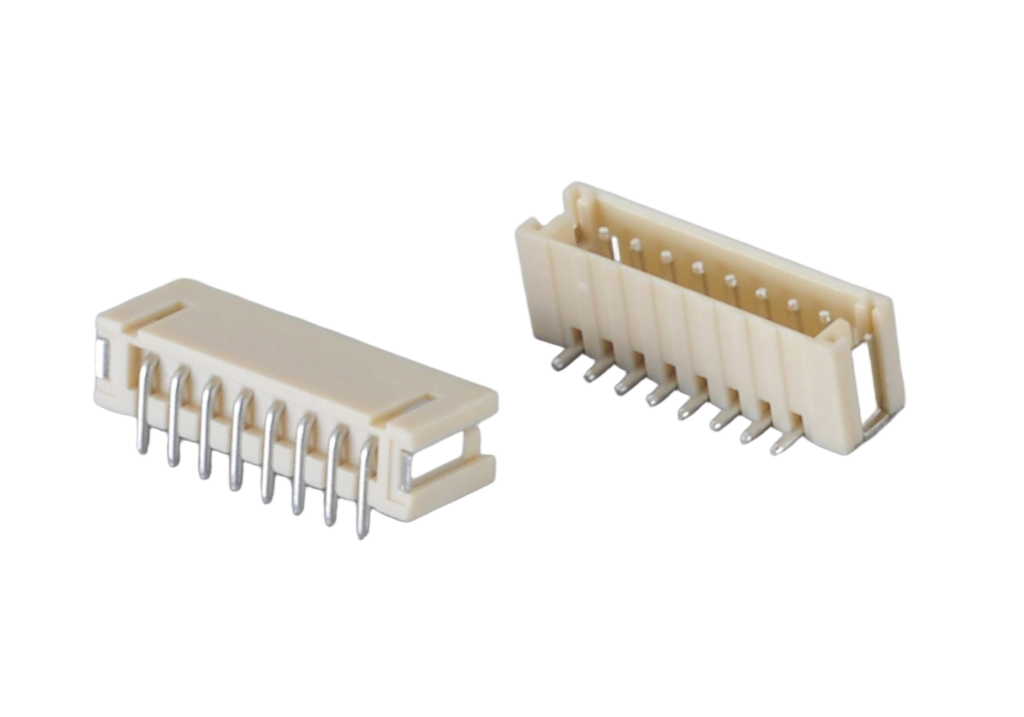

1.50mm 0.059 inch Pitch Top Entry SMD Horizontal Wafer Socket for Smart Home PCB
1.50mm 0.059 inch Pitch Top Entry SMD Horizontal Wafer Socket for Smart Home PCB
Product Specifications
Current Rating3 Amp
Insulator Resistance5000 Megohms Min
Dielectric WithstandingAC 1000 V
No. of Positions2-16Pin
OrientationHorizontal
Contact MaterialCopper Alloy
Insulator MaterialOptional: PBT,PA6T,PA9
Flame RatingUL 94V-0
Plating OptionTin, Gold,
Insulator HighOptional
Product Description
The 1.50mm Pitch Wafer Connector is an ultra-compact wire-to-board solution designed for miniaturized electronic devices where PCB space is extremely limited. Featuring a precision 1.50mm (0.059") pitch, these headers are ideal for high-density applications such as drones, robotic controllers, medical sensors, and portable consumer electronics. Available in both SMT and DIP mounting styles, this series offers the flexibility needed for modern automated assembly while maintaining a robust connection. The low-profile design and shrouded housing protect contact pins while providing reliable polarization for high-vibration portable device environments.
Key Features
- 0.059" (1.5mm) pitch for standard PCB layouts
- Customize pins, pitch,height,length
- Compliance with REACH, ISO, RoHS
- High Signal Integrity: Precision-engineered contacts provide reliable electrical performance for high-speed signal and data transmission.
- Fully automated production for consistent quality
- 100% CCD visual inspection to ensure defect-free products
