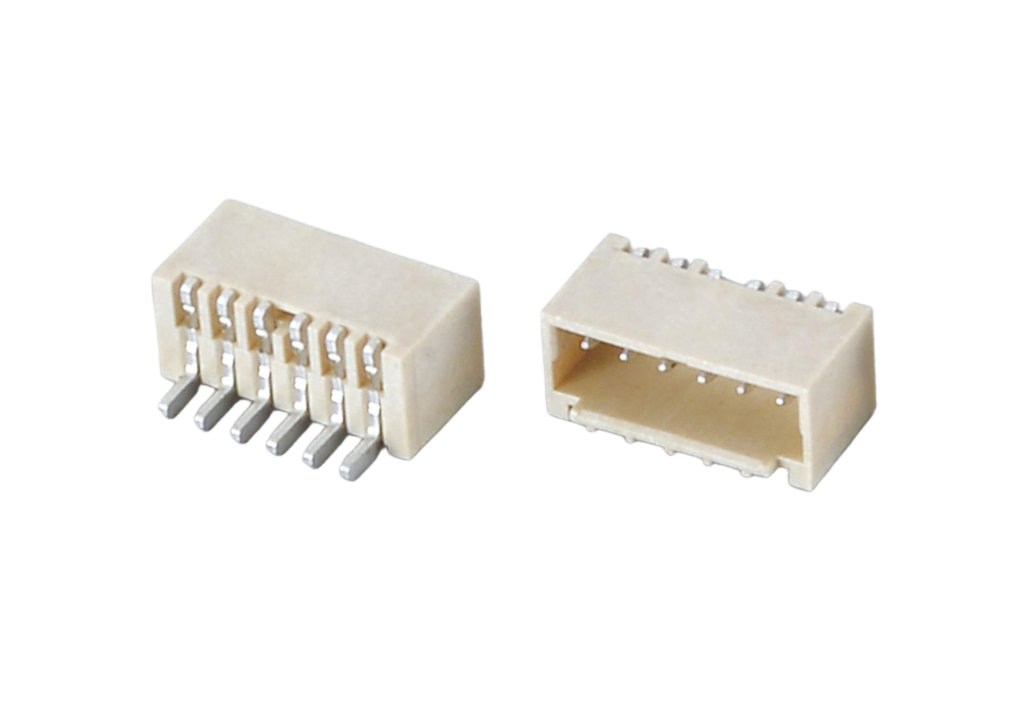

1.50mm 0.059 inch Wafer Socket Top Entry Horizontal SMT for Automotive Infotainment System
1.50mm 0.059 inch Wafer Socket Top Entry Horizontal SMT for Automotive Infotainment System
Product Specifications
Current Rating3 Amp
Insulator Resistance5000 Megohms Min
Dielectric WithstandingAC 1000 V
No. of Positions2-15Pin
OrientationVertical
Contact MaterialCopper Alloy
Insulator MaterialOptional: PBT,PA6T,PA9
Flame RatingUL 94V-0
Plating OptionTin, Gold,
Insulator HighOptional
Product Description
The 1.50mm Pitch Right Angle SMT Wafer Connector is a high-performance wire-to-board solution designed for applications requiring a balance between compact size and mechanical robustness. With a precise 1.50mm (0.059") pitch, this horizontal SMT header is perfect for automotive electronics, industrial control systems, and modern home appliances where low-profile routing is necessary. The side-entry design allows for wire harnesses to be connected parallel to the PCB, effectively reducing the overall height of the assembly in slim-line LED displays and medical monitoring devices. Engineered for automated high-volume production, its heat-resistant housing ensures reliable performance through lead-free reflow soldering cycles.
Key Features
- 0.059" (1.5mm) pitch for standard PCB layouts
- Customize pins, pitch,height,length
- Compliance with REACH, ISO, RoHS
- High Signal Integrity: Precision-engineered contacts provide reliable electrical performance for high-speed signal and data transmission.
- Fully automated production for consistent quality
- 100% CCD visual inspection to ensure defect-free products
