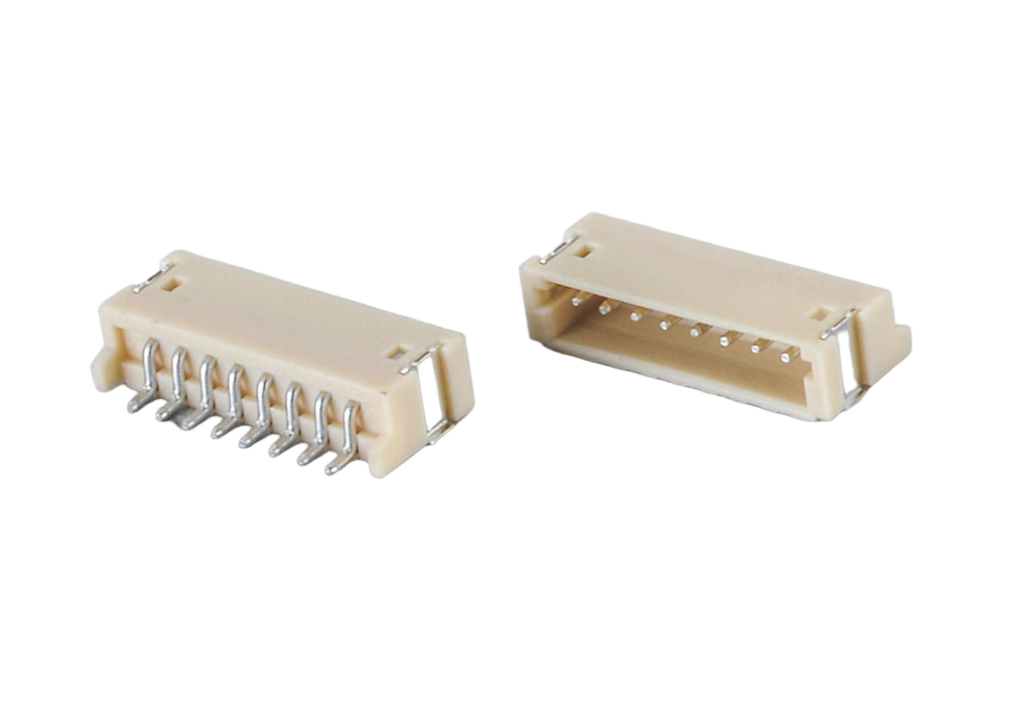

1.50mm 0.059 Pitch Wafer Socket Right Angle DIP for LED Display
1.50mm 0.059 Pitch Wafer Socket Right Angle DIP for LED Display
Product Specifications
Current Rating3 Amp
Insulator Resistance5000 Megohms Min
Dielectric WithstandingAC 1000 V
No. of Positions2-16Pin
OrientationVertical
Contact MaterialCopper Alloy
Insulator MaterialOptional: PBT,PA6T,PA9
Flame RatingUL 94V-0
Plating OptionTin, Gold,
Insulator HighOptional
Product Description
The 1.50mm Pitch Right Angle SMT Wafer Connector is a high-performance, low-profile wire-to-board solution engineered for modern electronic assemblies where space and reliability are paramount. Featuring a specialized 1.50mm (0.059") pitch, this horizontal SMT header provides a secure interface for signal and power in automotive interiors, industrial automation sensors, and smart home control systems. The side-entry SMT architecture allows for efficient wire routing parallel to the PCB, making it the ideal choice for slim LED panels and handheld medical devices. Designed for high-volume automated assembly, its heat-resistant housing ensures consistent performance through lead-free reflow soldering processes.
Key Features
- 0.059" (1.5mm) pitch for standard PCB layouts
- Customize pins, pitch,height,length
- Compliance with REACH, ISO, RoHS
- High Signal Integrity: Precision-engineered contacts provide reliable electrical performance for high-speed signal and data transmission.
- Fully automated production for consistent quality
- 100% CCD visual inspection to ensure defect-free products
