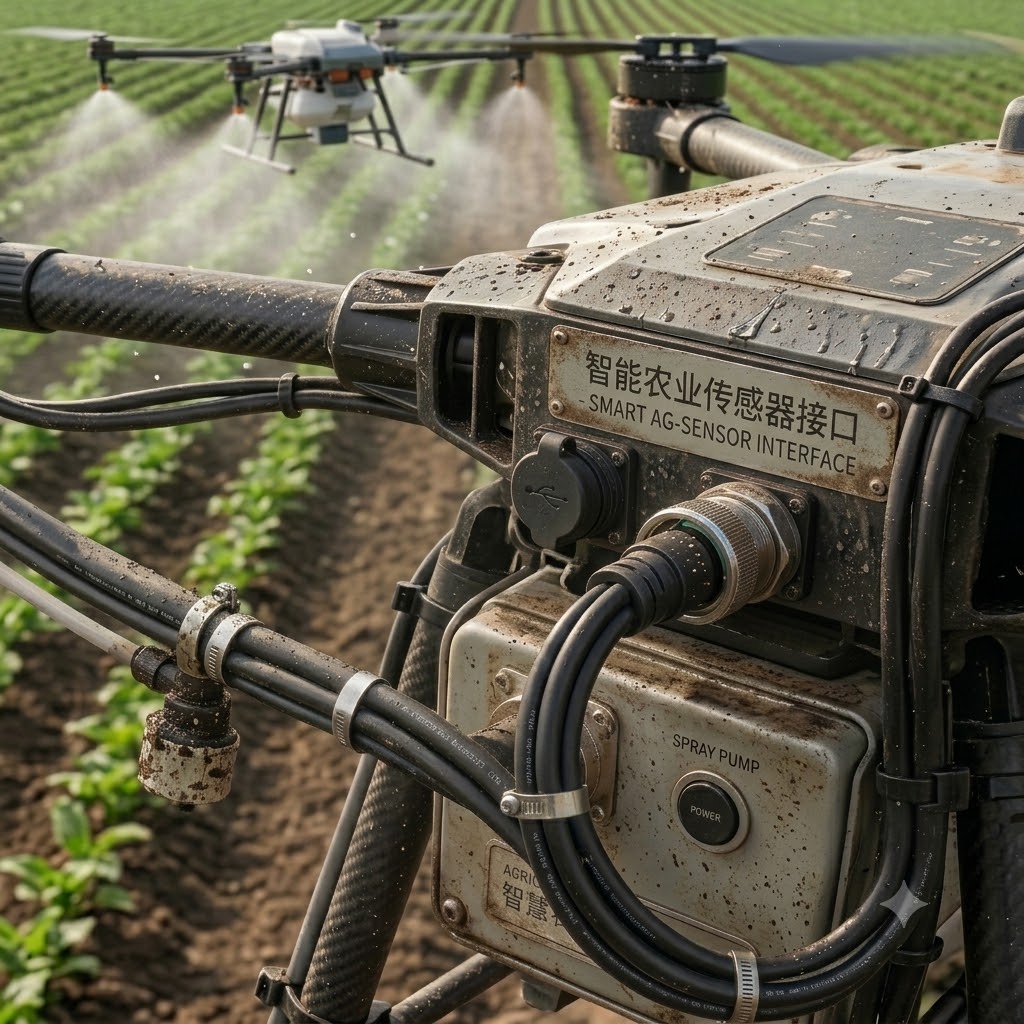

Waterproof Connector Design for Agricultural Electronics & Drones: Dust, Mud, and Chemical Resistance
Modern agriculture is undergoing a massive technological transformation. From autonomous tractors and smart irrigation systems to agricultural spraying drones, electronic systems are moving deeper into farm fields. However, operating in open farmland creates one of the most punishing environments for electronic interconnects.
Standard waterproof connectors often fall short in agricultural applications because moisture is not the only threat they face. Connectors must simultaneously withstand heavy mud, harsh pesticides, liquid fertilizers, intense UV exposure, and continuous mechanical vibration.
In this article, we’ll explore key design considerations for engineering high-reliability waterproof connectors and cable assemblies tailored for agricultural electronics and drones.
1. Beyond IP68: Navigating the Complexities of Agricultural Environments
When selecting connectors for outdoor equipment, engineers often prioritize an IP68 rating. While IP68 ensures protection against continuous submersion in water, agricultural applications demand even more robust performance.
Agricultural machinery and drones are frequently cleaned with high-pressure, hot-water power washers to remove caked-on dirt and chemical residues. Standard IP68 seals can fail under these intense hydraulic impacts. To ensure long-term connector integrity, follow these key guidelines:
Aim for IP69K Certification: Connectors rated for IP69K can resist high-pressure (up to 100 bar) and high-temperature (up to 80°C) close-range washdowns.
Account for Environmental Weathering: Seals must maintain flexibility across extreme thermal cycles, from freezing winter storage to scorching summer operations under direct sunlight.
Validate Material Compatibility: Connector housing and seal materials must withstand long-term exposure to fertilizers, pesticides, and other corrosive agricultural chemicals, and must avoid swelling, cracking, or degradation that could compromise the protective seal.
Add Secondary Strain Relief: Agricultural equipment is constantly subjected to vibration during field operations, which can loosen connections or pull wires away from the seal. A robust secondary strain relief can absorb mechanical stress and keep the connector assembly intact over years of use.
Test Under Real Field Conditions: Before mass deployment, conduct on-site validation that simulates actual agricultural use cycles, including repeated power washing, thermal cycling and chemical exposure, to confirm connector performance meets long-term operational requirements.
2. Chemical Compatibility: Protection Against Pesticides, Fertilizers, and UV Damage
Agricultural chemicals, including nitrogen-based fertilizers, herbicides, and acidic or alkaline pesticides, are highly corrosive. When these substances come into contact with conventional plastic or nitrile rubber (NBR) seals, they can gradually cause swelling, cracking, or chemical degradation.
Choosing appropriate materials for device housings and seals is critical to ensuring chemical resistance and long-term structural integrity.
Material Compatibility for Agricultural Connectors
| Component Part | Standard Material | High-Performance Agricultural Material | Key Advantage in Smart Farming |
| O-Rings & Gaskets | NBR (Nitrile) | FKM (Viton) / Silicone | Excellent resistance to harsh pesticides, oil, and extreme temperature fluctuations. |
| Connector Shell | Standard Nylon / ABS | PBT / PA66 with UV Stabilizers | High mechanical strength, anti-cracking against liquid fertilizer, UV aging resistance. |
| Contact Plating | Thin Flash Gold / Tin | Heavy Gold Plating over Nickel | Prevents corrosion from humid, chemical-laden air and maintains low contact resistance. |
| Cable Jacket | PVC | TPU (Thermoplastic Polyurethane) | Superior abrasion resistance against mud, drag wear, and chemical exposure. |
3. Preventing Mud Ingress and Fine Dust Clogging
Field machinery operates in environments with deep mud and fine dust (such as soil particles and crop chaff. When connectors are unmated during maintenance or battery swaps for drones, fine dust can enter the interface, clogging the latching mechanism or compromising the seal.
To prevent mud ingress and clogging:
– Quick-Locking Mechanisms: Bayonet or push-pull locking systems are preferable to standard fine threads, as fine threads easily bind up when contaminated with grit.
– Integrated Protective Dust Caps: Lanyard-attached IP67/IP68 dust caps protect open receptacles when modules or battery packs are detached.
– Smooth Shell Surfaces: Streamlined housing designs prevent thick mud from accumulating in crevices around the locking collar.
4. Vibration, Shock, and Strain Relief for Drones and Machinery
Agricultural drones experience intense, high-frequency motor vibration, while ground tractors are subjected to constant heavy mechanical shock. These dynamic forces place immense strain on the cable-to-connector junction. If left unsupported, wires can fatigue and break, or internal seals can shift, resulting in water leakage.
Key design practices to mitigate vibration-related issues include:
Overmolded Strain Relief: Overmolding the rear backshell with TPU provides flexible support that diverts bending stresses away from solder or crimp joints.
Anti-Vibration Thread Locks: Using internal tactile ratcheting or anti-loosening thread designs ensures threaded couplings do not loosen during heavy vibration.
Shielded Locking Retention Clips: Adding mechanical locking clips to connector mating interfaces creates an extra layer of retention that prevents accidental disconnection even under sustained shock, avoiding sudden power or signal interruptions that can disable agricultural equipment mid-operation.
Flexible Cable Arrangement: Reserving a proper length allowance for cables and fixing them with rubber clamps at short intervals can reduce the amplitude of cable swing, further lowering the cumulative stress acting on the connector junction.
These targeted design adjustments significantly improve the reliability of connection systems, extending the service life of electronic components in harsh agricultural working environments and reducing unplanned maintenance downtime for farmers.
5. High-Power & Signal Hybrid Integration for Drones
Space and weight are critical constraints for agricultural drones and compact smart farming sensors. Carrying separate cables for power, sensor telemetry, and RTK GPS positioning adds unnecessary payload and increases the risk of potential water ingress.
Hybrid Waterproof Connectors integrate power contacts (for motors/pumps) and signal pins (for CAN bus, sensors, or video) into a single compact housing, delivering the following key benefits:
– Weight Reduction: Cuts total harness weight, extending drone flight times.
– Simplified Wiring: Minimizes the number of panel cutouts required for IP-rated enclosures, lowering leakage risks.
– Enhanced System Reliability: Reduces the number of connection points that can fail, lowering maintenance frequency and downtime for long-term outdoor farming operations.
– Compact Layout Design: Frees up more internal space for additional farming sensing equipment or larger capacity batteries, without increasing the overall size of the drone or sensor device.
This all-in-one integration solution perfectly meets the harsh application requirements of smart agricultural scenarios, balancing performance, weight, and protection for compact agricultural equipment.
6. Field Maintenance & Modular Replacement
During peak planting or harvesting seasons, equipment downtime leads to direct financial losses. If a sensor harness breaks in the field, technicians need a quick solution to repair or replace it, rather than doing soldering work in the mud.
Field-Installable Connectors: Modular, screw-termination, or push-in spring terminal connectors allow field technicians to complete quick repairs with only basic hand tools.
Standardized Plug-and-Play Assemblies: Pre-molded, factory-tested custom cable harnesses enable fast field swapping, effectively minimizing machinery downtime.
Sealed Environment-Resistant Designs: Most agricultural field-installable connectors come with IP67 or higher ingress protection, which can withstand prolonged exposure to dust, water, fertilizer corrosion, and extreme temperature fluctuations, ensuring stable connection performance even in harsh farmland working conditions. This durability eliminates the need for frequent reworks after emergency repairs, further reducing long-term maintenance costs for agricultural equipment operators.
Frequently Asked Questions (FAQ)
Q1: Why is IP68 not always enough for agricultural spraying drones?
A: IP68 protects against static water submersion. Spraying drones operate amid high-speed air turbulence, chemical pesticide exposure, and frequent high-pressure washdowns after flight. Their connectors often require IP69K protection and FKM seals to resist chemical degradation and withstand dynamic water jet pressure.
Q2: How does UV radiation affect custom waterproof cable assemblies in the field?
A: Prolonged UV exposure breaks down polymer chains in non-UV-stabilized plastics and cable jackets, leading to discoloration, brittleness, and micro-cracking. Specifying UV-stabilized PBT or PA66 housings and TPU cable jackets prevents material degradation over years of outdoor exposure.
Q3: What is the benefit of overmolded cable assemblies versus field-assembled connectors?
A: Overmolded assemblies form a complete, factory-sealed bond between the cable jacket and connector backshell. This eliminates internal air voids, prevents capillary water wicking, and delivers superior strain relief against mechanical pulling and vibration.
