Waterproof circular connectors are widely used in industrial automation, robotics, marine equipment, outdoor lighting, sensors, and other applications where reliable electrical connections are required under harsh environmental conditions.

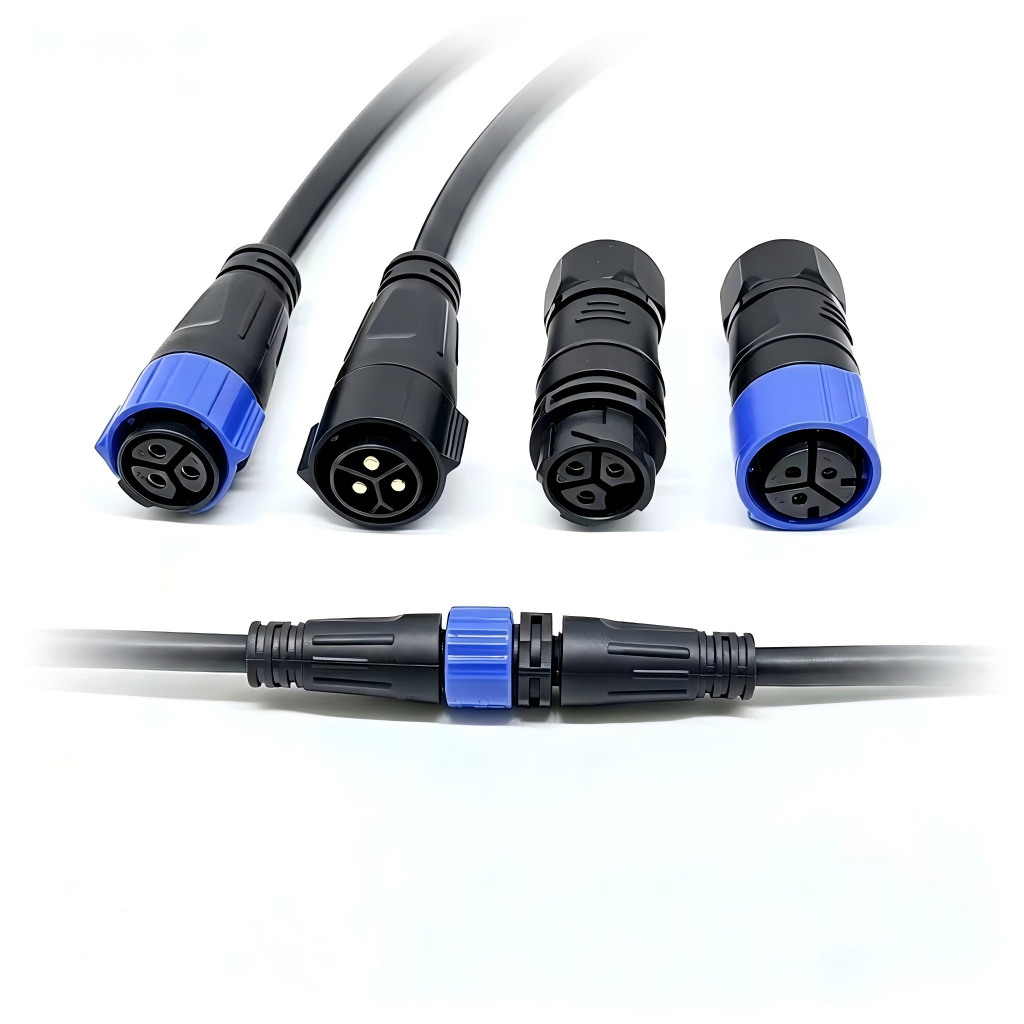

When designing a waterproof circular cable connector, engineers often need to choose between two common manufacturing methods:
- Overmolded circular connectors
- Assembled circular connectors
Both solutions can provide reliable electrical connections, but they differ significantly in waterproof performance, mechanical strength, production cost, and application suitability.
Understanding these differences helps engineers select the right connector design for their specific requirements.
What Is an Overmolded Waterproof Circular Connector?
An overmolded waterproof circular connector is manufactured by injecting plastic material directly around the cable and connector interface.
During the injection molding process, the connector body and cable become a sealed integrated assembly.
This design provides:
- Excellent waterproof sealing
- Strong cable strain relief
- Protection against vibration and impact
- Consistent production quality
- Reduced risk of water ingress
Overmolded circular connectors are commonly used in:
- Industrial automation equipment
- Outdoor LED lighting
- Marine electronics
- Sensors
- Robotics
- Medical equipment
What Is an Assembled Waterproof Circular Connector?
An assembled circular connector is built by combining multiple components, including:
- Connector housing
- Contacts
- Insulators
- O-rings
- Cable glands
- Locking components
The sealing performance depends on the accuracy of component assembly and the quality of sealing elements.
Assembled connectors are often selected for applications requiring:
- Flexible cable replacement
- Low-volume production
- Easy maintenance
- Faster customization
Overmolded vs Assembled Circular Connectors: Key Differences
| Feature | Overmolded Circular Connector | Assembled Circular Connector |
|---|---|---|
| Waterproof Performance | Excellent IP67/IP68 sealing | Depends on assembly quality |
| Cable Protection | Integrated strain relief | Requires additional components |
| Vibration Resistance | Higher | Depends on locking structure |
| Production Consistency | High | More affected by assembly process |
| Maintenance | Usually non-repairable | Easier component replacement |
| Initial Cost | Higher tooling investment | Lower setup cost |
| Mass Production | Ideal | Suitable for small batches |
1. Waterproof Performance
For waterproof circular connectors, sealing reliability is one of the most important factors.
Overmolded Design
Because the cable and connector are sealed together through injection molding, overmolded connectors have fewer potential leakage points.
Advantages include:
- Improved IP67/IP68 protection
- Better resistance against moisture and dust
- Stable sealing performance over long periods
This makes them suitable for applications exposed to rain, humidity, cleaning processes, or water environments.
Assembled Design
Assembled connectors typically rely on:
- O-rings
- Cable glands
- Locking nuts
- Sealing rings
Their waterproof performance depends on:
- Correct assembly torque
- Proper cable diameter matching
- Seal installation
- Component quality
For less demanding environments, assembled solutions can still provide reliable waterproof protection.
2. Cable Strain Relief and Mechanical Protection
Waterproof circular cable connectors are often exposed to pulling forces, bending, and vibration during operation.
Overmolded connectors provide better strain relief because the molding material reinforces the cable transition area.
Benefits include:
- Reduced cable stress
- Prevention of cable pull-out
- Improved vibration resistance
- Longer cable assembly life
This is especially important for:
- Robotic systems
- Automated machinery
- Mobile equipment
3. Manufacturing Process and Reliability
Overmolding Process
Advantages:
- Automated production capability
- Stable product consistency
- Reduced manual assembly
- Suitable for high-volume manufacturing
However:
- Requires tooling development
- Higher initial investment
- Less flexible for frequent design changes
Assembly Process
Advantages:
- Lower initial investment
- Faster product modification
- Suitable for prototypes and small quantities
However:
- More assembly steps
- Higher dependence on operator skills
- Greater variation between production batches
4. Cost Considerations
The better choice depends on production volume and application requirements.
For Small Quantity Projects
Assembled waterproof circular connectors may be more economical because they do not require injection mold investment.
For Mass Production
Overmolded connectors often provide better overall value because they offer:
- Higher production efficiency
- Lower labor cost
- Better quality consistency
- Reduced failure risks
Which Waterproof Circular Connector Design Should You Choose?
Choose Overmolded Circular Connectors When:
- IP67/IP68 waterproof performance is required
- The connector operates in harsh environments
- High vibration resistance is needed
- Long service life is important
- Production volume is high
Typical applications:
- Industrial automation
- Marine equipment
- Outdoor devices
- Robotics
- Smart sensors
Choose Assembled Circular Connectors When:
- Small-batch production is required
- Cable replacement is necessary
- Frequent maintenance is expected
- Product designs change frequently
Typical applications:
- Prototype equipment
- Testing systems
- Customized machinery
Conclusion
Both overmolded and assembled designs have their own advantages. The right choice depends on the application environment, production volume, maintenance requirements, and reliability expectations.
For demanding applications requiring strong waterproof protection, vibration resistance, and long-term reliability, overmolded waterproof circular connectors are often the preferred solution. By integrating the connector and cable into a single sealed structure, overmolding improves waterproof performance, mechanical strength, and production consistency.
Assembled circular connectors, on the other hand, provide greater flexibility and easier maintenance, making them suitable for prototypes, small batches, and applications requiring frequent replacement.
At Yuanyue Electronics, we provide customized waterproof circular connectors and overmolded cable assembly solutions. With in-house tooling development, injection molding, automated production, and cable assembly capabilities, we support customers from product design and prototyping to mass production for industrial, outdoor, marine, and other harsh-environment applications.
1. What is the difference between an overmolded and assembled waterproof circular connector?
An overmolded waterproof circular connector is produced by injection molding the cable and connector into a single sealed structure, while an assembled connector is built by combining separate components such as housings, contacts, seals, and cable glands.
2. Are overmolded circular connectors more waterproof than assembled connectors?
Generally, yes. Overmolded circular connectors have fewer sealing interfaces, which reduces the risk of water ingress and provides more consistent IP67/IP68 waterproof performance in harsh environments.
3. Which waterproof circular connector is better for outdoor and industrial applications?
Overmolded waterproof circular connectors are often preferred for outdoor, marine, robotics, and industrial automation applications because they provide better protection against moisture, vibration, dust, and mechanical stress.
4. When should I choose an assembled circular connector?
Assembled circular connectors are suitable for applications requiring easy maintenance, cable replacement, small-batch production, or frequent design changes. They offer more flexibility during installation and servicing.
5. Can overmolded waterproof circular connectors be customized?
Yes. Overmolded circular connectors can be customized with different connector types, pin configurations, cable lengths, cable materials, overmolding designs, and electrical specifications to meet specific application requirements.
