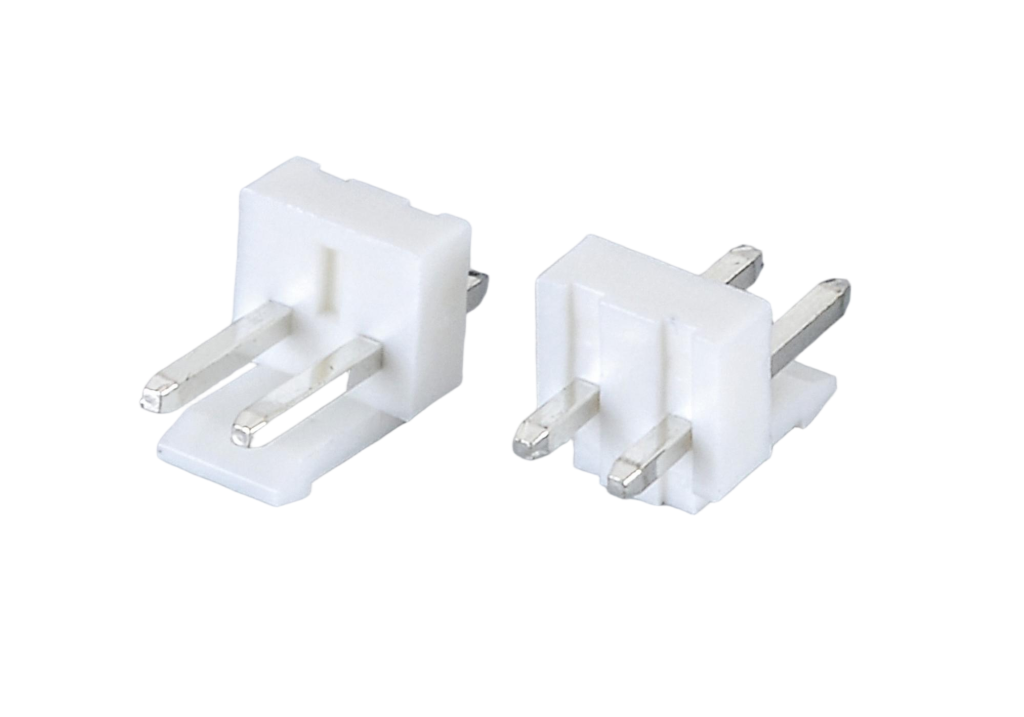

3.96mm Molex Wafer 0.156 inch Pitch Horizontal DIP for HVAC System Controller
3.96mm Molex Wafer 0.156 inch Pitch Horizontal DIP for HVAC System Controller
Product Specifications
Current Rating3 Amp
Insulator Resistance5000 Megohms Min
Dielectric WithstandingAC 1000 V
No. of Positions2-15Pin
OrientationHorizontal
Contact MaterialCopper Alloy
Insulator MaterialOptional: PBT,PA6T,PA9
Flame RatingUL 94V-0
Plating OptionTin
Insulator HighOptional
Product Description
Our 3.96mm Pitch Wafer Connector is a heavy-duty interconnect solution specifically engineered for HVAC system controllers, industrial power supplies, and high-power home appliances. The 0.156-inch wide pitch design provides superior electrical insulation and supports a robust current capacity of up to 7.0A, ensuring safe and stable power distribution on critical control boards. Available in both vertical and horizontal DIP configurations, it offers engineers maximum layout flexibility in dense industrial enclosures. Its polarized friction-lock design guarantees a secure board-to-wire link even under mechanical vibration, making it the preferred choice for OEM/ODM manufacturers of automated machinery.
Key Features
- 0.156" (3.96mm) pitch for standard PCB layouts
- Customize pins, pitch,height,length
- Compliance with REACH, ISO, RoHS
- High Signal Integrity: Precision-engineered contacts provide reliable electrical performance for high-speed signal and data transmission.
- Fully automated production for consistent quality
- 100% CCD visual inspection to ensure defect-free products
