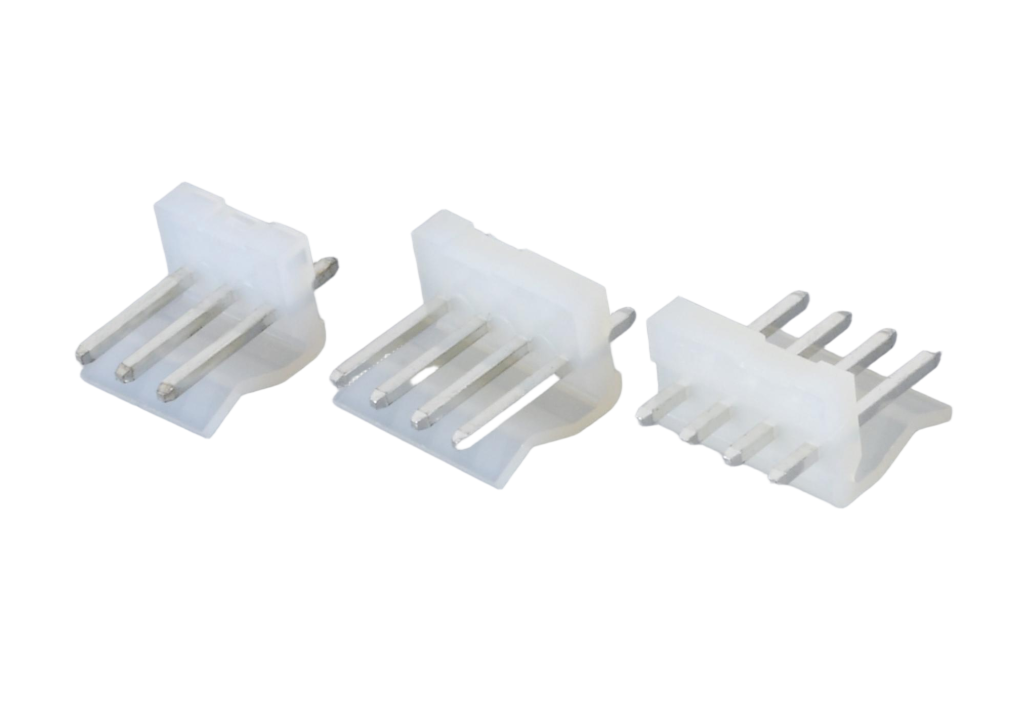

3.96mm Molex Wafer 0.156 inch Pitch Horizontal DIP for Vending Machine Controller Header
3.96mm Molex Wafer 0.156 inch Pitch Horizontal DIP for Vending Machine Controller Header
Product Specifications
Current Rating3 Amp
Insulator Resistance5000 Megohms Min
Dielectric WithstandingAC 1000 V
No. of Positions2-15Pin
OrientationHorizontal
Contact MaterialCopper Alloy
Insulator MaterialOptional: PBT,PA6T,PA9
Flame RatingUL 94V-0
Plating OptionTin
Insulator HighOptional
Product Description
This 3.96mm Pitch Wafer Connector is a heavy-duty interconnect solution engineered for industrial power supplies, home appliances, and large-scale LED drivers. The 0.156-inch wide pitch design provides superior insulation and supports a high current capacity of up to 7A, making it ideal for power distribution on control boards. Available in vertical and right-angle configurations, these headers allow for robust wire-to-board connections in demanding environments such as washing machine controllers and industrial HVAC systems. Featuring a secure friction-lock mechanism, this wafer ensures stable electrical performance under vibration and thermal stress.
Key Features
- 0.156" (3.96mm) pitch for standard PCB layouts
- Customize pins, pitch,height,length
- Compliance with REACH, ISO, RoHS
- High Signal Integrity: Precision-engineered contacts provide reliable electrical performance for high-speed signal and data transmission.
- Fully automated production for consistent quality
- 100% CCD visual inspection to ensure defect-free products
