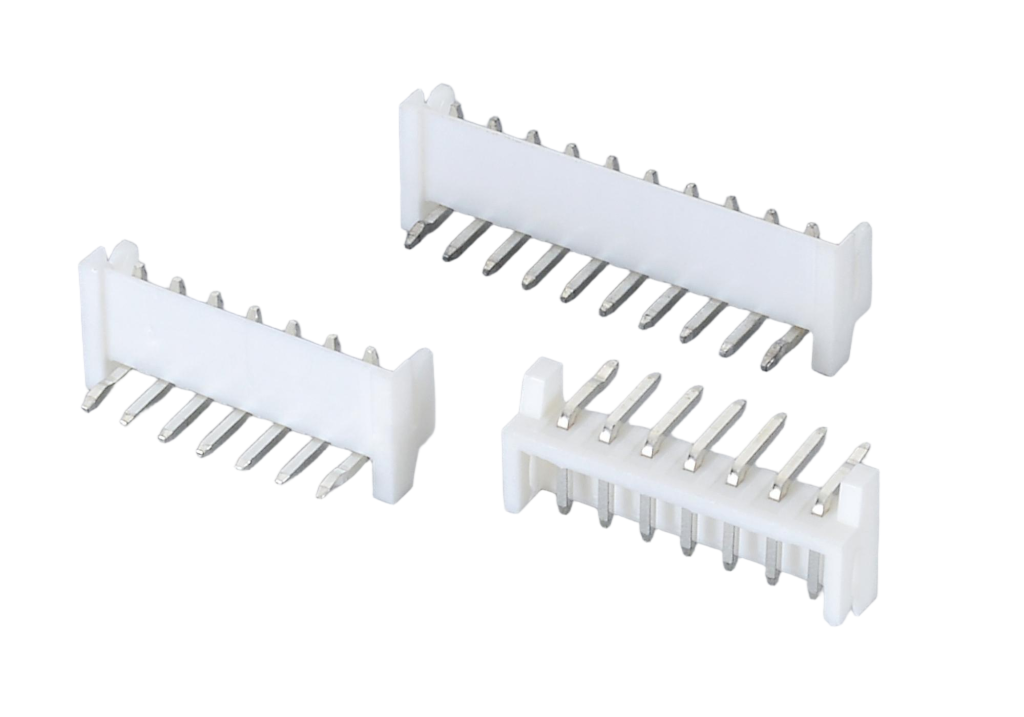

2.50mm 0.098 inch Pitch Right Angle DIP With K Wafer Socekt for consumer electronic systems
2.50mm 0.098 inch Pitch Right Angle DIP With K Wafer Socekt for consumer electronic systems
Product Specifications
Current Rating3 Amp
Insulator Resistance5000 Megohms Min
Dielectric WithstandingAC 1000 V
No. of Positions2-15Pin
OrientationHorizontal
Contact MaterialCopper Alloy
Insulator MaterialOptional: PBT,PA6T,PA9
Flame RatingUL 94V-0
Plating OptionTin, Gold,
Insulator HighOptional
Product Description
The 2.50mm Pitch Wafer Connector series is a high-reliability interconnect solution engineered for power and signal distribution in industrial, automotive, and consumer electronic systems. Featuring both Surface Mount (SMT) and Through-Hole (DIP) mounting styles, these headers provide the mechanical stability required for heavy-duty appliances and industrial control modules. The 2.50mm pitch offers an optimal balance between space-saving design and electrical performance, making it an ideal choice for battery management systems (BMS) and motor controllers. Built with heat-resistant materials, this series is fully compatible with automated reflow and wave soldering processes.
Key Features
- 0.098" (2.5mm) pitch for standard PCB layouts
- Customize pins, pitch,height,length
- Compliance with REACH, ISO, RoHS
- High Signal Integrity: Precision-engineered contacts provide reliable electrical performance for high-speed signal and data transmission.
- Fully automated production for consistent quality
- 100% CCD visual inspection to ensure defect-free products
