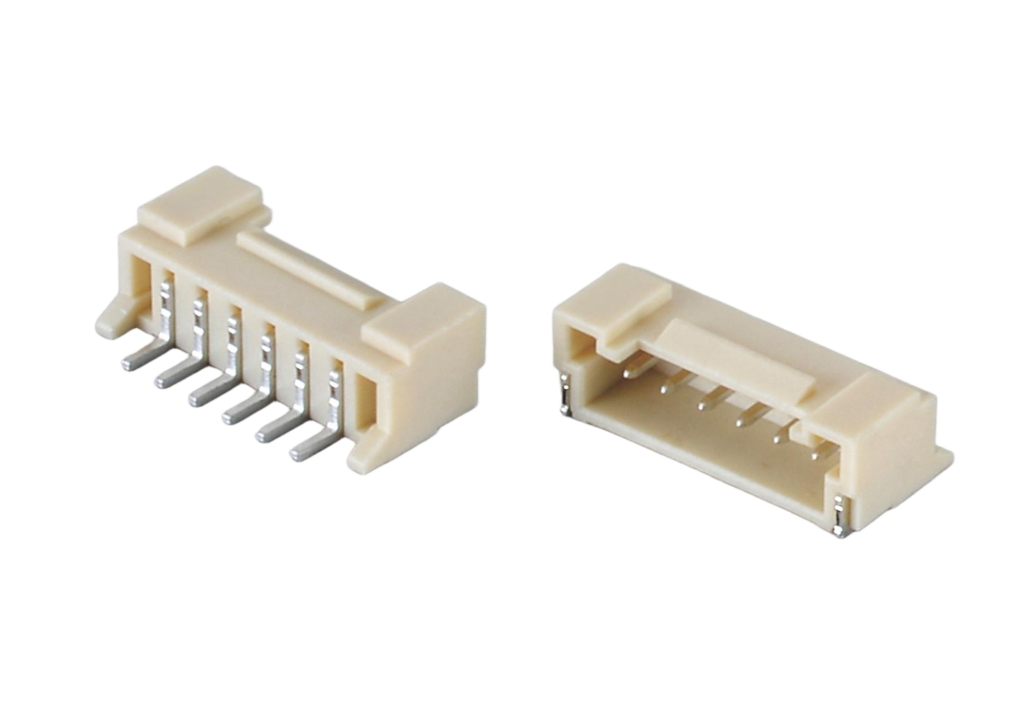

2.50mm 0.098 inch Side Entry SMD Horizontal Wafer Socket for LED Panel PCB
2.50mm 0.098 inch Side Entry SMD Horizontal Wafer Socket for LED Panel PCB
Product Specifications
Current Rating3 Amp
Insulator Resistance5000 Megohms Min
Dielectric WithstandingAC 1000 V
No. of Positions2-16Pin
OrientationHorizontal
Contact MaterialCopper Alloy
Insulator MaterialOptional: PBT,PA6T,PA9
Flame RatingUL 94V-0
Plating OptionTin, Gold,
Insulator HighOptional
Product Description
The 2.00mm Pitch Wafer Connector series provides a robust and flexible wire-to-board solution for high-density electronic designs. Available in both SMT for automated high-volume assembly and DIP for superior mechanical strength, these 2.00mm (0.079") headers are the industry standard for automotive interior electronics, industrial control boards, and household appliances. The low-profile side-entry (right angle) design is specifically engineered for slim LED displays and compact medical monitors where vertical space is limited. Constructed with heat-resistant materials, this wafer series ensures exceptional reliability through rigorous lead-free reflow or wave soldering processes.
Key Features
- 0.079" (2.0mm) pitch for standard PCB layouts
- Customize pins, pitch,height,length
- Compliance with REACH, ISO, RoHS
- High Signal Integrity: Precision-engineered contacts provide reliable electrical performance for high-speed signal and data transmission.
- Fully automated production for consistent quality
- 100% CCD visual inspection to ensure defect-free products
