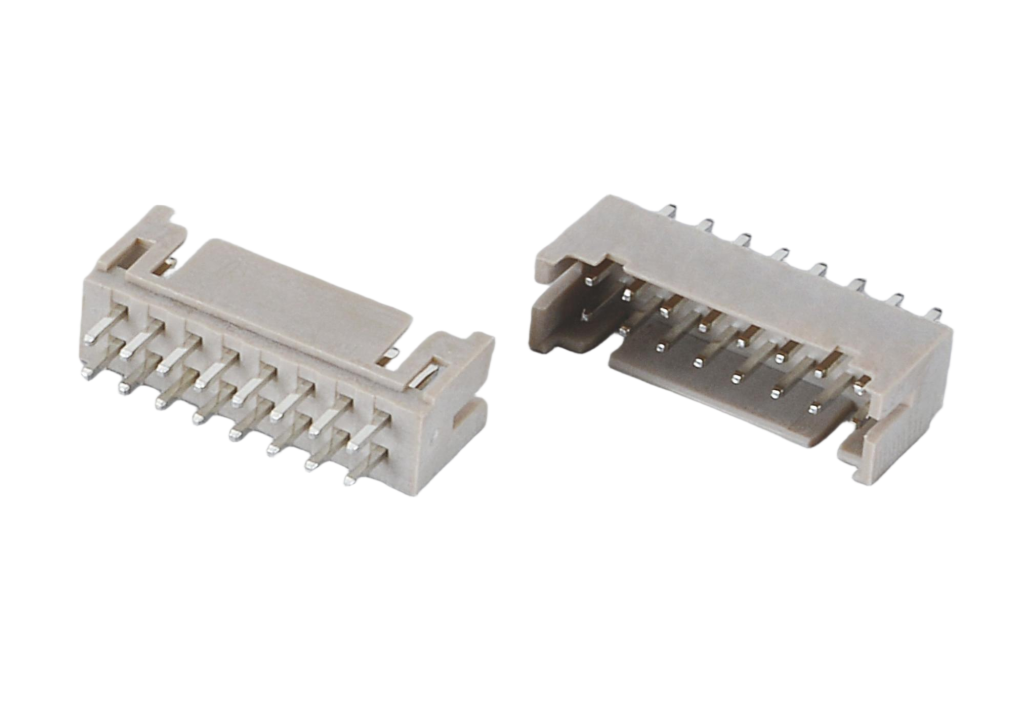

2.00mm 0.079 inch Pitch Horizontal DIP Wafer Socket for Industrial Control Board
2.00mm 0.079 inch Pitch Horizontal DIP Wafer Socket for Industrial Control Board
Product Specifications
Current Rating3 Amp
Insulator Resistance5000 Megohms Min
Dielectric WithstandingAC 1000 V
No. of Positions4-44Pin
OrientationHorizontal
Contact MaterialCopper Alloy
Insulator MaterialOptional: PBT,PA6T,PA9
Flame RatingUL 94V-0
Plating OptionTin, Gold,
Insulator HighOptional
Product Description
The 2.00mm Pitch Right Angle SMT Wafer Connector is a versatile and robust wire-to-board solution designed for high-performance electronic assemblies. Featuring a specialized 2.00mm (0.079") pitch, this horizontal SMT header provides a stable interface for both power and signal transmission in automotive dashboards, industrial sensors, and household control boards. The side-entry SMT architecture is specifically engineered to reduce vertical height, allowing for efficient wire routing in slim-line LED panels and compact medical devices. Fully compatible with automated reflow soldering processes, its heat-resistant housing and reinforced solder tabs ensure long-term mechanical reliability in vibration-prone environments.
Key Features
- 0.079" (2.0mm) pitch for standard PCB layouts
- Customize pins, pitch,height,length
- Compliance with REACH, ISO, RoHS
- High Signal Integrity: Precision-engineered contacts provide reliable electrical performance for high-speed signal and data transmission.
- Fully automated production for consistent quality
- 100% CCD visual inspection to ensure defect-free products
