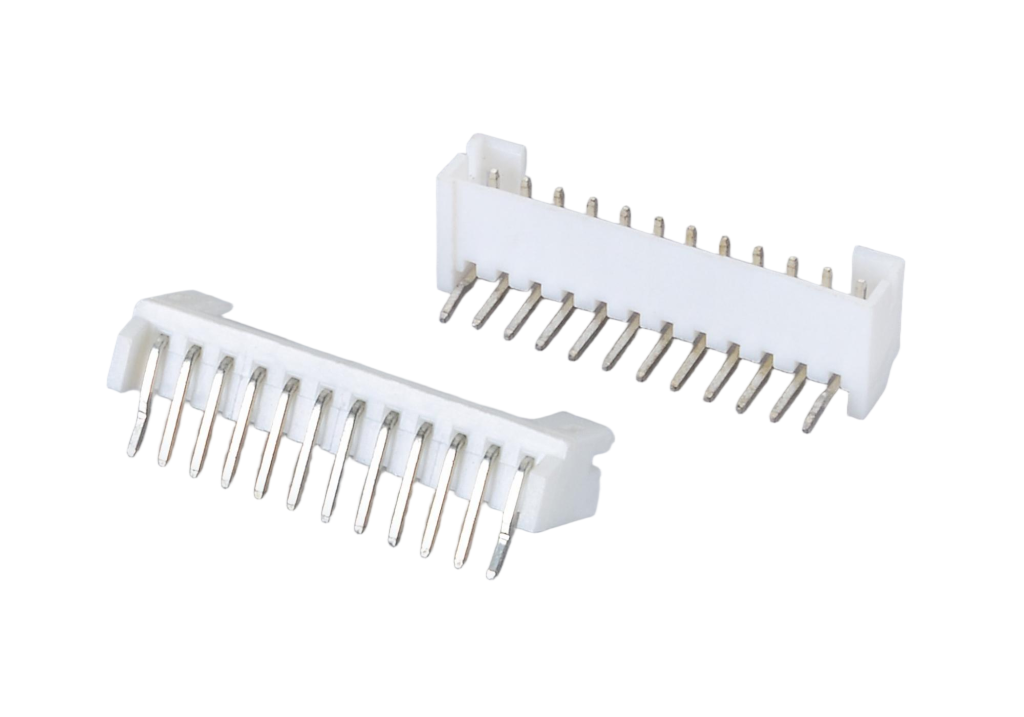

2.0mm 0.079in Wafer Quality Certificated High Voltage PCB Connector
2.0mm 0.079in Wafer Quality Certificated High Voltage PCB Connector
Product Specifications
Current Rating3 Amp
Insulator Resistance5000 Megohms Min.
Dielectric WithstandingAC 1000 V
No. of Positions01 Pin-40 Pin
Plating OptionTin Gold
Soldering Temperature260℃ for 3～5sec Max.
Contact MaterialCopper Alloy
Insulator MaterialPBT, PA6T, PA9T
Flame RatingUL 94V-0
Insulator HighOptional
Product Description
This 2.0mm (0.079in) Wafer Connector is engineered for reliable and precise board-level interconnections in electronic assemblies. Its 2.0mm pitch provides enhanced mechanical strength and spacing, making it ideal for both signal and low-power applications in compact PCB designs.
Featuring precision metal terminals and a robust insulating housing, the connector ensures stable electrical performance, secure solder joints, and long-term reliability. It is well suited for industrial control systems, communication modules, embedded electronics, and other applications where dependable PCB connections are critical.
Key Features
- 0.079" (2.0mm) pitch for standard PCB layouts
- .020" (0.5mm）square post contact system mm) square post contact system
- Vertical and right-angle orientations available
- Fully automated production for consistent quality
- 100% CCD visual inspection to ensure defect-free products
- Multiple plating options to enhance durability and conductivity
