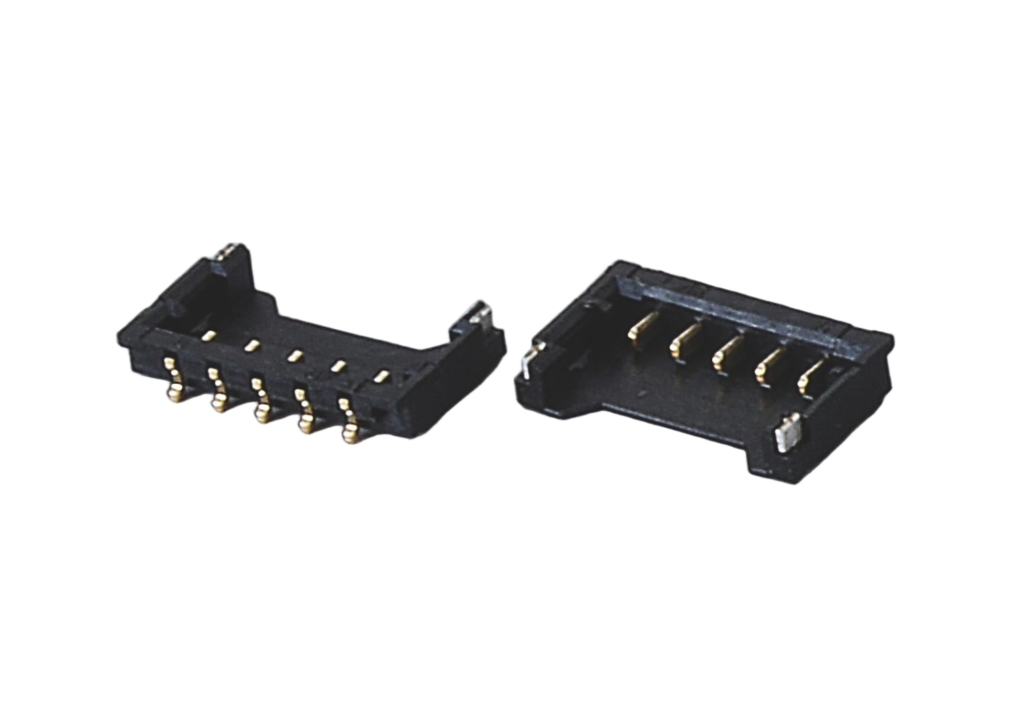

1.20mm 0.047in Brass Contact Wafer Socket PCB Connector
1.20mm 0.047in Brass Contact Wafer Socket PCB Connector
Product Specifications
Current Rating3 Amp
Insulator Resistance5000 Megohms Min.
Dielectric WithstandingAC 1000 V
No. of Positions01 Pin-40 Pin
Plating OptionTin Gold
Soldering Temperature260℃ for 3～5sec Max.
Contact MaterialCopper Alloy
Insulator MaterialPBT, PA6T, PA9T
Flame RatingUL 94V-0
Insulator HighOptional
Product Description
This 1.20mm (0.047in) Wafer Connector is designed for precise and reliable board-level interconnections in compact electronic assemblies. Its fine 1.20mm pitch allows for high-density PCB layouts, providing stable electrical contact and accurate alignment with mating components.
Constructed with precision metal contacts and durable insulating housing, the connector ensures consistent signal performance, secure soldering, and long-term reliability. It is ideal for industrial electronics, communication modules, embedded systems, and other space-constrained applications where dependable PCB connections are required.
Key Features
- 0.047" (1.2mm) pitch for standard PCB layouts
- .020" (0.5mm）square post contact system mm) square post contact system
- Vertical and right-angle orientations available
- Fully automated production for consistent quality
- 100% CCD visual inspection to ensure defect-free products
- Multiple plating options to enhance durability and conductivity
