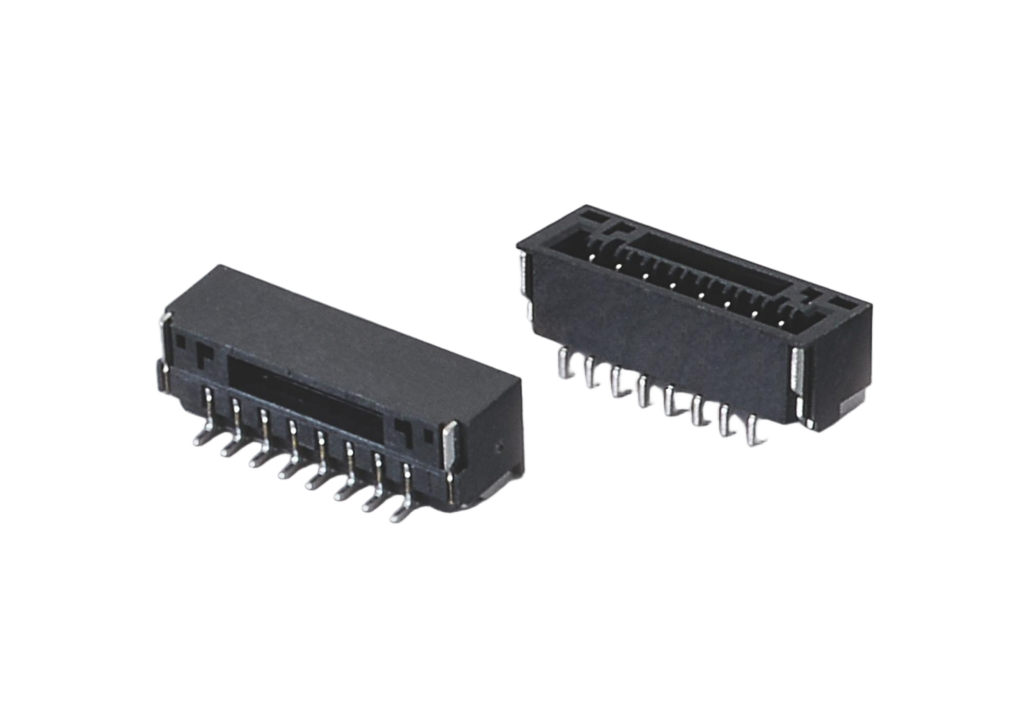

1.25mm 0.049in SMD Type Wafer Socket PCB Connector
1.25mm 0.049in SMD Type Wafer Socket PCB Connector
Product Specifications
Current Rating3 Amp
Insulator Resistance5000 Megohms Min.
Dielectric WithstandingAC 1000 V
No. of Positions01 Pin-40 Pin
Plating OptionTin Gold
Soldering Temperature260℃ for 3～5sec Max.
Contact MaterialCopper Alloy
Insulator MaterialPBT, PA6T, PA9T
Flame RatingUL 94V-0
Insulator HighOptional
Product Description
This 1.25mm (0.049in) Wafer Connector is engineered for compact electronic designs that require precise and reliable board-level interconnections. Its 1.25mm fine pitch supports high-density PCB layouts while maintaining accurate mating alignment and consistent electrical contact.
Built with precision metal terminals and robust insulating housing, the connector provides stable soldering performance and long-term reliability. It is ideal for industrial electronics, communication modules, embedded systems, and other applications where space efficiency and dependable PCB connections are critical.
Key Features
- 0.049" (1.25mm) pitch for standard PCB layouts
- .020" (0.5mm）square post contact system mm) square post contact system
- Vertical and right-angle orientations available
- Fully automated production for consistent quality
- 100% CCD visual inspection to ensure defect-free products
- Multiple plating options to enhance durability and conductivity
