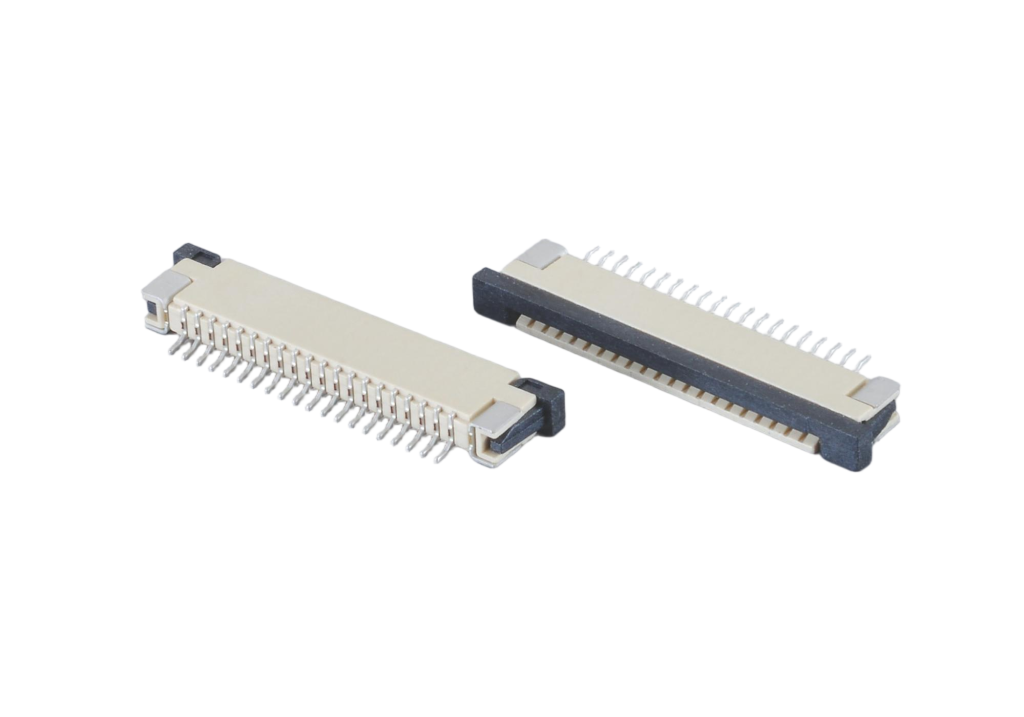

1.0mm 0.04 inch Pitch Height 2.5mm SMD Vertical Push-Pull Up Touch for Patient monitoring devices
1.0mm 0.04 inch Pitch Height 2.5mm SMD Vertical Push-Pull Up Touch for Patient monitoring devices
Product Specifications
Rated Current1.0A AC/DC
Contact resistance≤0.03Ω
Rated Voltage50V AC/DC
No. of Positions4-60Pin
Contact PositionTop Contact
Contact MaterialCopper Alloy
Insulator MaterialLCP
Flame RatingUL 94V-0
Plating OptionTin
Insulator HighOptional
Product Description
Designed for vertical cable exit applications, the 1.0 mm (0.04”) pitch, 2.5 mm height vertical SMD FPC connector delivers reliable board-to-flex interconnections in demanding environments. A push-pull (slider) locking mechanism ensures strong mechanical retention, preventing accidental cable disengagement during operation or vibration.
The up-touch (top-contact) configuration accommodates specialized wiring layouts, while the 2.5 mm profile enhances structural stability for heavy-duty industrial and automotive applications. Optimized for precision SMT assembly, this connector maintains consistent signal integrity even under high-vibration conditions.
Key Features
- 0.04" (1.00mm) pitch for standard PCB layouts
- Customize pins, pitch,height,length
- Compliance with REACH, ISO, RoHS
- High Signal Integrity: Precision-engineered contacts provide reliable electrical performance for high-speed signal and data transmission.
- Fully automated production for consistent quality
- 100% CCD visual inspection to ensure defect-free products
