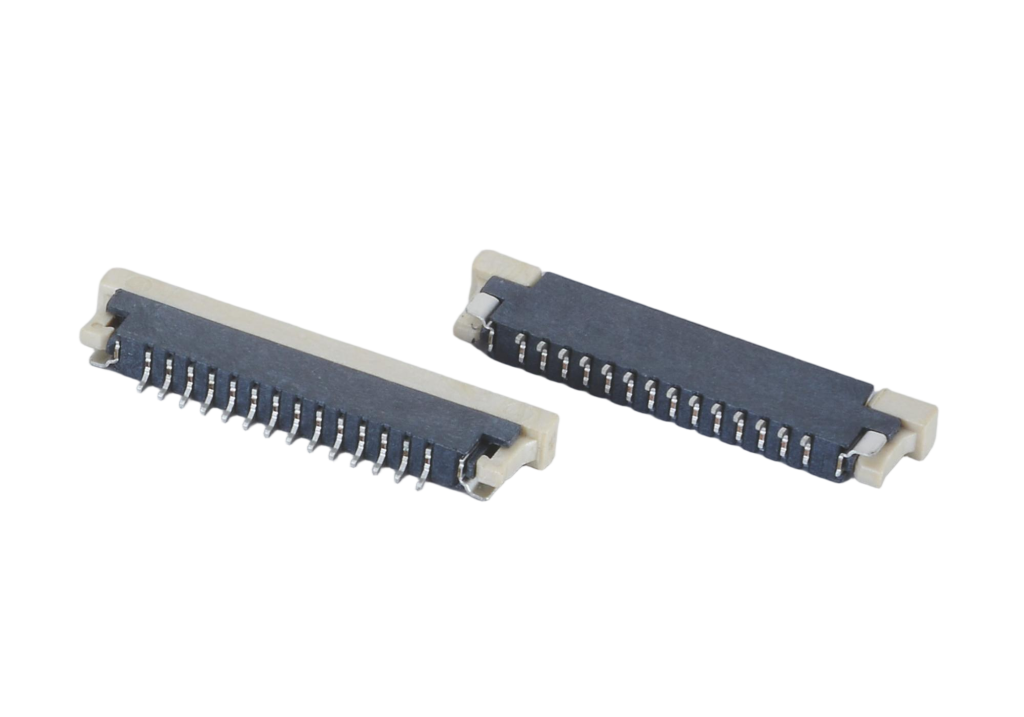

Surface mount FPC Connector 1.00mm 0.04 inch Pitch Height 2.0mm Push-Pull Bottom Touch for PLC modules

Surface mount FPC Connector 1.00mm 0.04 inch Pitch Height 2.0mm Push-Pull Bottom Touch for PLC modules

Surface mount FPC Connector 1.00mm 0.04 inch Pitch Height 2.0mm Push-Pull Bottom Touch for PLC modules
Send Inquiry

Product Specifications

Rated Current1.0A AC/DC
Contact resistance30m Max
Rated Voltage50V AC/DC
No. of Positions4-68Pin
Contact PositionBottom Contact
Contact MaterialCopper Alloy
Insulator MaterialLCP
Flame RatingUL 94V-0
Plating OptionTin
Insulator HighOptional

Product Description

YYE’s 1.0mm-pitch, 2.0mm-height SMT FPC/FFC connector comes equipped with a highly reliable push-pull (slider) locking mechanism, engineered for robust, hassle-free cable management.
Its bottom contact configuration ensures precise, stable electrical connectivity with the traces on the underside of FPC/FFC cables. Boasting a 2.0mm low-profile design paired with a 1.0mm pitch, this connector stands out as the ideal solution for power-dense applications that demand greater durability than finer-pitch alternatives.
Optimized for automated SMT assembly, it is widely trusted in automotive electronics, industrial displays, and home appliances.

Key Features

  • 0.04" (1.00mm) pitch for standard PCB layouts
  • Customize pins, pitch,height,length
  • Compliance with REACH, ISO, RoHS
  • High Signal Integrity: Precision-engineered contacts provide reliable electrical performance for high-speed signal and data transmission.
  • Fully automated production for consistent quality
  • 100% CCD visual inspection to ensure defect-free products
