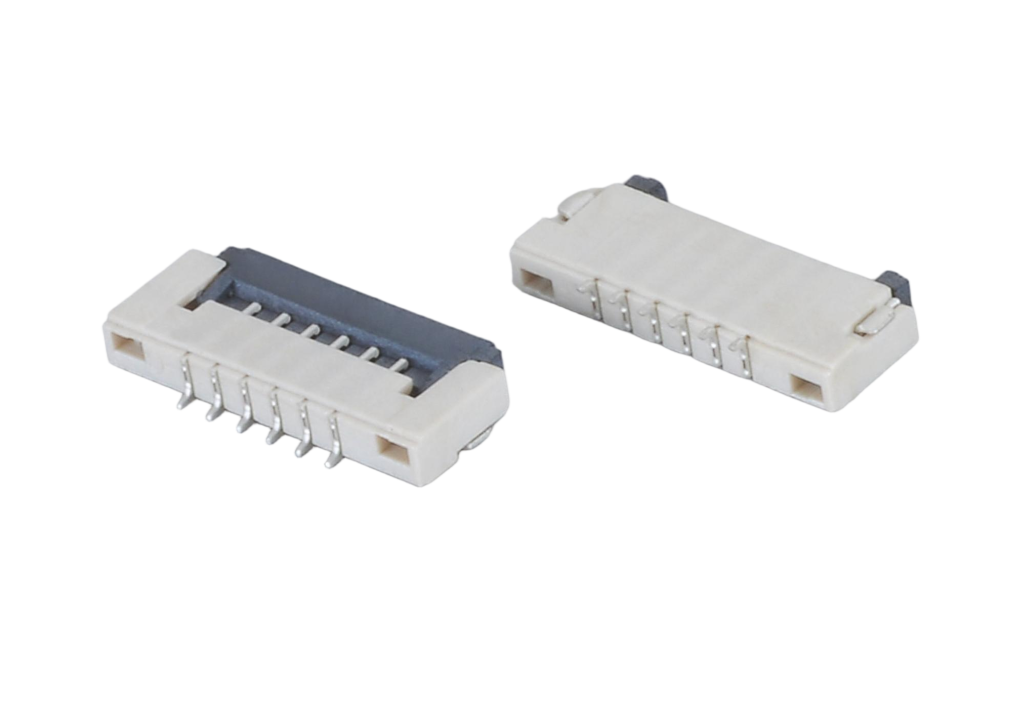

1.00mm 0.04 inch Pitch Height 1.5mm FPC Socket for Portable Diagnostic Tools
1.00mm 0.04 inch Pitch Height 1.5mm FPC Socket for Portable Diagnostic Tools
Product Specifications
Rated Current1.0A AC/DC
Contact resistance≤0.03Ω
Rated Voltage50V AC/DC
No. of Positions4-32Pin
Contact PositionBottom Contact
Contact MaterialCopper Alloy
Insulator MaterialLCP
Flame RatingUL 94V-0
Plating OptionTin
Insulator HighOptional
Product Description
Our 1.00mm (0.04") Pitch, 1.5mm Height SMD FPC Connector is a precision-engineered solution for high-reliability flexible circuit connections. Featuring an intuitive Front Flip-Lock (Actuator) design, it provides a secure Zero Insertion Force (ZIF) connection that simplifies assembly and prevents cable damage. The 1.5mm low-profile mounting height makes it an ideal choice for space-constrained PCB designs without compromising mechanical stability. Built with high-grade LCP housing and gold-plated contacts, this connector ensures superior signal integrity for applications in automotive, industrial control, and medical device sectors.
Key Features
- 0.04" (1.00mm) pitch for standard PCB layouts
- Customize pins, pitch,height,length
- Compliance with REACH, ISO, RoHS
- High Signal Integrity: Precision-engineered contacts provide reliable electrical performance for high-speed signal and data transmission.
- Fully automated production for consistent quality
- 100% CCD visual inspection to ensure defect-free products
