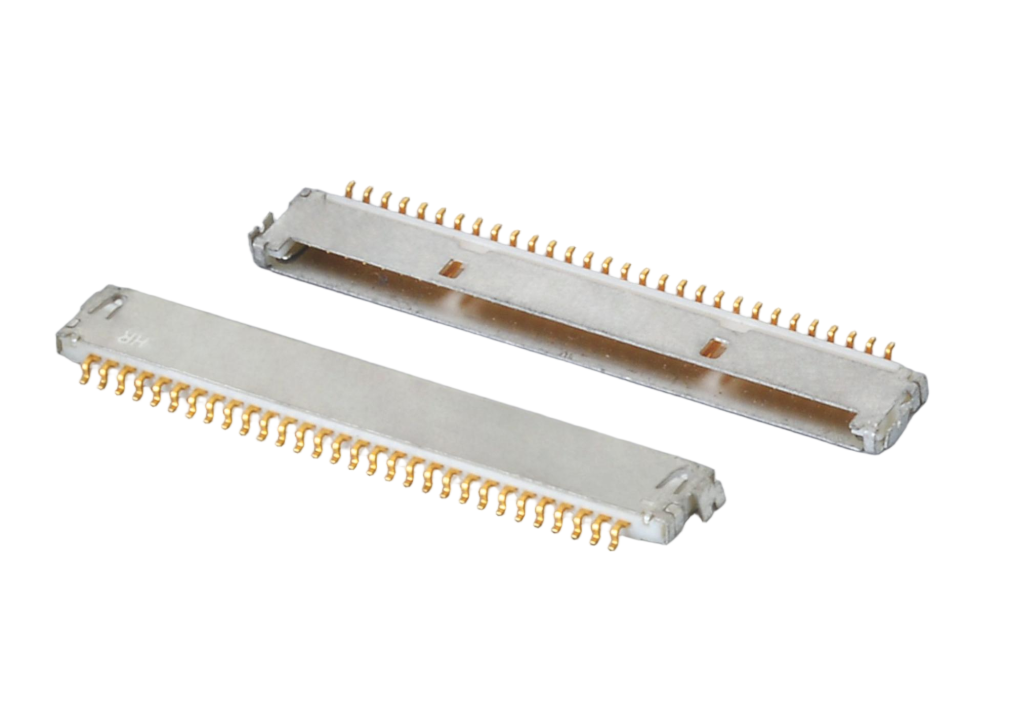

1.00mm 0.039 inch Pitch Horizontal SMT Wafer Socket for Slim-line Electronics
1.00mm 0.039 inch Pitch Horizontal SMT Wafer Socket for Slim-line Electronics
Product Specifications
Product Description
The 1.00mm Pitch Ultra-Low Profile SMT Wafer Connector is a high-performance interconnect solution specifically engineered for the modern trend of slim-line electronics. Featuring a horizontal right-angle orientation and a miniature 1.0mm pitch, this connector is the ideal interface for LCD/LED display panels, laptops, and tablet computers where vertical space is extremely limited. The design incorporates a robust metal shield to minimize electromagnetic interference (EMI), ensuring stable data transmission in high-frequency environments like mobile computing and medical imaging hardware. With precision gold-plated contacts and SMT compatibility, it provides a reliable, high-density solution for next-generation IoT and consumer electronics.
Key Features
- 0.039" (1.00mm) pitch for standard PCB layouts
- Customize pins, pitch,height,length
- Compliance with REACH, ISO, RoHS
- High Signal Integrity: Precision-engineered contacts provide reliable electrical performance for high-speed signal and data transmission.
- Fully automated production for consistent quality
- 100% CCD visual inspection to ensure defect-free products
