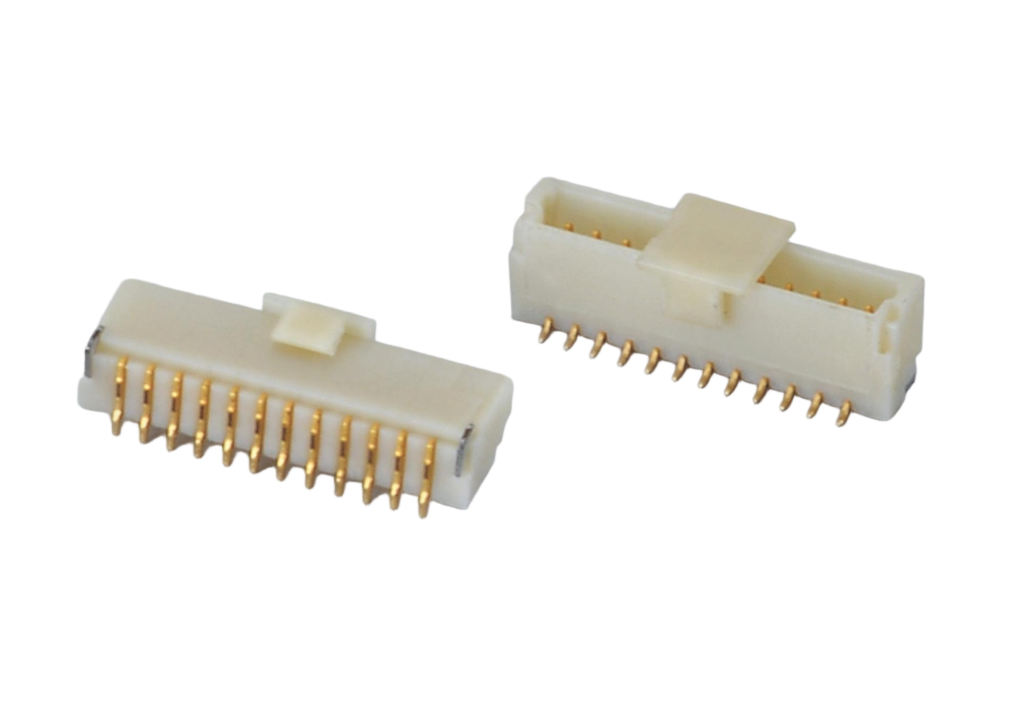

1.00mm 0.039 inch Pitch Vertical SMD Top Entry Wafer Header with Top Friction Lock for Automotive Display
1.00mm 0.039 inch Pitch Vertical SMD Top Entry Wafer Header with Top Friction Lock for Automotive Display
Product Specifications
Current Rating3 Amp
Insulator Resistance5000 Megohms Min
Dielectric WithstandingAC 1000 V
No. of Positions2-20Pin
OrientationVertical
Contact MaterialCopper Alloy
Insulator MaterialOptional: PBT,PA6T,PA9
Flame RatingUL 94V-0
Plating OptionTin, Gold,
Insulator HighOptional
Product Description
The 1.00mm Pitch SMT Wafer Connector is an ultra-miniature wire-to-board solution designed for high-density PCB layouts where space is extremely limited. This vertical wafer header features a 0.039" pitch and is engineered for high-precision signal transmission in smart home sensors, medical diagnostic tools, and portable consumer electronics. Equipped with a specialized top friction lock, it ensures a secure and vibration-resistant connection between the wire harness and the circuit board. Its high-temperature housing is fully compatible with automated reflow soldering, providing exceptional durability and mechanical stability for industrial automation and automotive infotainment systems.
Key Features
- 0.039" (1.00mm) pitch for standard PCB layouts
- Customize pins, pitch,height,length
- Compliance with REACH, ISO, RoHS
- High Signal Integrity: Precision-engineered contacts provide reliable electrical performance for high-speed signal and data transmission.
- Fully automated production for consistent quality
- 100% CCD visual inspection to ensure defect-free products
