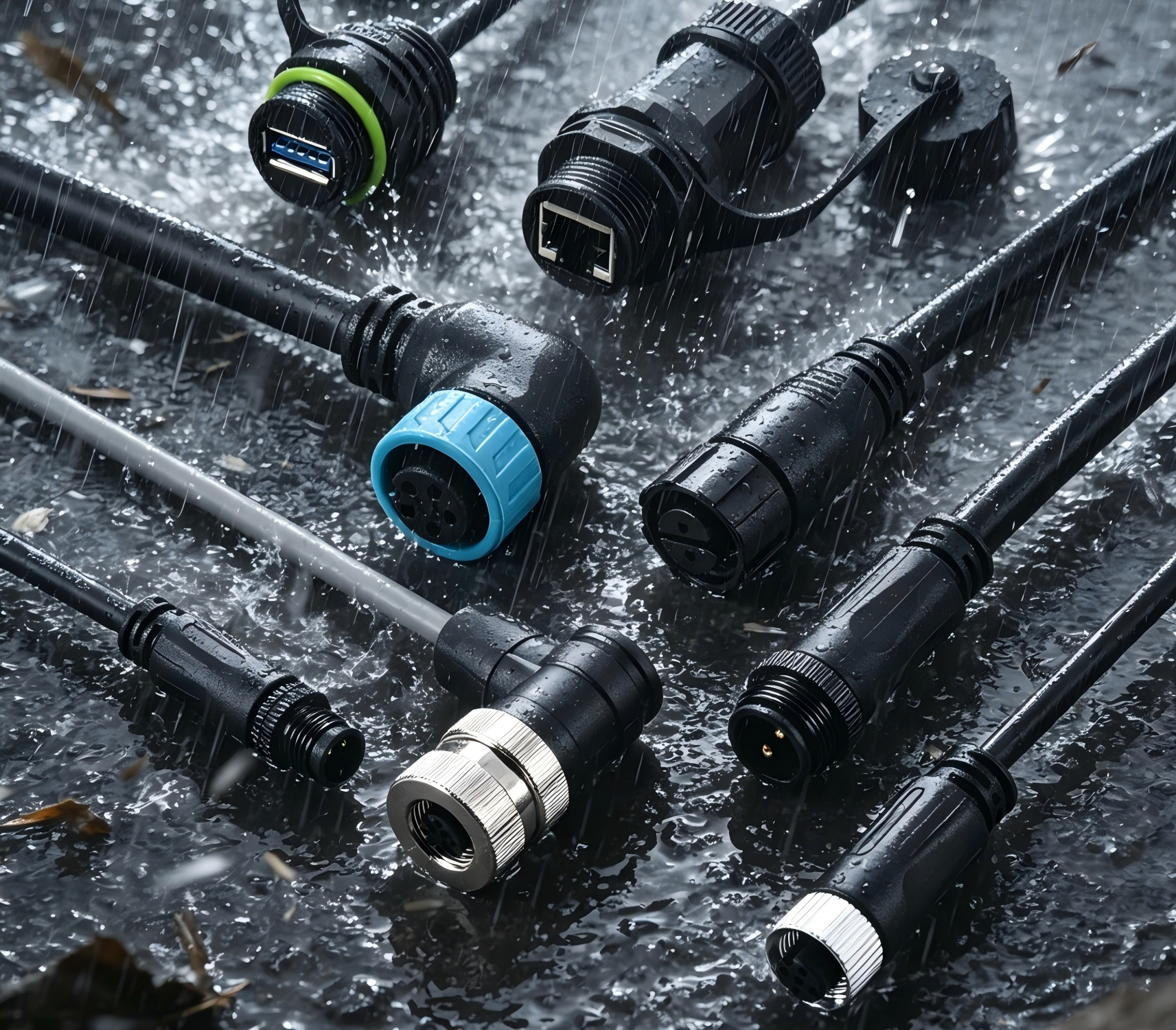

When electronic systems fail in the field, the culprit is often not a complex circuit malfunction—but something far simpler: water and dust. Moisture, debris, and contamination are among the leading causes of equipment failure in outdoor and industrial environments, with industry statistics showing that over 50% of equipment failures stem from non-electrical factors, primarily moisture and dust ingress.
Connectors are particularly vulnerable. As the points where power and signals enter or exit a device, they represent natural pathways for contaminants to invade and disrupt system operation. This is why understanding IP ratings is essential for any engineer selecting components for demanding applications.
This guide will walk you through everything you need to know about IP ratings for connectors—from the basics of the IEC 60529 standard to practical selection strategies—and introduce you to a reliable source for high-quality waterproof circular connectors.
1. What is an IP Rating?
“IP” stands for Ingress Protection (or International Protection). It is a standard defined by the International Electrotechnical Commission (IEC 60529) to measure a connector’s sealing effectiveness against the intrusion of solid foreign objects (like dust, dirt, or fingers) and liquids (like water or moisture).
2.The IP rating is usually expressed as IPXX, where:
The first digit indicates the level of protection against solid particles and dust.
The second digit indicates the level of protection against water ingress.
For example, a connector rated IP67 means: “6” = dust-tight (complete protection against dust ingress); “7” = protected against temporary immersion in water.
It is important to note that IP ratings for connectors typically apply only when the connectors are mated and locked. Achieving a specific IP rating requires careful design integration—connector housings, mating interfaces, seals, and cable entry points must all work together to maintain protection over time and under varying conditions.
Understanding the IP Rating Table
The IEC 60529 standard defines specific protection levels for each digit. Here is a breakdown:
First Digit — Solid Particle Protection
| First characteristic numeral | Brief description | Definition |
| 0 | Non-protected | – |
| 1 | Protected against solid foreign objects of 50 mm Ø and greater | The object probe, sphere of 50 mm Ø, shall not fully penetrate 1) |
| 2 | Protected against solid foreign objects of 12,5 mm Ø and greater | The object probe, sphere of 12,5 mm Ø, shall not fully penetrate 1) |
| 3 | Protected against solid foreign objects of 2,5 mm Ø and greater | The object probe, sphere of 2,5 mm Ø, shall not penetrate at all 1) |
| 4 | Protected against solid foreign objects of 1,0 mm Ø and greater | The object probe of 1,0 mm Ø, shall not penetrate at all 1) |
| 5 | Dust-protected | Ingress of dust is not totally prevented, but dust shall not penetrate in a quantity to interfere with satisfactory operation of the apparatus or to impair safety |
| 6 | Dust-tight | No ingress of dust |
Second Digit — Liquid Protection
| Second characteristic numeral | Brief description | Definition |
| 0 | Non-protected | – |
| 1 | Protected against vertically falling water drops | Vertically falling drops shall have no harmful effects |
| 2 | Protected against vertically falling water drops when enclosure tilted up to 15° | Vertically falling drops shall have no harmful effects when the enclosure is tilted at any angle up to 15° on either side of the vertical |
| 3 | Protected against spraying water | Water sprayed at an angle up to 60° on either side of the vertical shall have no harmful effects |
| 4 | Protected against splashing water | Water splashed against the enclosure from any direction shall have no harmful effects |
| 5 | Protected against water jets | Water projected in jets against the enclosure from any direction shall have no harmful effects |
| 6 | Protected against powerful water jets | Water projected in powerful jets against the enclosure from any direction shall have no harmful effects |
| 7 | Protected against the effects of temporary immersion in water | Ingress of water in quantities causing harmful effects shall not be possible when the enclosure is temporarily immersed in water under standardized conditions of pressure and time |
| 8 | Protected against the effects of continuous immersion in water | Ingress of water in quantities causing harmful effects shall not be possible when the enclosure is continuously immersed in water under conditions which shall be agreed between manufacturer and user but which are more severe than for numeral 7 |
| 9 | Protected against high pressure and temperature water jets | Water projected at high pressure and high temperature against the enclosure from any direction shall have no harmful effects |
Why Choose Circular Connectors for Harsh Environments?
Circular connectors have become the preferred choice for demanding industrial and outdoor applications, and for good reason. Their threaded coupling mechanisms provide secure, vibration-resistant connections that maintain seal integrity under mechanical stress. The circular form factor allows for efficient multi-pin configurations in a compact footprint, supporting simultaneous power and signal transmission.
Industrial circular connectors are used extensively in factory automation for connecting sensors, actuators, and control devices. They also play a vital role in smart city infrastructure—from traffic monitoring cameras to intelligent lighting systems—where reliable, weather-resistant connectivity is non-negotiable. As IoT deployments expand into outdoor and remote environments, the demand for robust circular connectors continues to grow.
When properly sealed with O-rings and locking mechanisms, circular connectors achieve the high IP ratings necessary for long-term reliability. Retention features like threaded couplings keep the connection secure under shock and vibration, while housing materials must resist UV exposure, chemicals, and temperature extremes without losing dimensional stability.
Applications of High-IP-Rated Circular Connectors
High-performance waterproof circular connectors are essential across a wide range of industries:
Industrial Automation & Robotics
Circular connectors connect sensors, actuators, and control devices in factory automation systems, with M12 connectors being a standard for robotic arms and conveyor systems. High IP ratings ensure reliable operation in dusty and moisture-prone production environments.
Outdoor LED Lighting
LED lighting systems used in streetlights, architectural lighting, and signage require IP67 or IP68-rated connectors to withstand rain, humidity, and temperature cycling year after year.
Smart City & IoT Infrastructure
Smart cities depend on stable connections between sensors, cameras, controllers, and networks. Waterproof circular connectors provide weather resistance, secure locking, anti-vibration options, and strong power/signal integrity for long-term outdoor use.
Marine and Underwater Equipment
For submersible sensors, underwater cameras, and marine navigation systems, IP68-rated connectors are critical. They must maintain sealing performance under continuous water exposure and pressure variations.
Renewable Energy Systems
Solar panel arrays and wind turbine monitoring systems operate in exposed outdoor environments where dust, rain, and temperature extremes are daily challenges. High-IP-rated circular connectors ensure maintenance-free operation over decades of service.
Transportation & Automotive
From electric vehicle charging systems to onboard sensors and battery management, waterproof circular connectors provide reliable connectivity under vibration, temperature swings, and moisture exposure.
Medical Equipment
Precision medical devices used in surgical settings or patient monitoring require connectors that can withstand regular cleaning and disinfection without compromising signal integrity or safety.
Food & Beverage Processing
Equipment in food production facilities undergoes frequent high-pressure, high-temperature washdowns. IP69K-rated connectors are specifically designed to withstand these harsh cleaning processes without degradation.
Key Design Factors That Affect IP Performance
Achieving a specific IP rating in a connector depends on how well each design element works together:
Sealing Materials
Seals at the mating interface, cable entry, and backshell must maintain compression over time and across temperature ranges. Common materials include silicone, EPDM, and FKM (fluorocarbon) O-rings, each offering different chemical resistance and temperature capabilities.
Locking Mechanisms
Retention features like threaded couplings or bayonet locks keep the connection secure under shock and vibration. A loose connection compromises the entire sealing system—no matter how good the O-rings are.
Housing Materials
Connector housings must resist UV radiation, chemicals, and temperature extremes without losing dimensional stability. Common options include high-performance plastics like PA66 (nylon) and metal housings for enhanced durability.
Cable Entry Sealing
Where cables enter the connector body is often the most vulnerable point. Proper strain relief and cable gland seals are essential for maintaining IP protection over the life of the assembly.
Mating Interface Design
Even if the plug and connector each meet IP ratings individually, this does not automatically create an IP-rated connection when mated. Unless the design incorporates an additional sealing mechanism such as a screw terminal interface, dust and moisture can still penetrate through the connection interface.
How to Select the Right IP Rating for Your Application
Choosing the correct IP rating is a strategic decision that directly impacts durability, compliance, and cost. Here is a practical guide:
Indoor, controlled environments (IP20–IP40)
If your application stays inside clean, dry facilities with no exposure to water or significant dust, lower IP ratings may be sufficient. These are suitable for control cabinets, indoor electronics, and office equipment.
Light industrial, occasional dust/splash (IP54)
For environments with limited dust exposure and occasional splashing, IP54 offers adequate protection for sensors and light industrial equipment.
Outdoor, rain and dust exposure (IP65–IP66)
Weather-exposed applications such as outdoor cameras, signage, and telecommunications equipment typically require IP65 or IP66. These ratings provide dust-tight seals and protection against water jets.
Temporary submersion (IP67)
If your equipment may be briefly submerged—for example, in puddles, during heavy rain, or in washdown scenarios—IP67 is the proven standard.
Continuous submersion (IP68)
For underwater sensors, marine equipment, or irrigation systems that remain submerged for extended periods, IP68 is required. Always verify the manufacturer’s specific immersion depth and duration claims.
High-pressure, high-temperature washdown (IP69K)
Food processing, pharmaceutical, and heavy sanitation environments where equipment is regularly cleaned with high-pressure hot water spray demand IP69K-rated connectors.
A note of caution: There is a common misconception that “higher IP ratings are always better.” In reality, selecting an excessively high protection level leads to unnecessary cost increases and design complexity, while insufficient protection may result in product returns and field failures. The key is matching the rating to your actual use case.
Introduction to YYE Connectors
At YYE Connectors (www.yyecon.com) , we specialize in the design and manufacturing of high-quality waterproof circular connectors and cables for demanding industrial, outdoor, and harsh environment applications.
Our product portfolio includes a comprehensive range of circular connectors engineered to achieve IP67, IP68, and higher protection ratings. With robust threaded coupling mechanisms, high-performance sealing materials, and durable housing options (including both high-grade plastic and metal variants), YYE connectors deliver reliable performance where it matters most.
Whether you need connectors for industrial automation, outdoor LED lighting, smart city infrastructure, marine equipment, or renewable energy systems, YYE Connectors offers solutions tailored to your specific requirements. Our engineering team works closely with customers to ensure every connector meets the necessary IP specifications and application demands.
Why Choose YYE Circular Waterproof Connectors?
- Certified IP Ratings: YYE connectors are rigorously tested to meet IP67, IP68, and higher standards under IEC 60529 conditions
- Durable Construction: High-quality housing materials resist UV exposure, chemicals, and temperature extremes
- Secure Locking Mechanisms: Threaded couplings provide vibration-resistant sealing that maintains integrity over time
- Multi-Pin Configurations: From compact 2–3 pin designs to high-density multi-contact configurations supporting simultaneous power and signal transmission
- Wide Temperature Range: Engineered to perform reliably from -40°C to over +90°C for demanding environments
- Factory Direct: Competitive pricing, quality control, customization options, and direct technical support from manufacturer
Call to Action
Don’t let water and dust compromise your system’s reliability. Explore YYE’s full range of waterproof circular connectors at www.yyecon.com .
Contact us to get our product catalog, request samples, or contact our engineering team for assistance in selecting the right IP-rated connector for your application. From standard off-the-shelf solutions to custom designs, YYE Connectors is your trusted partner for rugged, reliable connectivity in the harshest environments.
Have questions about IP ratings or need help selecting the right connector? Visit www.yyecon.com or contact our technical support team today.
