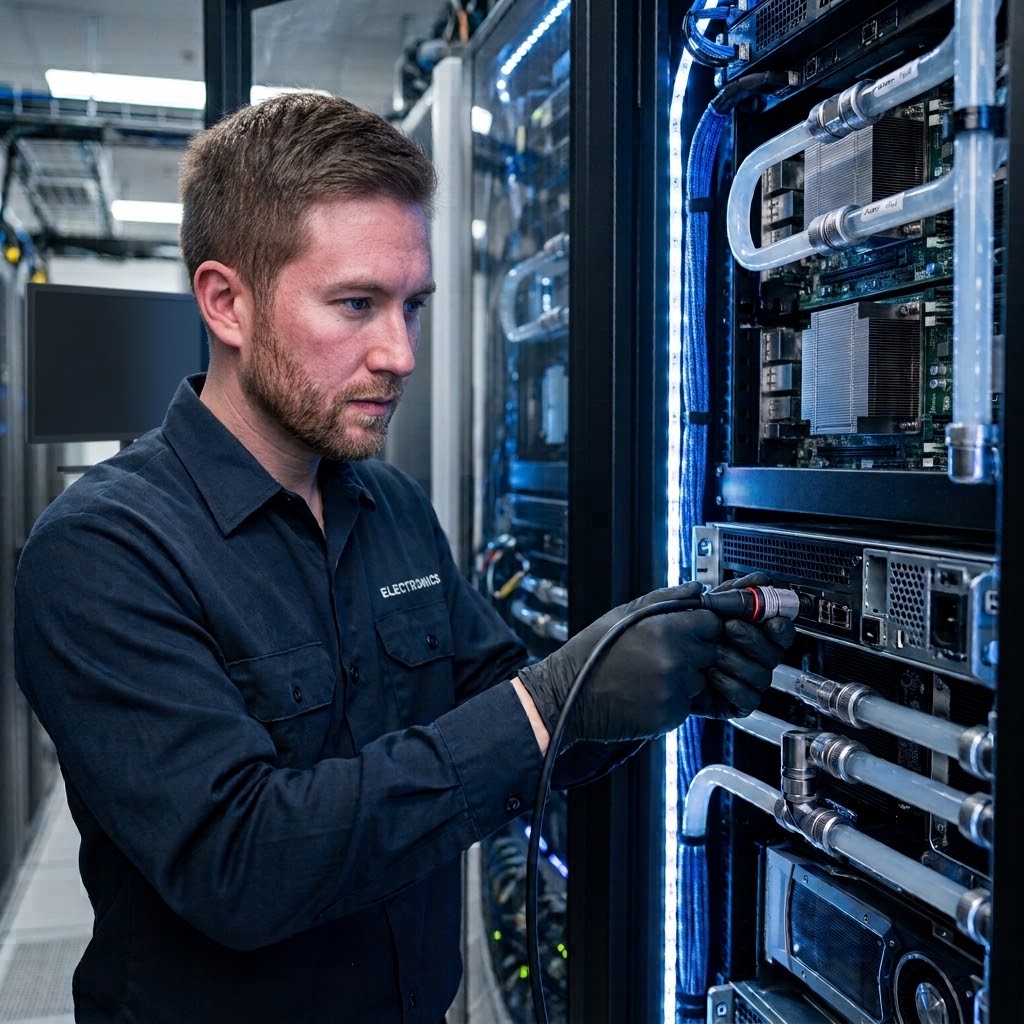

Powering Next-Gen AI Clusters: Advanced Waterproof Cable Assemblies for Liquid-Cooled Server Racks
The rapid rise of artificial intelligence and high-performance computing (HPC) has fundamentally transformed data center architecture. As GPU clusters push compute densities to unprecedented levels, high-power AI server racks now consume anywhere from 30 kW to over 100 kW per rack. To manage this extraordinary heat output, the industry is rapidly transitioning from traditional air cooling to Direct-to-Chip (D2C) liquid cooling and immersion cooling systems.
While liquid cooling solves the thermal bottleneck, it introduces a critical challenge: moisture, coolant micro-leaks, and condensation inside densely packed server racks.
In high-voltage, high-current environments, even a trace amount of moisture or coolant seepage can compromise insulation, trigger electrical arcing, and cause catastrophic hardware failure. To ensure uninterrupted uptime, engineering teams are upgrading from standard power cables to ruggedized, waterproof, and anti-condensation cable assemblies.
Here is a deep dive into how specialized waterproof cable assemblies protect high-density AI infrastructure—and what key features to evaluate when selecting custom interconnects.
1. High-Flexibility Design & Tight Bend Radii for Dense Rack Spaces
AI server racks are crowded environments. Between liquid manifolds, coolant distribution units (CDUs), cold plates, and dense GPU board arrays, internal routing space is extremely limited.
Standard high-power industrial cables are often rigid and bulky due to thick insulation and heavy outer jacketing. Bending them in tight spaces puts excessive mechanical stress on connectors and printed circuit boards (PCBs).
High-Flex Conductors: Premium waterproof cable assemblies use fine-stranded, highly flexible copper conductors coupled with custom TPU (Thermoplastic Polyurethane) or silicone overmolding.
Optimized Outer Diameter (OD): Advanced molding techniques allow for a smaller cable outer diameter without sacrificing voltage insulation or IP68 ingress protection.
Stress-Free Routing: A tighter bend radius allows engineers to route high-current power lines smoothly around liquid cooling pipes without risking cable strain or terminal dislodgement.
- Blind-Mating & Anti-Arcing Hot-Swappable Interfaces
In large-scale AI data centers, maintaining high availability (Uptime) requires rapid, frictionless maintenance. Technicians need to hot-swap power distribution units (PDUs), battery backup systems (BBUs), or server blades quickly without shutting down entire racks.
However, hot-swapping connectors in an environment where humidity or micro-condensation might be present carries a severe risk of electrical arcing.
Blind-Mating Precision: Custom waterproof cable assemblies feature self-aligning mechanical keying and polarized housings, allowing technicians to make secure connections in zero-visibility, tight rack spaces.
Sequential First-Mate/Last-Break (FMLB) Contacts: Ground pins connect first and disconnect last. Combined with delayed signal pin architecture, this mechanism safely shuts down power before full disconnection, preventing hazardous electrical arcs in humid conditions.
3. Vibration-Proof Locking Mechanisms Against High-RPM Fans & Fluid Dynamics
Modern AI racks rely on hybrid cooling architectures, utilizing both high-pressure liquid pumps and ultra-high-RPM auxiliary fans. Over time, fluid pulsations in cooling pipes and continuous high-frequency fan vibrations can compromise standard electrical connections.
Vibration leads to fretting corrosion—a process where tiny microscopic movements wear away contact plating, increasing electrical resistance, generating localized heat, and creating micro-gaps where moisture can seep in.
Secondary Locking Mechanisms: High-reliability waterproof cable assemblies incorporate Terminal Position Assurance (TPA), Connector Position Assurance (CPA), or bayonet/threaded self-locking collars.
Gas-Tight Seals: Constant spring-loaded pin contact pressure and compression-fit O-rings ensure that vibration cannot degrade electrical conductivity or break the IP67/IP68 airtight seal over years of continuous operation.
4. Hybrid Power & Signal Integration to Streamline Rack Architecture
To actively monitor liquid cooling efficiency and detect leaks early, modern AI racks are outfitted with an array of environmental sensors (temperature, pressure, flow rate, and moisture detection sensors).
Deploying separate cable runs for power distribution and sensor data increases cable clutter, restricts airflow, and complicates rack cable management.
All-in-One Cable Design: Hybrid waterproof cable assemblies integrate high-current power conductors (e.g., 50A–150A) alongside shielded low-voltage signal pairs (such as CAN bus, RS485, or temperature sensor lines) within a single overmolded connector head.
Space & Cost Optimization: Hybrid cables reduce the number of connection points by 50%, minimizing potential failure points, reducing installation time, and optimizing airflow inside the cabinet.
5. Comprehensive Quality Assurance Matrix for AI Cable Assemblies
In AI infrastructure, a single cable failure can halt an LLM training run costing millions of dollars in wasted compute time. Uncompromising quality control during manufacturing is non-negotiable.
The following matrix outlines the key testing procedures used to guarantee zero-defect reliability for liquid-cooled AI environments:
| Testing Parameter | Testing Method & Standard | Primary Objective | Risk Prevented |
| Airtight Sealing | Positive / Negative Pressure Air Leakage Testing (Helium Sensing) | Verifies 100% IP67/IP68 ingress protection on overmolded connector joints | Prevents coolant seepage and condensation ingress |
| Dielectric Strength | Hi-Pot (High Voltage) & Insulation Resistance Test | Ensures insulation integrity under high dielectric voltage stress | Prevents electrical short circuits and current leakage |
| Thermal Performance | Full-Load Continuous Amperage Test ($\Delta T \le 30^\circ\text{C}$) | Evaluates temperature rise under maximum current draw | Prevents thermal overload and terminal degradation |
| Mechanical Integrity | Pull-Force, Flex Resistance, & High-Frequency Vibration Testing | Tests structural durability against fluid dynamics and fan vibration | Prevents terminal dislodgement and fretting corrosion |
Frequently Asked Questions (FAQ)
Q1: Why are standard IP20/IP40 data center cables insufficient for liquid-cooled AI racks?
Standard indoor data center cables lack environmental sealing. In liquid-cooled racks, micro-dripping from quick-disconnect couplings or surface condensation caused by temperature differentials can easily penetrate non-sealed connectors, leading to short circuits, corrosion, and equipment failure.
Q2: What IP rating is recommended for AI server rack power cables?
For liquid-cooled AI environments, IP67 or IP68 ratings are recommended for all power cable connection points. IP67 protects against temporary immersion and coolant splashes, while IP68 ensures long-term protection under continuous moisture exposure.
Q3: Can custom overmolded waterproof cables resist liquid coolant chemicals?
Yes. Specialized outer jacketing materials like TPU, TPE, or Fluoropolymer (PTFE) are specifically selected for their high chemical resistance. They do not swell, crack, or degrade when exposed to liquid cooling fluids such as deionized water, ethylene glycol mixtures, or dielectric fluorinated liquids.
Q4: How do custom hybrid cables prevent Electromagnetic Interference (EMI) between power and signal lines?
Custom hybrid cables feature individual foil or braided shielding around low-voltage signal pairs inside the cable jacket. This creates a protective Faraday cage, preventing high-current power lines from inducing noise into sensitive sensor and control data transmissions.
Conclusion
As AI server racks push power and thermal limits to new heights, interconnects can no longer be an afterthought. The integration of liquid cooling demands a shift toward rugged, flexible, and high-current waterproof cable assemblies designed to resist moisture, withstand continuous vibration, and optimize limited rack space.
By partnering with an experienced interconnect manufacturer capable of precision insulator molding, custom overmolding, and 100% airtightness testing, AI hardware developers and data center operators can build reliable, future-proof compute infrastructure that runs safely 24/7.
