How Heavy-Duty M25 Waterproof Cable Assemblies Power Motors and Actuators in Washdown Environments

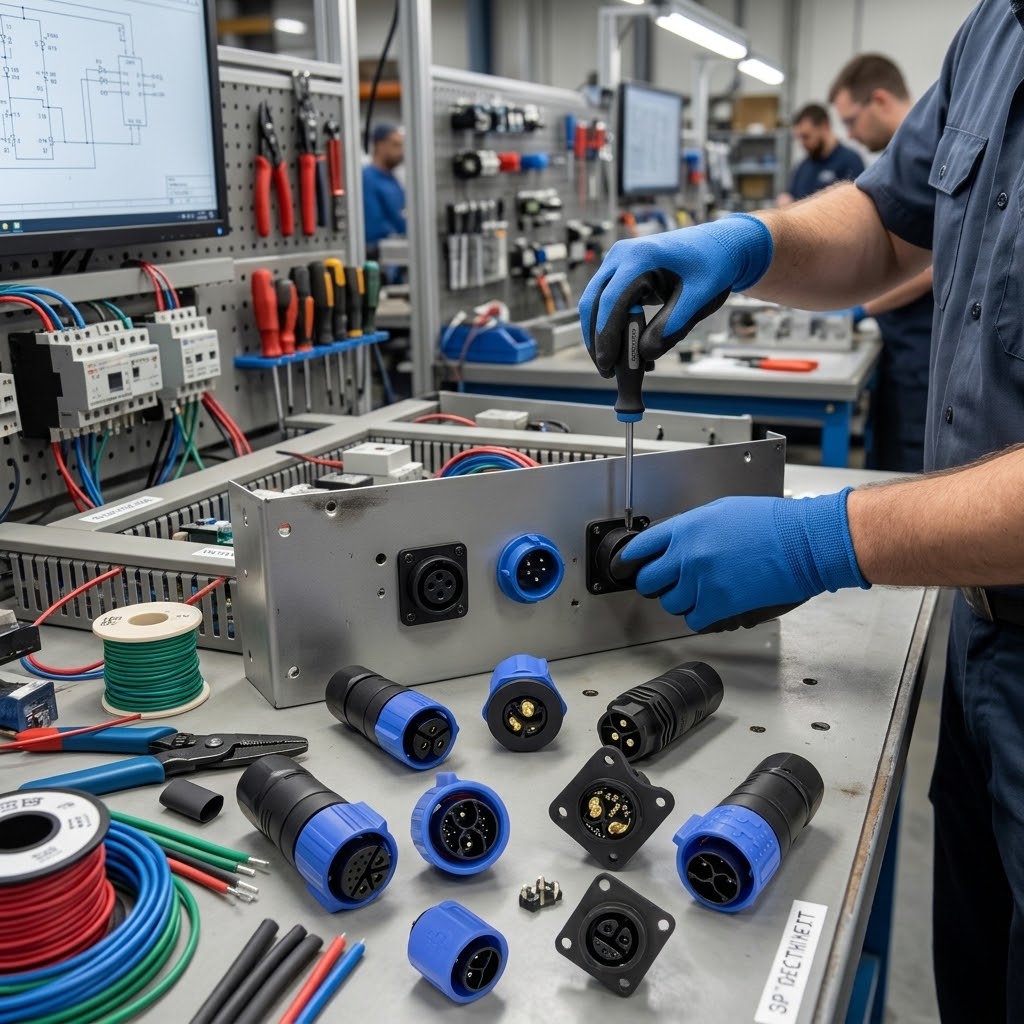

Introduction
In modern industrial automation, food processing, packaging, and chemical manufacturing, high-power electric motors and linear actuators serve as the core muscle of production lines. However, these critical components operate under relentless stress. They must endure continuous high-power electrical loads while facing harsh environmental hazards—most notably, daily high-pressure, high-temperature washdowns, persistent mechanical vibration, and electromagnetic interference (EMI).
Selecting the right interconnect solution is vital to preventing catastrophic downtime. Among various circular connector sizes, heavy-duty M25 waterproof cable assemblies have become the industry standard for delivering reliable power and control signals to motors and actuators in extreme environments. In this article, we explore five key reasons why engineers rely on M25 overmolded cable assemblies for heavy-duty applications.
1. Superior IP68 & IP69K Waterproofing Against Aggressive Washdowns
The Challenge: Hygiene-sensitive industries such as food and beverage, pharmaceuticals, and marine processing require rigorous daily sanitation. Equipment is regularly blasted with hot, high-pressure water jets mixed with harsh chemical detergents. Standard commercial connectors often fail in these conditions due to moisture seepage.
The M25 Industrial Solution: Overmolded M25 cable assemblies provide a seamless, hermetically sealed interface that achieves IP68 (long-term immersion protection) and IP69K (protection against high-pressure, high-temperature washdowns up to 80°C and 100 bar) ratings. The factory overmolding process completely encapsulates the inner wire terminations, eliminating air gaps and preventing moisture from creeping into the motor housing via water wicking—a common failure mode in poorly sealed cables. Furthermore, high-grade TPU or PVC outer jackets resist chemical corrosion from acidic and alkaline cleaning agents.
2. Optimized Current-Carrying Capacity and Wire Gauge Flexibility
The Challenge: Heavy-duty industrial motors and actuators draw substantial starting currents and require continuous high-power transmission. Undersized connectors and thin wires create high electrical resistance, resulting in excessive heat buildup, voltage drop, and premature insulation failure.
The M25 Industrial Solution: Compared to smaller sizes like M12 or M16, the larger internal diameter of the M25 housing accommodates significantly larger wire gauges (such as 12 AWG or 10 AWG). This ensures robust current-carrying capacity and low operating temperatures during full-load operations.
Below is a quick comparison of circular connector sizes and their typical electrical/mechanical capabilities in motor applications:
| Connector Series | Typical Housing Diameter | Max. Supported Wire Gauge | Primary Motor Application Focus | IP Rating Level |
| M12 | ~14.5 mm | Up to 18–22 AWG | Low-power sensors, micro-actuators, low-current signals | IP67 / IP68 |
| M16 | ~19.0 mm | Up to 16–18 AWG | Small stepper motors, standard control signals | IP67 / IP68 |
| M25 | ~28.0 mm | Up to 10–12 AWG | High-power industrial motors, servo drives, heavy actuators | IP68 / IP69K |
Robust Strain Relief and Vibration Resistance
The Challenge: Industrial motors and linear actuators vibrate continuously during high-speed rotation or rapid directional shifts. This persistent mechanical stress frequently causes loose screw terminals, metal fatigue, or broken solder joints in conventional field-wired connectors.
The M25 Industrial Solution: Custom overmolded M25 connectors integrate an engineered strain relief boot that grips the cable jacket securely. This design absorbs and distributes mechanical bending and pulling stresses away from the internal termination points. Combined with a secure threaded locking mechanism, M25 assemblies remain completely locked and vibration-proof, ensuring uninterrupted power delivery even under heavy mechanical shock.
3. Integrated Hybrid Layouts for Power and Signal Transmission
The Challenge: Modern smart motors, servo systems, and automated actuators are becoming more complex. They require not only heavy power supply lines but also sensitive encoder feedback signals and real-time control data. Running separate cables for power and data increases installation complexity, component costs, and the machine’s overall footprint.
The M25 Industrial Solution: M25 connectors offer versatile multi-pin and hybrid pin arrangements. A single M25 cable assembly can be engineered to simultaneously transmit high-voltage power and multi-channel low-voltage control signals. This consolidation drastically reduces cable clutter, simplifies cable routing through drag chains or cable carriers, and minimizes the number of panel cutouts required on the motor housing.
4. 360° EMC Shielding to Prevent Electromagnetic Interference
The Challenge: High-power industrial motors driven by Variable Frequency Drives (VFDs) generate significant electromagnetic noise and radio frequency interference (EMI/RFI). If unshielded, this electrical noise can easily corrupt sensitive encoder feedback data, sensor readings, and adjacent control lines, leading to erratic motor behavior or system errors.
The M25 Industrial Solution: Heavy-duty M25 waterproof cable assemblies can be built with 360° full-metal shielding, incorporating a tinned copper braid and aluminum foil shield connected directly to the metal connector shell. This creates a continuous Faraday cage around the internal conductors, effectively suppressing external and self-generated EMI to maintain pristine signal integrity.
5. Frequently Asked Questions (FAQ)
Q: What is the main difference between an overmolded M25 cable assembly and a field-installable M25 connector for motor applications?
A: Field-installable connectors allow on-site wire attachment using screw or crimp terminals, offering flexibility during initial setup. However, overmolded M25 cable assemblies provide significantly higher reliability in harsh industrial environments. The factory overmolding process completely encapsulates the cable-to-connector junction with high-grade TPU or PVC materials, forming a single, solid piece. This delivers superior IP68/IP69K waterproofing, stronger strain relief, and absolute immunity to internal wire loosening caused by continuous motor vibration—making overmolded assemblies the ultimate choice for demanding washdown and heavy-duty applications.
6. Conclusion & Call to Action
Reliable power and signal transmission are critical to avoiding costly, unexpected downtime in demanding industrial environments. Heavy-duty M25 overmolded cable assemblies combine high-power capacity, IP69K washdown resistance, robust vibration endurance, and 360° EMI shielding into a single, reliable solution.
Looking for Custom M25 Waterproof Cable Assemblies for Your Equipment? At YYE, we specialize in custom cable assembly manufacturing tailored to your exact industrial specifications—including custom wire gauges, pin layouts, specific cable lengths, and specialized overmolding materials. Contact our engineering team today to request a quote or order samples for your next project!
