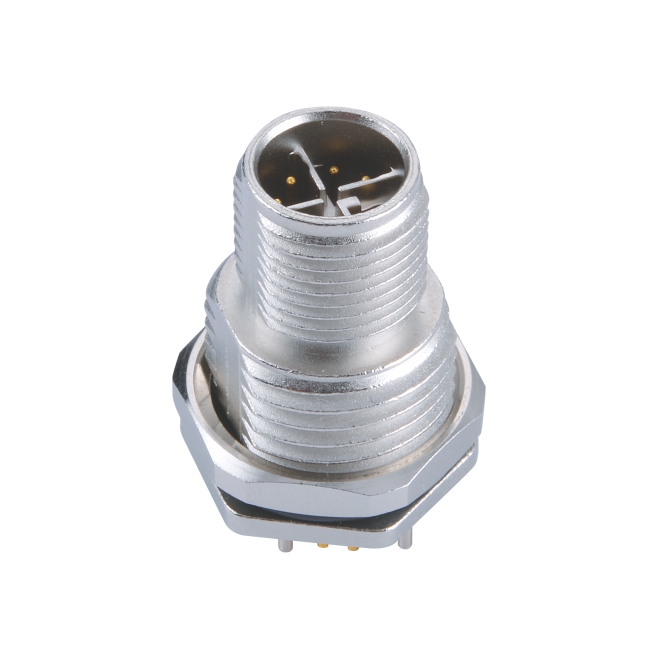

M12 X-Code 8 Pin Panel Mount Connector for High-Speed Industrial Ethernet
M12 X-Code 8 Pin Panel Mount Connector for High-Speed Industrial Ethernet
Product Specifications
Product Description
Designed for demanding industrial environments, the M12 X-Code 8 Pin Panel Mount Connector delivers ultra-fast, highly reliable data transmission supporting up to 10 Gbps Ethernet performance. Featuring an advanced X-coded shielding structure, it effectively insulates each pair of signal lines to eliminate internal crosstalk, ensuring high signal integrity and superior anti-interference capabilities even in electrically noisy settings.
Engineered with a robust nickel-plated brass metal housing and gold-plated copper contacts, this connector offers exceptional mechanical durability and outstanding conductivity. Its panel-mount configuration provides a secure, vibration-resistant connection directly to industrial control cabinets, automation devices, and PCB interfaces. Rated IP67/IP68 for ingress protection, it guarantees total defense against dust, moisture, and water submersion.
This M12 X-coded connector is widely utilized across industrial automation, robotics, machine vision, smart factories, railway transportation, and outdoor CCTV systems. Built to withstand extreme temperature fluctuations and harsh operating conditions, it provides an efficient, space-saving solution for modern high-speed communication networks.
Key Features
- Fully supports Cat6A Ethernet speeds up to 10 Gbps for high-bandwidth industrial communications
- Internal cross-shaped metallic separator insulates four signal pairs to minimize internal crosstalk and EMI/RFI interference
- Heavy-duty sealing design prevents ingress of water, oil, and dust, making it ideal for harsh outdoor and industrial environments
- Precision-machined nickel-plated brass shell delivers excellent impact resistance, vibration resistance, and corrosion protection
- Premium copper alloy contacts with gold plating ensure low contact resistance, superior conductivity, and long-term mating durability
- Designed for easy and secure panel or enclosure integration with PCB DIP/solder termination options
