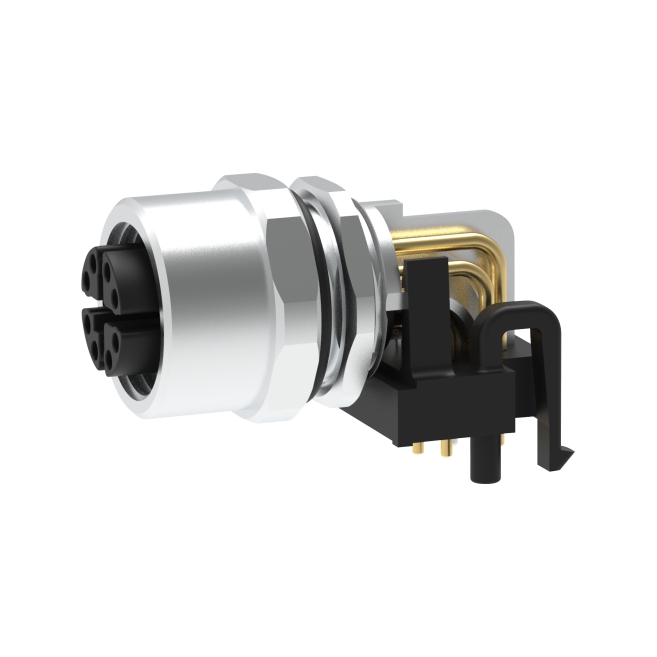

IP67 Waterproof M12 X Code Right Angle Female Connector Panel Mount PCB Solder Type

The M12 right-angle female PCB panel mount connector is engineered for space-constrained electronic architectures requiring high-density integration and uncompromising environmental protection. Specifically tailored for industrial automation, smart sensors, robotics, and automotive electronics, its 90-degree pin design minimizes chassis depth while maximizing internal PCB layout efficiency.

Built with a heavy-duty nickel-plated brass shell and flame-retardant LCP insulator, this circular connector achieves an IP67 rating when mated. The precision-engineered rubber O-ring and threaded locking system shield internal circuitry against dust, moisture, oils, and severe mechanical vibration in harsh operating environments.

The high-conductivity brass contacts feature premium gold plating over nickel, delivering low electrical resistance, anti-oxidation protection, and long-term mating durability. Designed with direct PCB solder terminals, it seamlessly integrates into standard wave soldering or manual assembly processes, ensuring a robust connection between the external cable assembly and the internal circuit board.

Operating within a broad temperature range of -40°C to +105°C, this connector complies with global standards, including RoHS, REACH, and IEC specifications. Whether deployed in factory automation, IIoT gateways, or rugged vehicle control units, this right-angle receptacle provides a high-reliability interconnect solution. Custom options, including pin counts, coding types (A, B, D-Code), and specialized contact plating, are fully supported to meet your OEM project requirements.

Key Features

• Features a robust metallic housing and precision O-ring seal to protect against dust and liquid ingress in harsh environments
• Right-angle female pin orientation allows for direct 90-degree PCB mounting, making it ideal for compact device layouts
• Equipped with a front/rear panel mounting hex nut and threaded mating interface for secure chassis installation and vibration resistance
• Solid brass pins with gold plating ensure low contact resistance, high conductivity, and long mating cycle durability
• Engineered to withstand extreme operating temperatures, thermal cycling, and mechanical stress in demanding applications
• Fully customizable pin counts, coding options (A/B/D-Code), and plating thickness to match your specific engineering drawings
