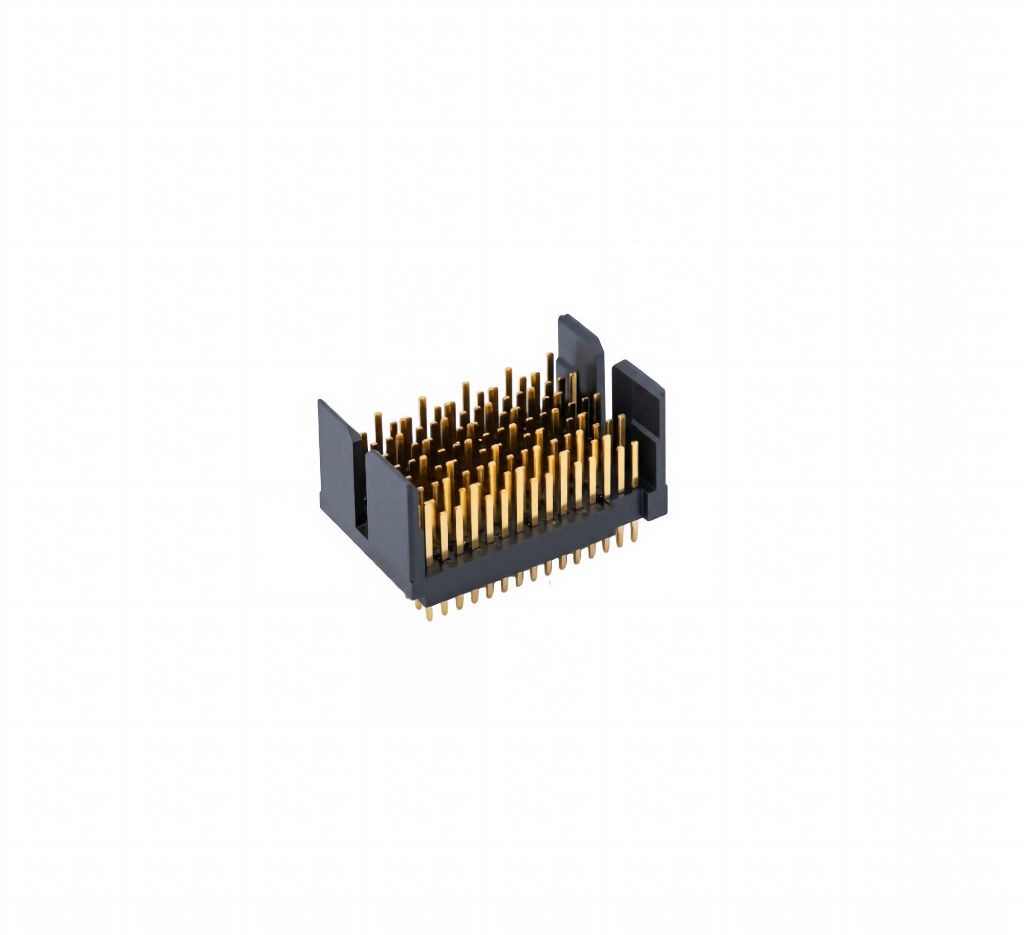

High-Speed Backplane Header Assembly 2065799-1 Equivalent for Telecom Servers, Core Routers, and Data Center Switches

The Z-PACK TinMan High-Speed Backplane Header Assembly (5x8 Open Seq) is a premium high-density interconnect engineered as a cost-effective, direct pin-to-pin replacement for TE Connectivity P/N 2065799-1. Designed for robust signal integrity in next-generation computing architectures, this vertical male header provides high throughput between system backplanes and daughtercards.

PCB Mounting & Mating Setup: Featuring solderless press-fit (compliant pin) termination onto backplane motherboards, this connector ensures exceptionally clean signal paths and reliable mechanical board retention. Its sequential contact loading (Open Seq) provides ground-first/signal-last mating, preventing electrostatic discharge (ESD) and power surges during live-swapping of daughtercards.

Primary Application Scenarios: Engineered for demanding high-frequency hardware, this TinMan equivalent header is widely deployed in 5G telecom base stations, core edge routers, enterprise rack servers, cloud data center switches, and industrial supercomputing chassis.

Key Features

• 2065799-1 Equivalent: Seamless drop-in replacement cuts procurement costs for server chassis manufacturers.
• Sequential Mating for Live-Swapping: First-mate ground pins protect sensitive chips during server board hot-plugging.
• 11.5+ Gbps Speed for Telecom: Low-crosstalk differential pairs guarantee error-free data transfer in 5G routers.
• Press-Fit Mount for Motherboards: Solderless compliant pins simplify mass assembly on multi-layer backplane PCBs.
• Plating for Data Centers: Heavy gold plating resists oxidation in non-stop operating server environments.
