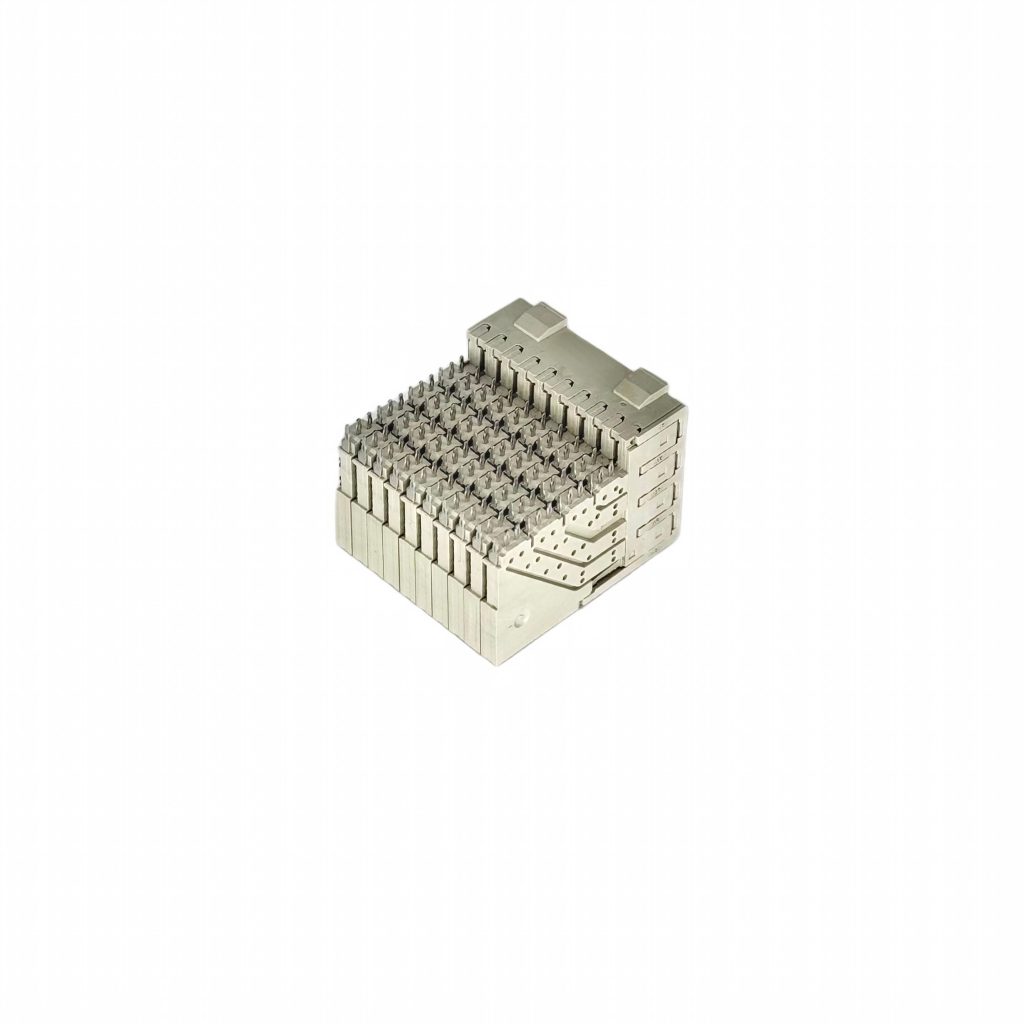

High-Speed Receptacle Daughtercard Connector for Telecom Backplanes, Servers, and Networking Switches

High-Speed Receptacle Daughtercard Connector is a high-density, differential-pair backplane interconnect designed as a direct equivalent to TE Connectivity P/N 6469001-1. Engineered to meet the demanding signal integrity requirements of modern high-speed architectures, this right-angle female receptacle provides a robust interface between daughtercards and backplane motherboards.

PCB Termination & System Setup: Featuring press-fit (compliant pin) terminations onto rigid multi-layer PCBs, this connector eliminates the need for soldering while ensuring secure mechanical retention and low insertion force. It mates directly with standard Z-PACK HM-Zd backplane pin headers, establishing a 100-ohm matched differential transmission line across system backplanes.

Primary Application Scenarios: Built for high-throughput data environments, this high-speed backplane connector is extensively deployed in telecom core routers, enterprise servers, cloud data center switches, industrial computing chassis, and advanced military/aerospace communication systems.

Key Features

• 6469001-1 Equivalent: Drop-in pin-to-pin replacement saves procurement costs for server chassis manufacturers.
• 10+ Gbps Speed for Telecom: Optimized differential pair design minimizes crosstalk in high-speed router backplanes.
• Press-Fit PCB Mount for Servers: Solderless compliant pin design simplifies assembly and repair on thick server daughtercards.
• 100-Ohm Impedance for Switches: Precise impedance matching guarantees clean signal transmission in data center switches.
• High-Density Grid for Rack Systems: Compact multi-row layout saves vital PCB space in 1U/2U rackmount computing systems.
