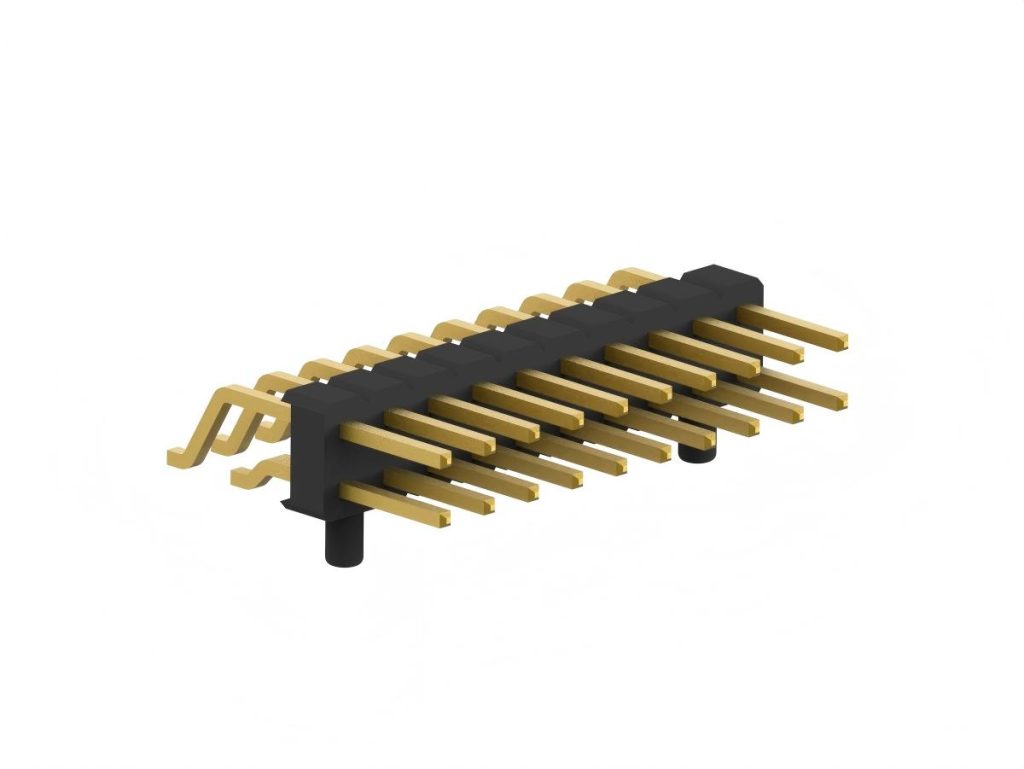

2.54mm(.100in) Pitch Pin Header Height2.54 Dual Row Horizontal SMT(Surface Mount) With Peg
2.54mm(.100in) Pitch Pin Header Height2.54 Dual Row Horizontal SMT(Surface Mount) With Peg
Product Specifications
Product Description
The 2.54 mm Pin Header Series is a widely used interconnection solution designed for reliable board-to-board and wire-to-board connections. With a standard 2.54 mm (0.1 inch) pitch, these pin headers are fully compatible with most PCB designs and industry-standard connectors.
Manufactured with high-quality materials, the pins are made of brass or phosphor bronze with gold or tin plating to ensure excellent electrical conductivity, corrosion resistance, and long service life. The insulating housing is molded from high-temperature thermoplastic, suitable for both wave soldering and reflow soldering processes.
This series is available in multiple configurations, including single-row and double-row options, various pin counts, straight or right-angle orientations, and different pin lengths. It is ideal for applications such as development boards, industrial control systems, consumer electronics, communication equipment, and embedded systems.
Key Features
- 0.100" (2.54mm) pitch for standard PCB layouts
- Customize pins, pitch,height,length
- Compliance with REACH, ISO, RoHS
- Small footprint, high connection density
- Fully automated production for consistent quality
- 100% CCD visual inspection to ensure defect-free products
