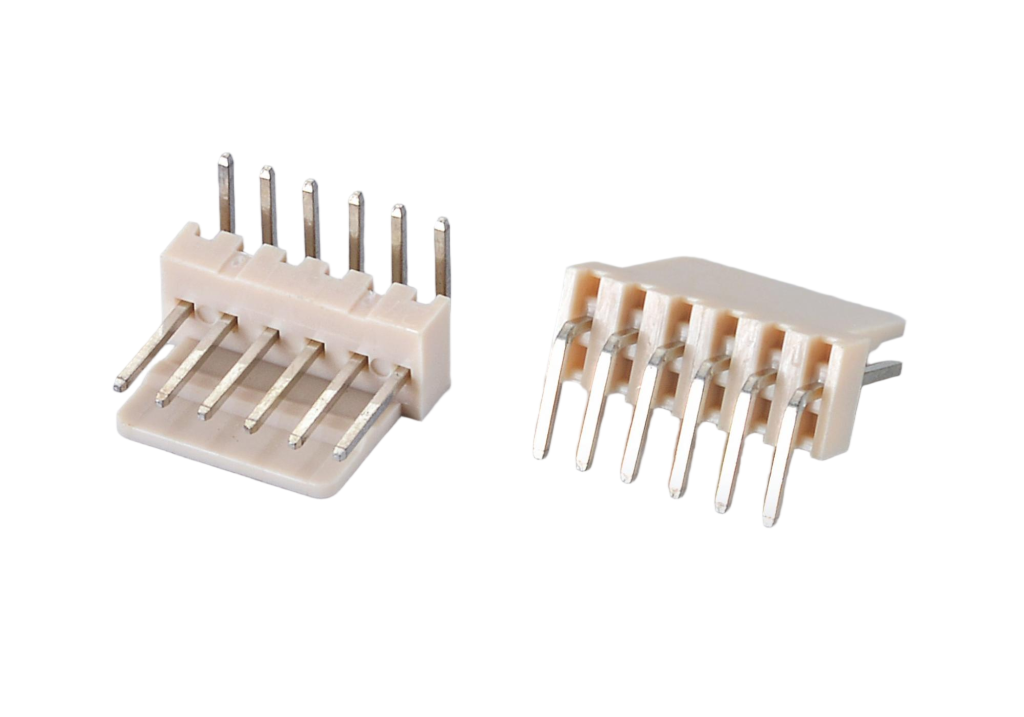

2.54mm 0.100 inch Pitch Vertical DIP Molex 2.54mm Wafer Socket for DIN-Rail Controller
2.54mm 0.100 inch Pitch Vertical DIP Molex 2.54mm Wafer Socket for DIN-Rail Controller
Product Specifications
Current Rating3 Amp
Insulator Resistance5000 Megohms Min
Dielectric WithstandingAC 1000 V
No. of Positions2-20Pin
OrientationVertical
Contact MaterialCopper Alloy
Insulator MaterialOptional: PBT,PA6T,PA9
Flame RatingUL 94V-0
Plating OptionTin
Insulator HighOptional
Product Description
This 2.54mm Pitch Wafer Connector is precision-engineered for PLC (Programmable Logic Controller) expansion modules and Industrial I/O systems. In high-density DIN-rail control environments, these headers provide a reliable wire-to-board interface for signal transmission and power distribution. Available in both vertical and right-angle configurations, they allow engineers to maximize PCB space within narrow industrial enclosures. The friction-lock design ensures secure mating in high-vibration factory environments, making it the preferred choice for OEM/ODM manufacturers of motor drivers, sensor hubs, and automated control cabinets.
Key Features
- 0.100" (2.54mm) pitch for standard PCB layouts
- Customize pins, pitch,height,length
- Compliance with REACH, ISO, RoHS
- High Signal Integrity: Precision-engineered contacts provide reliable electrical performance for high-speed signal and data transmission.
- Fully automated production for consistent quality
- 100% CCD visual inspection to ensure defect-free products
