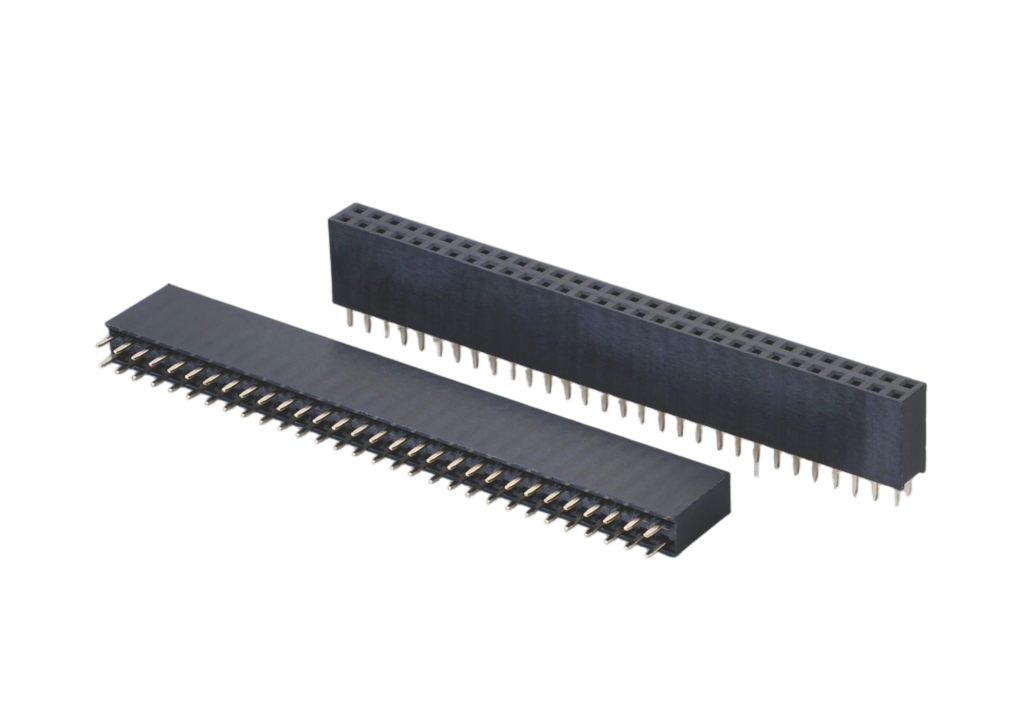

2.54 mm 0.100inch pitch female header for Arduino, Raspberry Pi Board
2.54 mm 0.100inch pitch female header for Arduino, Raspberry Pi Board
Product Specifications
Rated Current3.0A AC/DC
Insulator Resist ance5000 Megohms Min
Dielectric Withs tandingAC 1000 V
No. of Positions2-80PIN
OrientationVertical
Contact MaterialCopper Alloy
Insulator MaterialOptional:PA6T;PA9T
Flame RatingUL 94V-0
Plating OptionTin；Gold
Insulator High11.0mm
Product Description

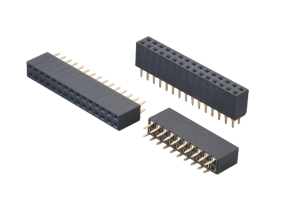

The 2.54mm Dual Row Female Header, featuring an 11.0mm profile height, is built for high-reliability board-to-board stacking. With a 180° Straight DIP design, it simplifies through-hole assembly on standard PCBs, ensuring ease of installation.
Its extended 11.0mm plastic body offers the necessary clearance to accommodate taller components between stacked boards. This makes the connector particularly well-suited for modular electronics and industrial automation systems, where space efficiency and reliable performance are essential.
Key Features
- 0.100" (2.54mm) pitch for standard PCB layouts
- Customize pins, pitch,height,length
- Compliance with REACH, ISO, RoHS
- High Signal Integrity: Precision-engineered contacts provide reliable electrical performance for high-speed signal and data transmission.
- Fully automated production for consistent quality
- 100% CCD visual inspection to ensure defect-free products
