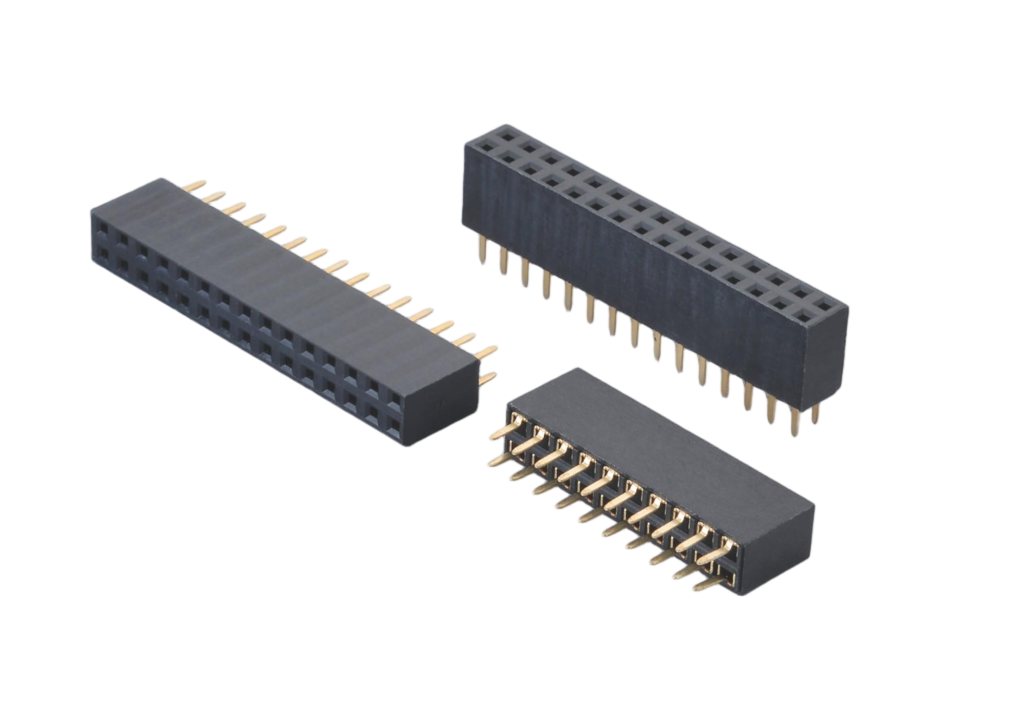

2.54 mm 0.100inch pitch through-hole (THT) female header dual row vertical DIP for networking equipment and servers
2.54 mm 0.100inch pitch through-hole (THT) female header dual row vertical DIP for networking equipment and servers
Product Specifications
Rated Current3.0A AC/DC
Insulator Resist ance5000 Megohms Min
Dielectric Withs tandingAC 1000 V
No. of Positions2-80PIN
OrientationVertical
Contact MaterialCopper Alloy
Insulator MaterialOptional:PA6T;PA9T
Flame RatingUL 94V-0
Plating OptionTin；Gold
Insulator High5.0mm
Product Description
The 2.54mm Pitch Dual Row Female Header, with a high-profile 11.0mm insulator height, is expertly designed for precise board-to-board stacking in various electronic applications. Featuring a 180° Straight DIP (Through-Hole) termination, it provides a secure and stable connection on any standard PCB, ensuring reliability in demanding environments.
The extended body height of this connector is particularly beneficial in applications where additional clearance between stacked boards is necessary, such as when accommodating taller components or enhancing thermal airflow. This feature makes it an excellent choice for designs that require both space optimization and improved heat management.
Key Features
- 0.100" (2.54mm) pitch for standard PCB layouts
- Customize pins, pitch,height,length
- Compliance with REACH, ISO, RoHS
- High Signal Integrity: Precision-engineered contacts provide reliable electrical performance for high-speed signal and data transmission.
- Fully automated production for consistent quality
- 100% CCD visual inspection to ensure defect-free products
