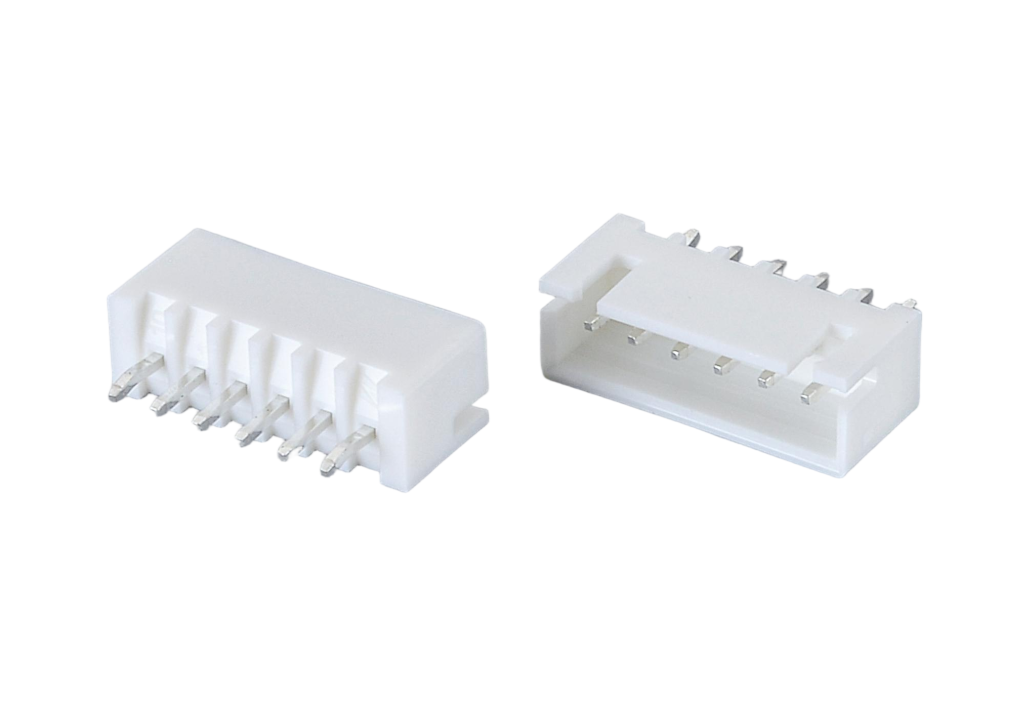

2.50mm 0.098 inch Horizontal DIP With K Wafer Socekt for Medical Equipment PCB
2.50mm 0.098 inch Horizontal DIP With K Wafer Socekt for Medical Equipment PCB
Product Specifications
Current Rating3 Amp
Insulator Resistance5000 Megohms Min
Dielectric WithstandingAC 1000 V
No. of Positions2-20Pin
OrientationHorizontal
Contact MaterialCopper Alloy
Insulator MaterialOptional: PBT,PA6T,PA9
Flame RatingUL 94V-0
Plating OptionTin
Insulator HighOptional
Product Description
Our 2.50mm Pitch Wafer Connector is an industrial-grade interconnect solution specifically designed for PLC modules, industrial sensors, and robotic control systems. The 0.098-inch pitch provides a compact yet robust wire-to-board interface, ensuring stable signal transmission in high-density PCB environments. Available in both vertical and right-angle DIP configurations, it offers engineers maximum flexibility for internal wiring in narrow enclosures or stacked board designs. Featuring a polarized friction-lock mechanism, this wafer header guarantees secure mating under mechanical vibration, making it the preferred choice for OEM/ODM manufacturers of automated machinery.
Key Features
- 0.098" (2.5mm) pitch for standard PCB layouts
- Customize pins, pitch,height,length
- Compliance with REACH, ISO, RoHS
- High Signal Integrity: Precision-engineered contacts provide reliable electrical performance for high-speed signal and data transmission.
- Fully automated production for consistent quality
- 100% CCD visual inspection to ensure defect-free products
