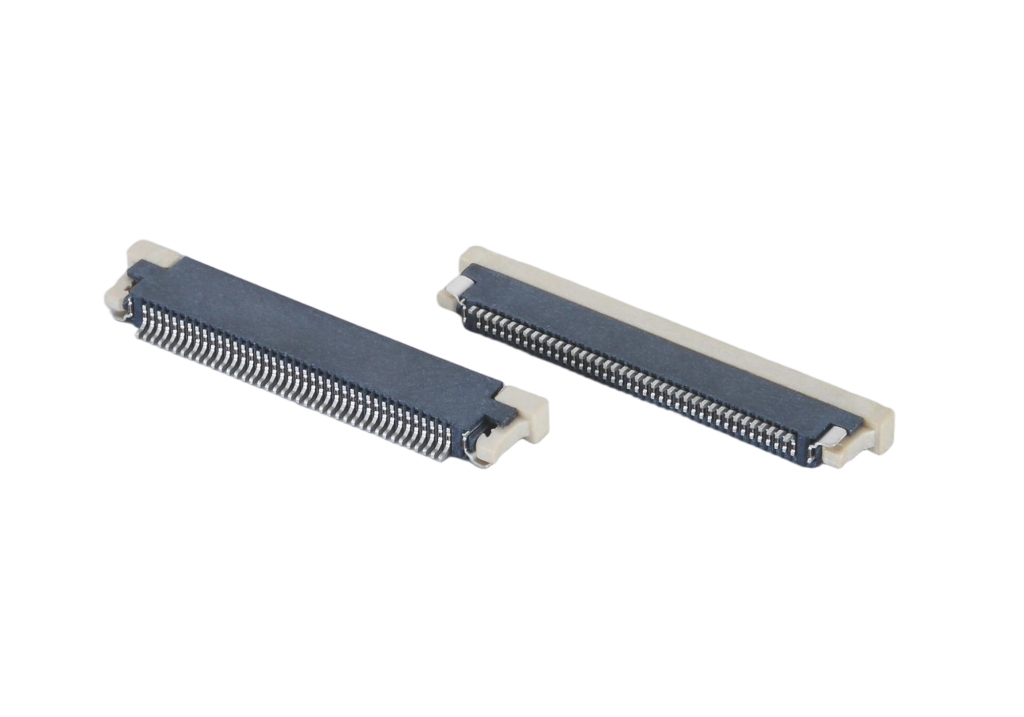

1.0mm 0.040in SMD Push Pull Bottom Touch Steering Wheel Switch FPC Connector

The 1.0 mm (0.040 in) SMD FPC Connector is designed to deliver reliable and stable board-to-FPC interconnections for compact and mid-density electronic systems. With a balanced pitch size, this connector offers an excellent combination of space efficiency, ease of handling, and dependable electrical performance, making it suitable for both consumer and industrial applications.

Featuring a surface-mount (SMD) structure, the connector supports automated pick-and-place assembly and standard reflow soldering processes, improving manufacturing efficiency and consistency. Its low-profile design helps reduce overall product height while maintaining strong mechanical retention on the PCB. The housing is made from high-temperature, flame-retardant thermoplastic to ensure dimensional stability and durability during soldering and long-term operation.

High-precision copper alloy contacts are plated to provide low contact resistance, reliable conductivity, and stable signal transmission. The connector is compatible with standard FPC cables and is available with secure locking mechanisms to prevent accidental disengagement. Polarized and alignment features ensure correct insertion, reducing assembly errors and enhancing system reliability.

The 1.0 mm SMD FPC Connector is widely used in LCD modules, printers, industrial control systems, consumer electronics, and communication equipment where compact size and dependable performance are required.

Key Features

• 0.040" (1.0mm) pitch for standard PCB layouts
• .008" (0.2mm）square post contact system  mm) square post contact system
• Vertical and right-angle orientations available
• Fully automated production for consistent quality
• 100% CCD visual inspection to ensure defect-free products
• Multiple plating options to enhance durability and conductivity
