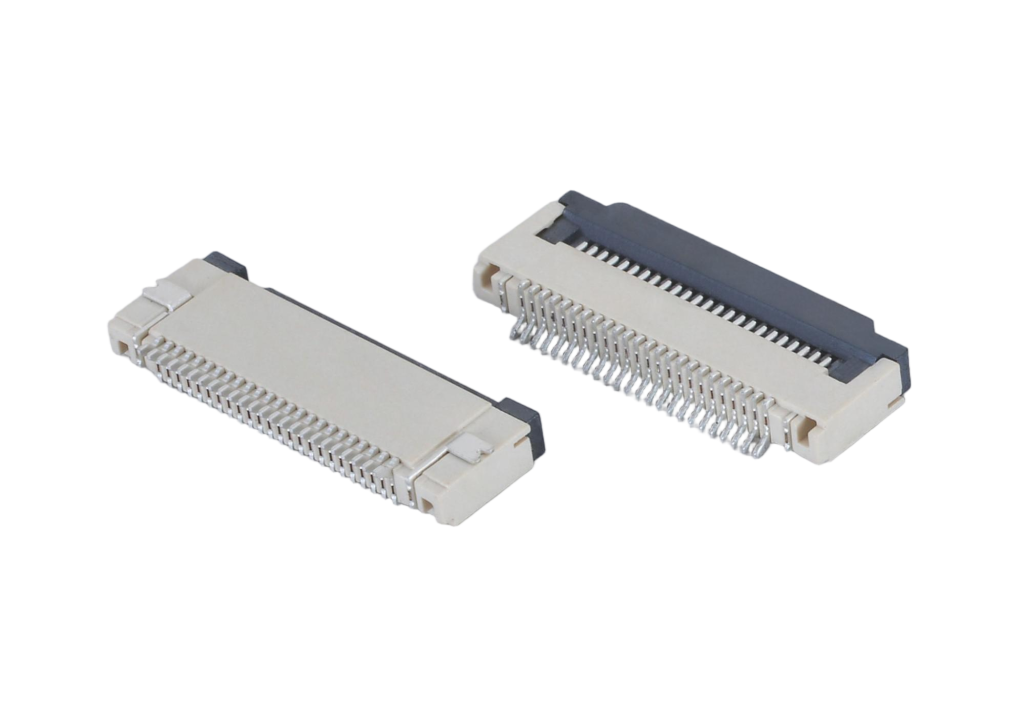

0.5mm 0.020in SMD Infotainment Display Front Flip Lock FPC Connector

The 0.5 mm (0.020 in) SMD FPC Connector is designed to provide reliable and space-efficient board-to-FPC interconnections for compact electronic devices. With its fine-pitch structure, this connector supports high-density signal transmission while optimizing PCB layout, making it ideal for modern consumer electronics and industrial miniaturized systems.

Featuring a surface-mount (SMD) design, the connector is compatible with automated pick-and-place assembly and standard reflow soldering processes. Its low-profile construction helps reduce overall device thickness while maintaining strong mechanical stability. The housing is manufactured from high-temperature, flame-retardant thermoplastic to ensure dimensional accuracy and durability under thermal stress.

Precision copper alloy contacts are plated to deliver low contact resistance, stable electrical performance, and excellent signal integrity. The connector is compatible with standard FPC cables and is available with secure locking mechanisms to prevent accidental disengagement and improve connection reliability. Polarization and alignment features ensure correct insertion, reducing assembly errors and improving production efficiency.

The 0.5 mm SMD FPC Connector is widely used in smartphones, tablets, laptops, display modules, cameras, wearable devices, and other compact electronics where reliable performance, high density, and efficient space utilization are essential.

Key Features

• 0.020" (0.5mm) pitch for standard PCB layouts
• .008" (0.2mm）square post contact system  mm) square post contact system
• Vertical and right-angle orientations available
• Fully automated production for consistent quality
• 100% CCD visual inspection to ensure defect-free products
• Multiple plating options to enhance durability and conductivity
