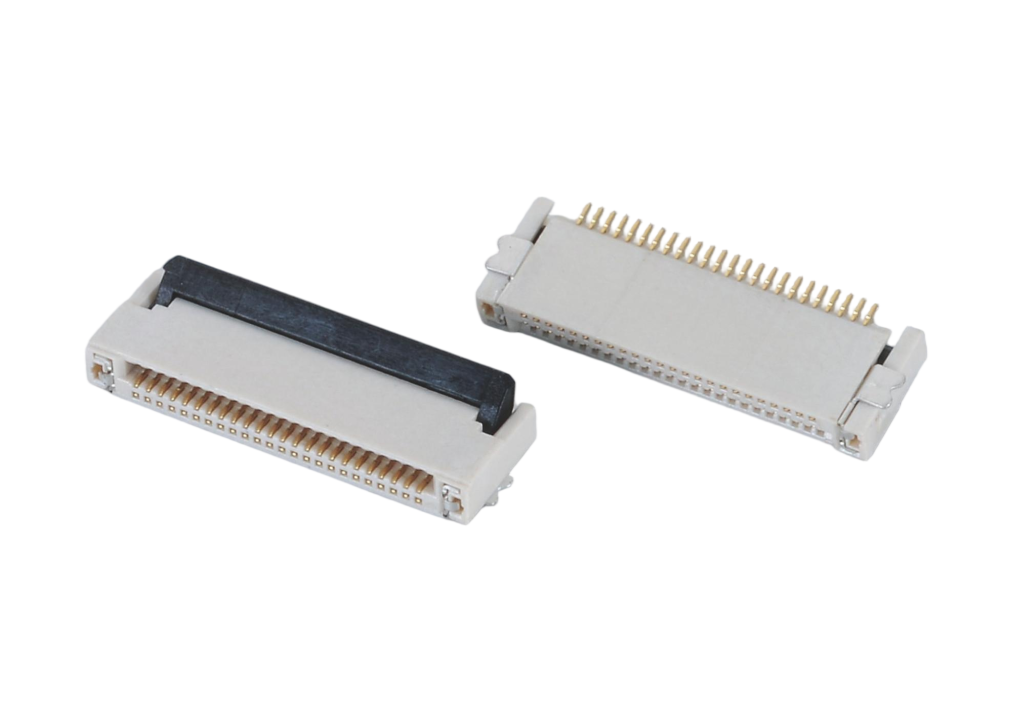

0.5mm 0.02inch Pitch Height 2.0mm SMD FPC Socket Front Insert Back Flip-lock Type for Digital Cameras

0.5mm 0.02inch Pitch Height 2.0mm SMD FPC Socket Front Insert Back Flip-lock Type for Digital Cameras

0.5mm 0.02inch Pitch Height 2.0mm SMD FPC Socket Front Insert Back Flip-lock Type for Digital Cameras
Send Inquiry

Product Specifications

Current Rating0.5A AC/DC
Contact resistance30m Max
Withstanding voltage200ＶAC/minute
No. of Positions4-68Pin
Insertion DirectionFront Insertion
Contact MaterialCopper Alloy
Insulator MaterialOptional: PA6T,PA9,LCP
Flame RatingUL 94V-0
Plating OptionTin
Insulator HighOptional

Product Description

YYE’s 0.5mm-pitch, 2.0mm-height front-insertion back-flip FPC connector is engineered for high-density electronic packaging.
Featuring a back-flip (actuator) locking mechanism, this YYE-manufactured connector delivers a secure, vibration-resistant connection while enabling effortless cable insertion. Its low-profile 2.0mm form factor makes it ideal for space-constrained applications—including handheld devices, medical equipment, and automotive displays.
Constructed from high-temperature LCP plastic with gold-plated contacts, this YYE-produced connector ensures superior signal integrity and long-term durability, and is fully compatible with Surface Mount Technology (SMT) assembly.

Key Features

  • 0.02" (0.50mm) pitch for standard PCB layouts
  • Customize pins, pitch,height,length
  • Compliance with REACH, ISO, RoHS
  • High Signal Integrity: Precision-engineered contacts provide reliable electrical performance for high-speed signal and data transmission.
  • Fully automated production for consistent quality
  • 100% CCD visual inspection to ensure defect-free products

Related Products

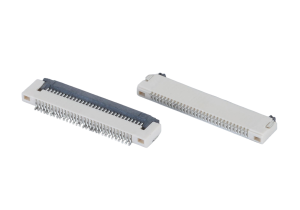

0.5 mm 0.02inch Pitch Height 1.5mm SMD Front Flip-lock FPC for ultra-thin tablets
