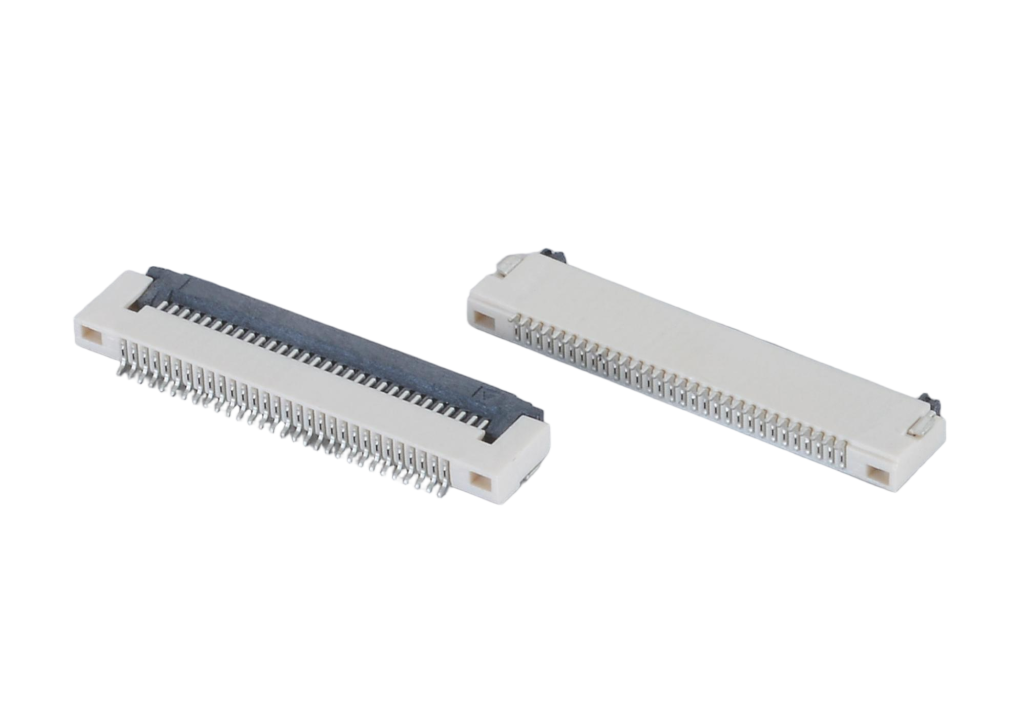

0.5 mm 0.02inch Pitch Height 1.5mm SMD Front Flip-lock FPC for ultra-thin tablets

0.5 mm 0.02inch Pitch Height 1.5mm SMD Front Flip-lock FPC for ultra-thin tablets

0.5 mm 0.02inch Pitch Height 1.5mm SMD Front Flip-lock FPC for ultra-thin tablets
Send Inquiry

Product Specifications

Current Rating0.5A AC/DC
Contact resistance30m Max
Withstanding voltage200ＶAC/minute
No. of Positions4-68Pin
Contact PositionBottom Contact
Contact MaterialCopper Alloy
Insulator MaterialOptional: PA6T,PA9,LCP
Flame RatingUL 94V-0
Plating OptionTin
Insulator HighOptional

Product Description

YYE’s 0.5mm-pitch, 1.0mm-height front flip-lock FPC connector is a high-performance interconnect solution engineered for ultra-compact electronic applications.
Featuring a front flip (actuator) ZIF (Zero Insertion Force) structure, it delivers an intuitive, secure locking mechanism for flexible printed circuits. Boasting an ultra-low 1.0mm profile, this connector minimizes vertical PCB footprint—making it the top choice for engineers designing slim smartphones, tablets, and medical wearables. Gold-plated contacts ensure low electrical resistance and long-term reliable performance even in demanding operating environments.

Key Features

  • 0.02" (0.50mm) pitch for standard PCB layouts
  • Customize pins, pitch,height,length
  • Compliance with REACH, ISO, RoHS
  • High Signal Integrity: Precision-engineered contacts provide reliable electrical performance for high-speed signal and data transmission.
  • Fully automated production for consistent quality
  • 100% CCD visual inspection to ensure defect-free products

Related Products

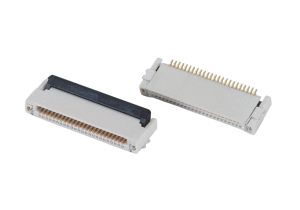

0.5mm 0.02inch Pitch Height 2.0mm SMD FPC Socket Front Insert Back Flip-lock Type for Digital Cameras
