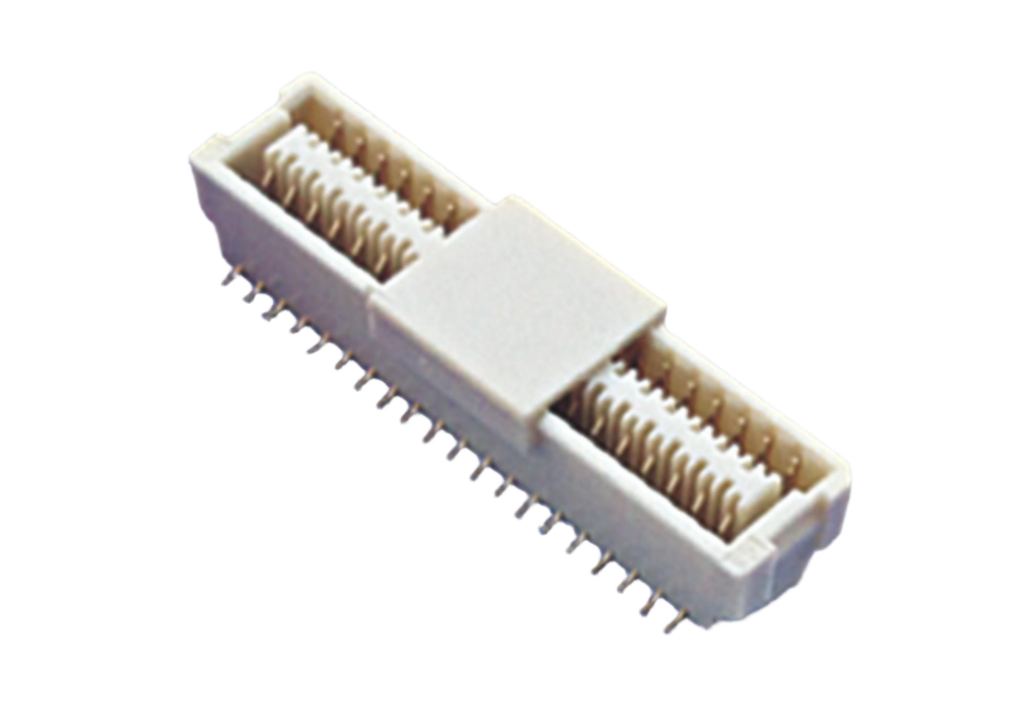

Precision 1.25mm 0.049 inch Vertical SMD Top Entry Wafer Socket for Industrial Control Board modules
Precision 1.25mm 0.049 inch Vertical SMD Top Entry Wafer Socket for Industrial Control Board modules
Product Specifications
Current Rating3 Amp
Insulator Resistance5000 Megohms Min
Dielectric WithstandingAC 1000 V
No. of Positions2-30Pin
OrientationVertical
Contact MaterialCopper Alloy
Insulator MaterialOptional: PBT,PA6T,PA9
Flame RatingUL 94V-0
Plating OptionTin, Gold,
Insulator HighOptional
Product Description
The 1.25mm Pitch SMT Wafer Connector is a versatile and compact wire-to-board solution designed for high-density electronic assemblies. With a specialized 1.25mm (0.049") pitch, this vertical SMT header offers the perfect balance between miniature size and robust mechanical performance for smart home devices, portable medical tools, and industrial controllers. The integrated top friction lock provides a secure connection that withstands vibration, making it ideal for drones and automotive electronics. Engineered for automated high-volume production, its heat-resistant housing is fully compatible with reflow soldering processes, ensuring a reliable interface for high-performance consumer electronics.
Key Features
- 0.049" (1.25mm) pitch for standard PCB layouts
- Customize pins, pitch,height,length
- Compliance with REACH, ISO, RoHS
- High Signal Integrity: Precision-engineered contacts provide reliable electrical performance for high-speed signal and data transmission.
- Fully automated production for consistent quality
- 100% CCD visual inspection to ensure defect-free products
