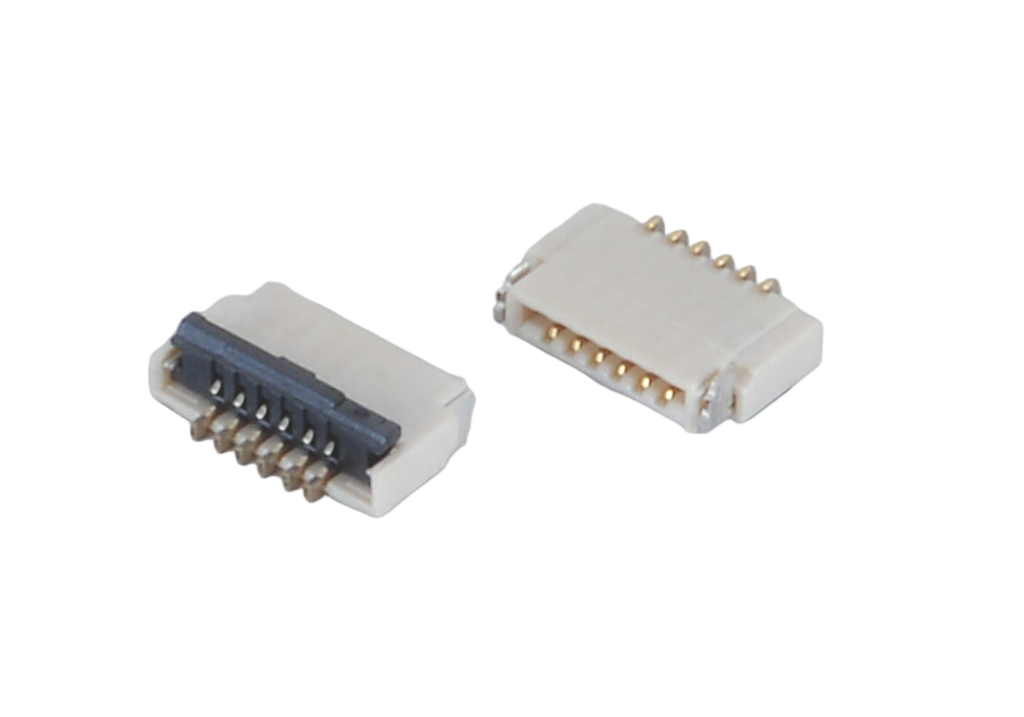

Precision FPC 0.5mm 0.02 inch Pitch Height 1.0mm SMD Front Insert Back Flip-lock for micro-display interfaces
Precision FPC 0.5mm 0.02 inch Pitch Height 1.0mm SMD Front Insert Back Flip-lock for micro-display interfaces
Product Specifications
Current Rating0.5A AC/DC
Contact resistance30m Max
Withstanding voltage200ＶAC/minute
No. of Positions4-68Pin
Contact PositionBottom Contact
Contact MaterialCopper Alloy
Insulator MaterialLCP
Flame RatingUL 94V-0
Plating OptionTin
Insulator HighOptional
Product Description
The 0.5 mm (0.02”) pitch, 1.0 mm height SMD FPC connector is a high-density interconnect solution engineered for ultra-thin electronic devices. It features a back flip-lock (actuator) design that enables easy front insertion of FPC/FFC cables while providing a secure, vibration-resistant mechanical lock from the rear.
With an ultra-low 1.0 mm mounting height, this connector is an ideal choice for compact PCB designs where space savings are critical. Gold-plated contacts ensure excellent signal integrity, low contact resistance, and long-term reliability in high-performance applications.
This connector is well suited for smartphones, smartwatches, medical sensors, and other space-constrained electronic devices.
Key Features
- 0.02" (0.50mm) pitch for standard PCB layouts
- Customize pins, pitch,height,length
- Compliance with REACH, ISO, RoHS
- High Signal Integrity: Precision-engineered contacts provide reliable electrical performance for high-speed signal and data transmission.
- Fully automated production for consistent quality
- 100% CCD visual inspection to ensure defect-free products
