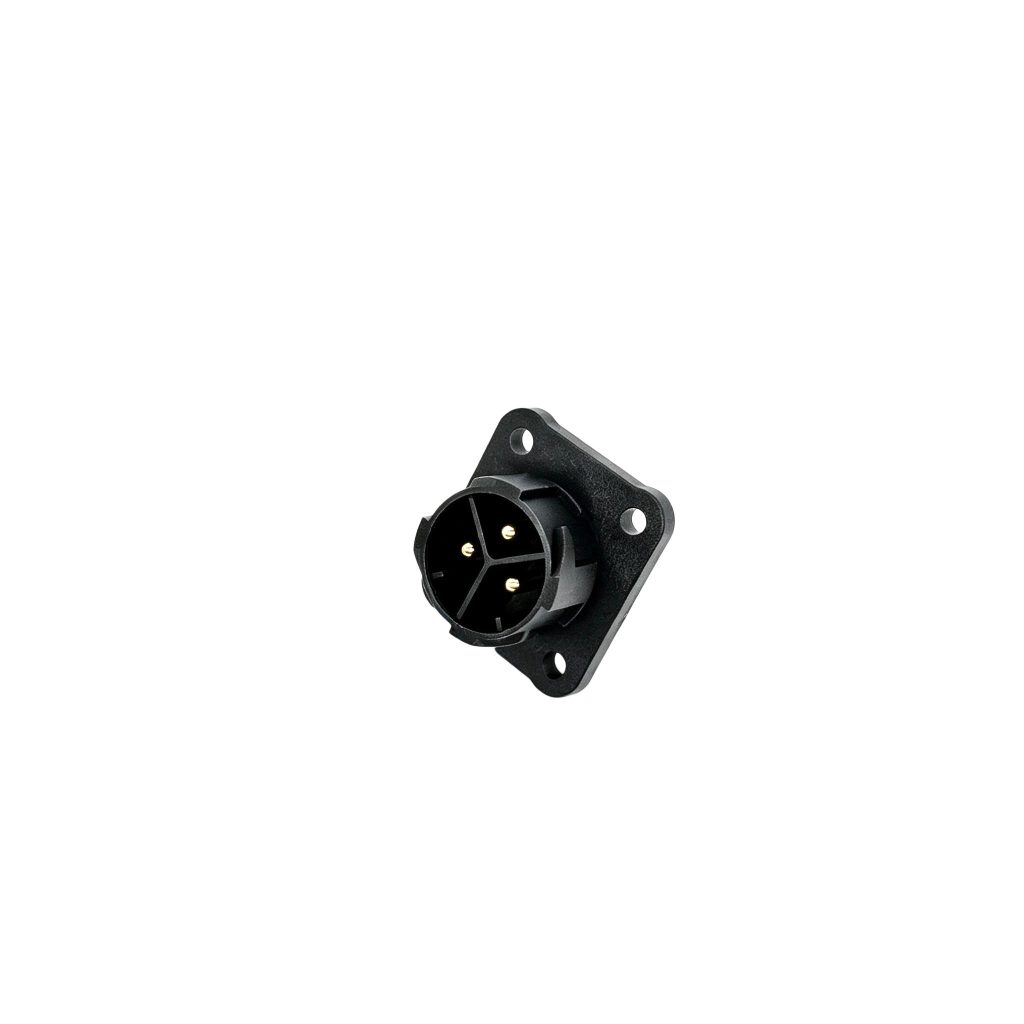

M25 3-Pin Flange Panel Mount Male Waterproof Connector for Outdoor LED Lighting, Industrial Automation, and Marine Power Systems

The M25 3-Pin Flange Panel Mount Male Connector is a ruggedized, industrial-grade circular aviation plug engineered for high-reliability power and signal transmission in harsh environments. Featuring an integrated square flange base with pre-drilled screw holes, this connector easily mounts onto chassis enclosures, distribution boxes, or control panels to provide a secure, flush-mount connection interface.

Compatible Cable Types: This connector is typically paired internally with heavy-duty outdoor power cables, such as rubber-insulated cables (e.g., H07RN-F 3G1.5mm² / 3G2.5mm²) or UL-standard PVC/PUR multi-core jacketed wires. Its internal solder or screw terminals allow for a highly stable connection to Live, Neutral, and Ground lines.

Application Scenarios: Designed explicitly to shield critical wiring from moisture, dust, and environmental stressors, it is widely utilized for outdoor LED display screens, architectural landscape lighting networks, solar PV combiner boxes, industrial automation machinery control panels, and marine power equipment. When mated, it achieves an IP67/IP68 waterproof rating, ensuring long-term continuous operation without risk of electrical short circuits or corrosion.

Key Features

• Optimized with internal sealing rings to completely block out moisture, water submersion, dust, and debris.
• The 3-hole flange design allows solid, vibration-proof mechanical mounting directly onto control cabinets or device walls.
• Low contact resistance ensures high electrical conductivity, minimal voltage drop, and exceptional oxidation resistance over thousands of mating cycles.
• Molded from heavy-duty PA66 engineering plastic to withstand long-term outdoor sunlight exposure without cracking or degrading.
• The internal 3-pin configuration features raised plastic partitions to prevent electrical tracking, short circuits, or arc flashover during high-voltage loads.
