2.54mm(.100inch) Single Row Vertical Surface Mount SMD Height 8.5mm Female Header Socket High-Density PCB Docking
2.54mm(.100inch) Single Row Vertical Surface Mount SMD Height 8.5mm Female Header Socket High-Density PCB Docking
Product Specifications
Current Rating3 Amp
Insulator Resistance5000 Megohms Min
Dielectric WithstandingAC 1000 V
No. of Positions02 Pin-80 Pin
OrientationVertical
Contact MaterialCopper Alloy
Insulator MaterialOptional: PBT,PA6T,PA9
Flame RatingUL 94V-0
Plating OptionTin, Gold,
Insulator HeightOptional: 5.0mm
Product Description

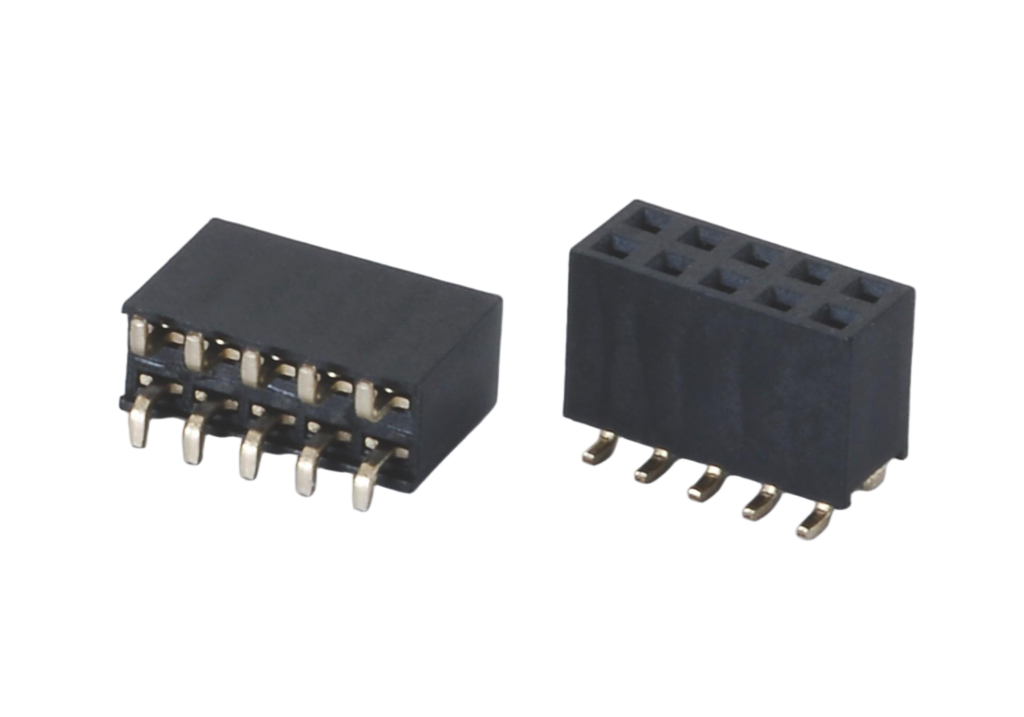

Designed for engineers who prioritize both space efficiency and structural integrity, our 8.5mm High-Profile Dual Row SMD Female Header offers a robust solution for mezzanine board stacking. Unlike standard headers, the 8.5mm body height provides the necessary clearance to mount smaller SMD components underneath the daughterboard, maximizing vertical space utilization in compact enclosures. This connector is optimized for high-speed automated SMT lines, featuring specialized gull-wing leads that ensure coplanarity and high solder joint strength.
Key Features
- 0.100" (2.54mm) pitch for standard PCB layouts
- Customize pins, pitch,height,length
- Compliance with REACH, ISO, RoHS
- Small footprint, high connection density
- Fully automated production for consistent quality
- 100% CCD visual inspection to ensure defect-free products
