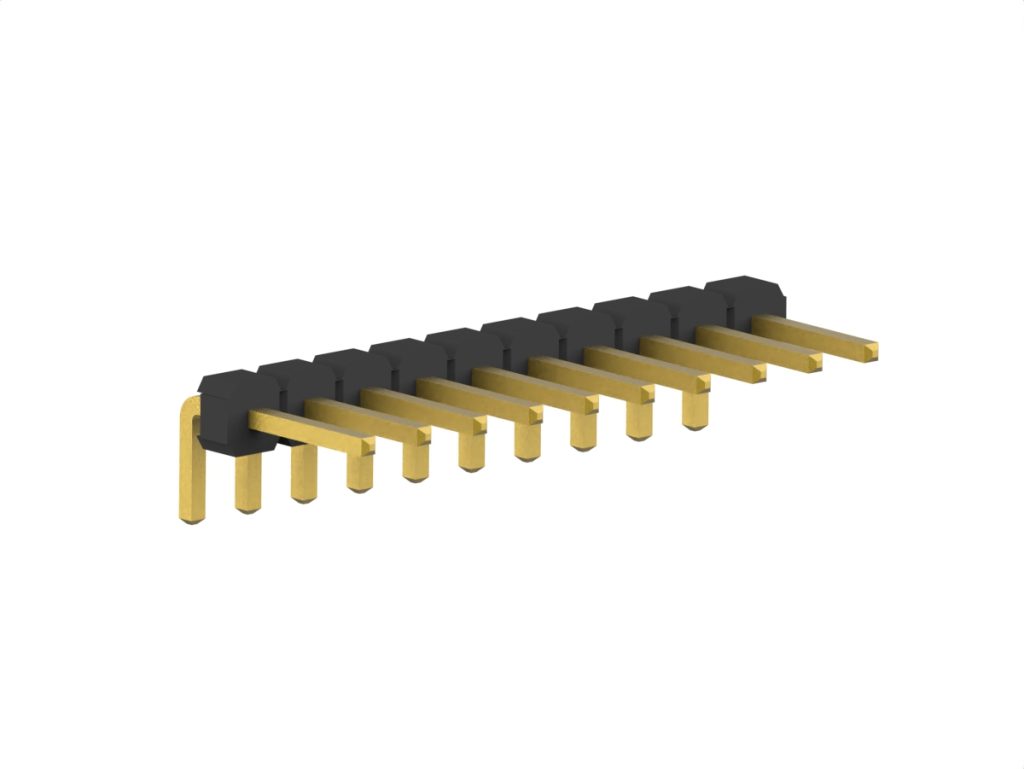

2.54mm(.100in)Pitch Pin Header Connectors, R/A
2.54mm(.100in)Pitch Pin Header Connectors, R/A
Product Specifications
Current Rating3 Amp
Insulator Resistance5000 Megohms Min.
Dielectric WithstandingAC 1000 V
No. of Positions01 Pin-40 Pin
Plating OptionTin, Gold,
OrientationRight Angle
Contact MaterialCopper Alloy
Insulator MaterialOptional：PBT, PA6T, PA9T
Flame RatingUL 94V-0
Insulator HeightOptional：1.5mm, 1.7mm, 2.0mm, 3.0mm
Product Description
Classic 0.100" Pitch PCB Header Strips provide reliable through-hole connections for a wide range of PCB applications. Featuring a .025" (0.635 mm) square post contact system, these headers are available in vertica2l and right-angle orientations, with flexible options for pin count, terminal length, and plating. Multiple design choices allow you to optimize cost and performance, making them ideal for industrial electronics and general-purpose PCB assemblies.
Key Features
- 0.100" (2.54 mm) pitch for standard PCB layouts
- .025" (0.635 mm) square post contact system
- Wide variety of pin counts and terminal lengths
- Fully automated production for consistent quality
- 100% CCD visual inspection to ensure defect-free products
- Multiple plating options to enhance durability and conductivity
