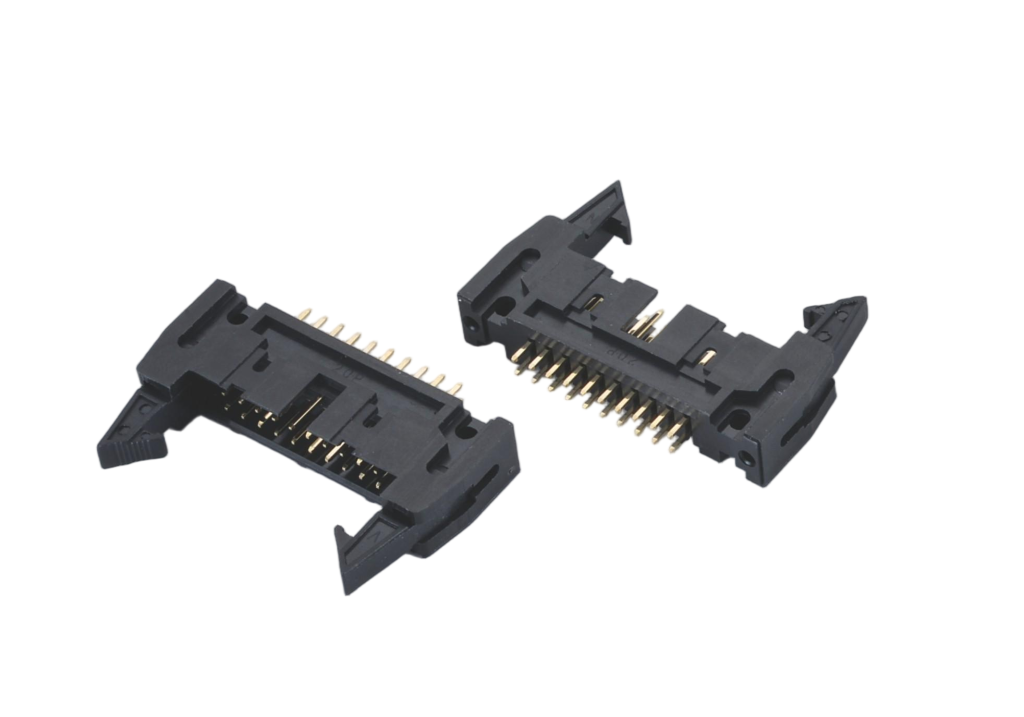

2.54mm 0.100in Dip Dual Row Box Header For Automotive Diagnostic Interface

The YYE 2.54mm (0.100in) Pitch Box Header Connector is a cornerstone interconnect solution designed for robust and reliable board-to-board or wire-to-board configurations. As a premier offering from Dongguan City Yuanyue Electronics Co., Ltd. (YYE), this industry-standard shrouded header provides a secure interface for ribbon cable transitions and internal PCB links, ensuring maximum electrical integrity in diverse industrial environments.

This connector series is engineered with a fully shrouded plastic housing that serves two critical purposes: protecting the precision-machined pins from physical damage and providing a foolproof polarization mechanism. By incorporating a central polarizing slot, it eliminates the risk of incorrect orientation when mating with female IDC sockets or housing connectors. The 2.54mm pitch is the global standard for versatility, offering the perfect balance between power handling and signal density for industrial automation, medical devices, and telecommunications infrastructure.

The standard box header series from YYE utilize high-quality, UL94V-0 rated thermoplastic insulators, ensuring superior flame retardancy and resistance to high-temperature soldering processes. Our contacts are typically crafted from high-conductivity copper alloys with gold or tin-lead plating options to maintain low contact resistance and prevent oxidation over the product's lifespan.

Key Features

• 0.100" (2.54mm) pitch for standard PCB layouts
• .006" (0.15mm）square post contact system  mm) square post contact system
• Vertical and right-angle orientations available
• Fully automated production for consistent quality
• 100% CCD visual inspection to ensure defect-free products
• Multiple plating options to enhance durability and conductivity
