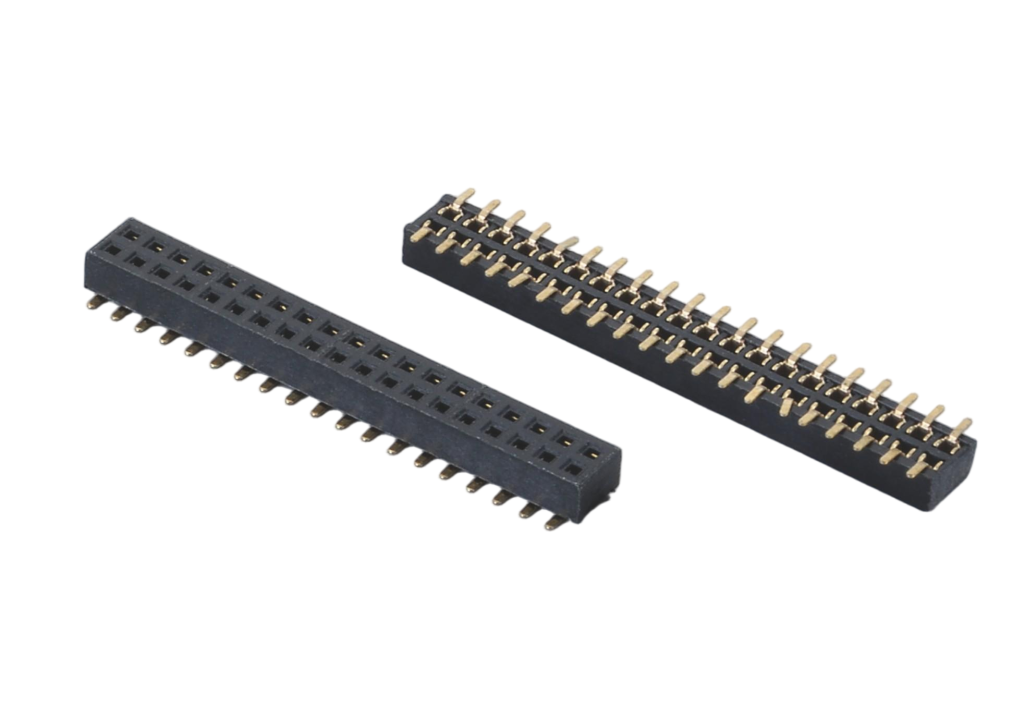

2.0mm 0.079in Female Header Connector for Electric Vehicle Battery Systems
2.0mm 0.079in Female Header Connector for Electric Vehicle Battery Systems
Product Specifications
Current Rating3 Amp
Insulator Resistance5000 Megohms Min.
Dielectric WithstandingAC 1000 V
No. of Positions01 Pin-40 Pin
Plating OptionTin Gold
Soldering Temperature260℃ for 3～5sec Max.
Contact MaterialCopper Alloy
Insulator MaterialPBT, PA6T, PA9T
Flame RatingUL 94V-0
Insulator HighOptional
Product Description
This 2.0mm (0.079in) PCB Female Header is designed to provide reliable and space-efficient receptacle connections for a wide range of board-level interconnection requirements. The moderate pitch offers a balance between compact design and mechanical robustness, making it suitable for signal and low-power applications.
Constructed with precision-engineered contact terminals and a durable insulating housing, the connector ensures secure mating, stable electrical performance, and consistent solderability during PCB assembly. It is commonly used in industrial control systems, consumer electronics, communication devices, and embedded applications requiring dependable and easy-to-integrate PCB socket connections.
Key Features
- 0.079" (2.0mm) pitch for standard PCB layouts
- .016" (0.4 mm) terminal contact system
- Vertical and right-angle orientations available
- Fully automated production for consistent quality
- 100% CCD visual inspection to ensure defect-free products
- Multiple plating options to enhance durability and conductivity
