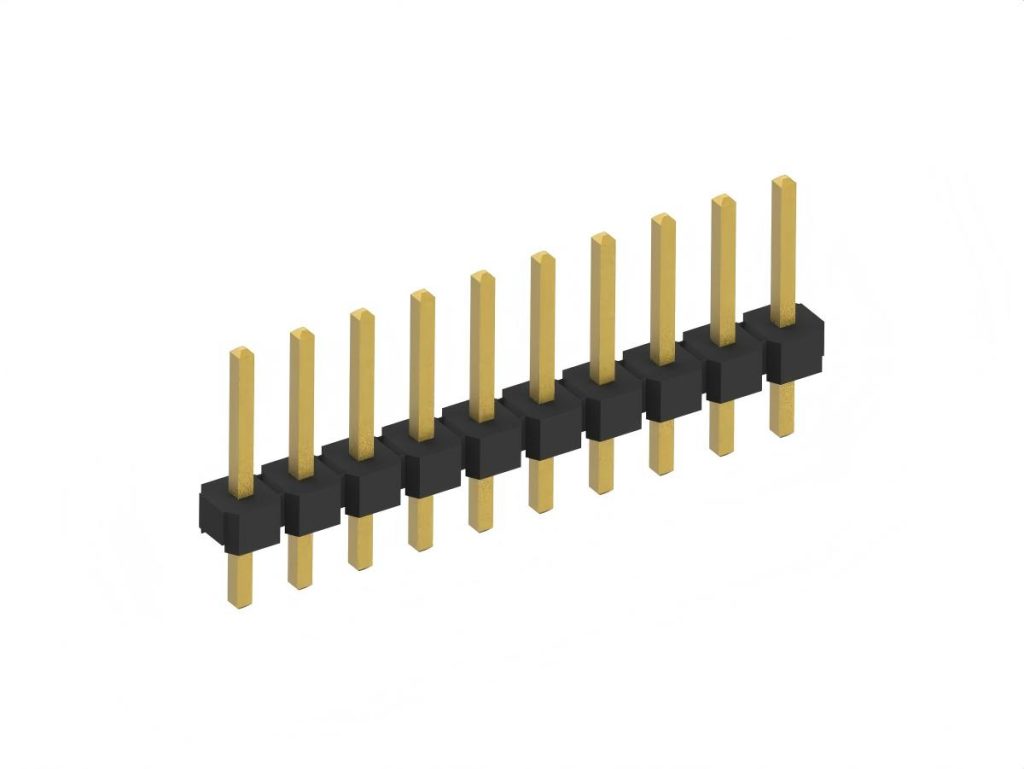

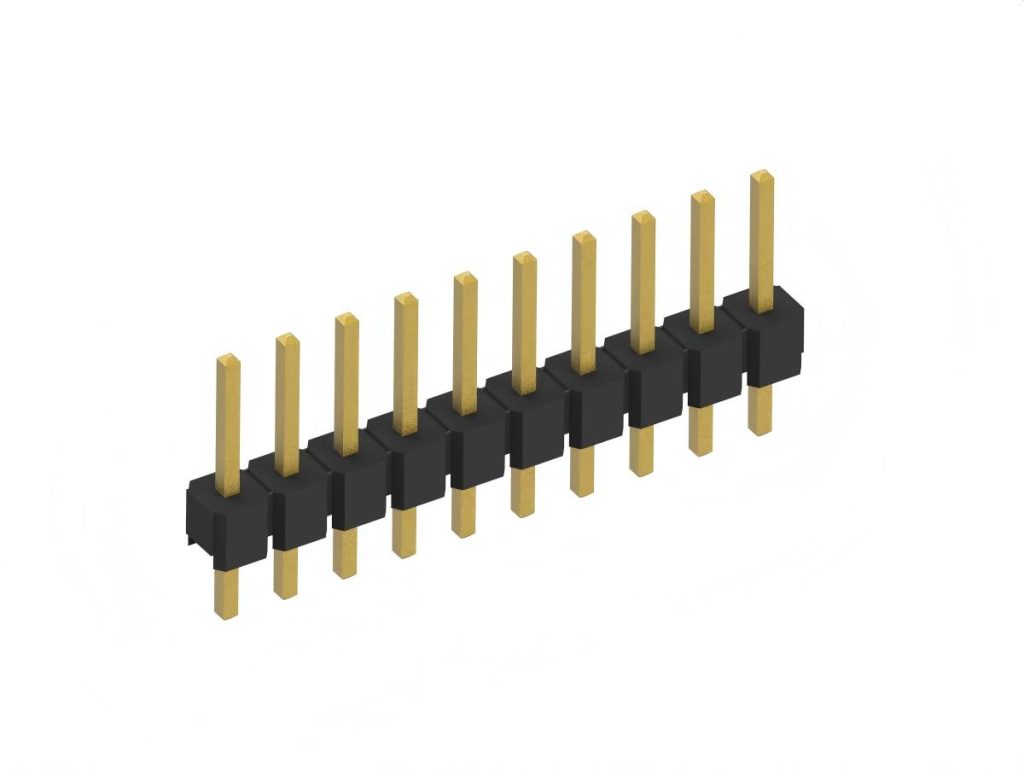

2.54mm(.100in)Pitch Pin Header Connectors, Vertical
2.54mm(.100in)Pitch Pin Header Connectors, Vertical
Product Specifications
Current Rating3 Amp
Insulator Resistance5000 Megohms Min.
Dielectric WithstandingAC 1000 V
No. of Positions01Pin-40Pin
Plating OptionTin, Gold,
OrientationVertical
Contact MaterialCopper Alloy
Insulator MaterialOptional：PBT, PA6T, PA9T
Flame RatingUL 94V-0
Insulator HeightOptional：1.5mm, 1.7mm, 2.0mm, 3.0mm
Product Description
Key Features
- 0.100" (2.54 mm) pitch for standard PCB layouts
- .025" (0.635 mm) square post contact system
- Wide variety of pin counts and terminal lengths
- Fully automated production for consistent quality
- 100% CCD visual inspection to ensure defect-free products
- Multiple plating options to enhance durability and conductivity
