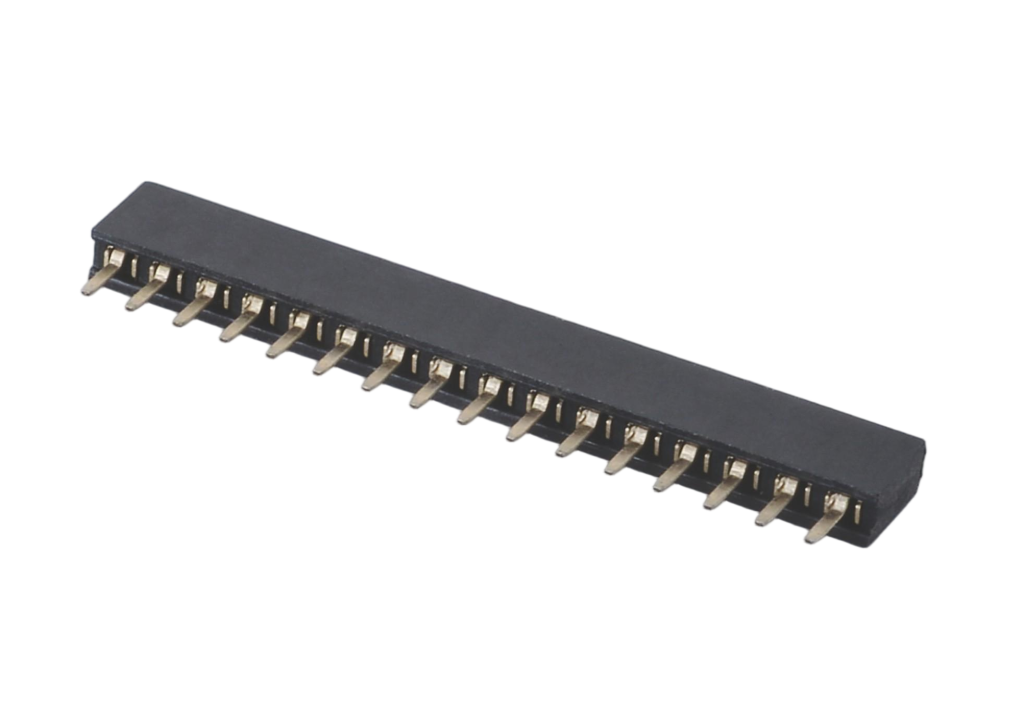

1.27mm Pitch Female Header 0.050″ High-Density Board-to-Board Connectors
1.27mm Pitch Female Header 0.050″ High-Density Board-to-Board Connectors
Product Specifications
Current Rating3 Amp
Insulator Resistance5000 Megohms Min.
Dielectric WithstandingAC 1000 V
No. of Positions01 Pin-40 Pin
Plating OptionTin Gold
Soldering Temperature260℃ for 3～5sec Max.
Contact MaterialCopper Alloy
Insulator MaterialPBT, PA6T, PA9T
Flame RatingUL 94V-0
Insulator High3.4mm & Optional
Product Description
This 1.27mm (0.050in) PCB Female Header is designed to provide secure and precise receptacle connections for fine-pitch board-level interconnect systems. Its compact socket structure supports high-density PCB layouts while ensuring accurate mating alignment and stable electrical contact.
Built with high-temperature insulating housing and precision contact terminals, the connector delivers reliable soldering performance and long-term durability under thermal cycling and vibration. It is widely used in industrial electronics, communication equipment, automotive modules, and embedded systems where space efficiency and connection reliability are essential.
Key Features
- 0.050" (1.27 mm) pitch for standard PCB layouts
- .016" (0.4 mm) terminal contact system
- Vertical and right-angle orientations available
- Fully automated production for consistent quality
- 100% CCD visual inspection to ensure defect-free products
- Multiple plating options to enhance durability and conductivity
