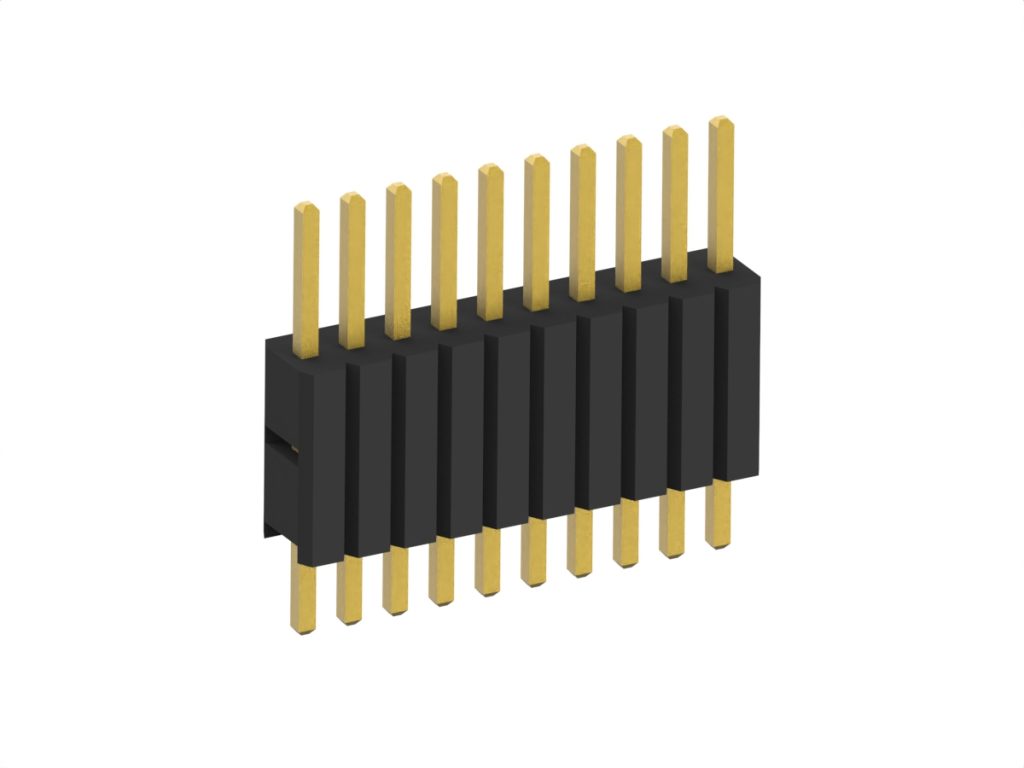

1.27mm 0.050in PCB Pin Header DIP Type Single Row
1.27mm 0.050in PCB Pin Header DIP Type Single Row
Product Specifications
Current Rating3 Amp
Insulator Resistance5000 Megohms Min.
Dielectric WithstandingAC 1000 V
No. of Positions01 Pin-40 Pin
Plating OptionTin Gold
Soldering Temperature260℃ for 3～5sec Max.
Contact MaterialCopper Alloy
Insulator MaterialPBT, PA6T, PA9T
Flame RatingUL 94V-0
Insulator HighOptional
Product Description
Key Features
- 0.050" (1.27 mm) pitch for standard PCB layouts
- .025" (0.635 mm) square post contact system
- Vertical and right-angle orientations available
- Fully automated production for consistent quality
- 100% CCD visual inspection to ensure defect-free products
- Multiple plating options to enhance durability and conductivity
